DRO System Manual Horizontal Facing Lathe Machine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

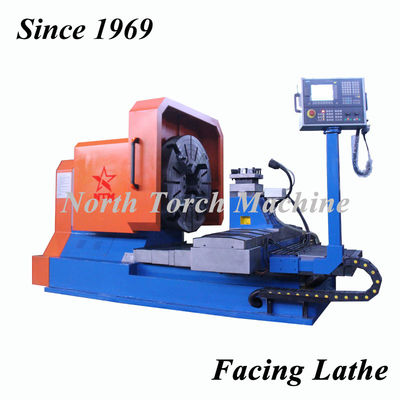

DRO System Manual Horizontal Facing Lathe Machine

DRO System Manual Horizontal Facing Lathe Machine
DRO System Manual Horizontal Facing Lathe Machine

Large Image :  DRO System Manual Horizontal Facing Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CW64125

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Vaccum Bag and Wooden Box Package
Delivery Time: 2 months
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per one year
Detailed Product Description
Horizontal Facing Cnc Lathe Function: Facing Turning Flange, Propeller, Impeller, Tyre Mold, Disc Plate Chip Chain Conveyor: Installing Automatic Chip Chain Conveyor
Metal Cover For Lathe Machine: Full Metal Cover For The Complete Lathe Machine Certificate: CE, EAC, SGS, BV,ISO9001
Package: Vaccum Bag + Wooden Box Package Or Pallet Machine Color: Painting According To Customer's Special Request
High Light:

Horizontal Facing Lathe Machine

,

DRO System Facing Lathe Machine

,

Disc Plate Facing Lathe Machine

China Professional Horizontal Facing Lathe Machine with DRO system, PLC control facing horizontal lathe
For Machining Truck Wheel Hub,Flange,Cylinders, Pipe Fitting, Tyre Mold, Propeller, Long Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc




1. Our Advantages in manufacturing horizontal cnc lathe, cnc machine, lathe machine, facing lathe, roll turning lathe, heavy duty lathe.

Our company most distinctive feature is : We are specialized in designing and making customized lathe machines according to work-piece features and customer special reqeust.

All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese NSK Bearing, ABB Motor& transmission box/gear box, etc. With more than 50 years' experience that our company was established in 1969 as a military enterprise. We are specialized in re-designing and manufacturing customized lathe machines per customer's special requests and demands. This is our special characteristics which makes us separate from other competitors.

EAC, CE, SGS, BV Certificates obtained about roll turning lathe, horizontal lathe, cnc lathe, facing lathe, conventinal lathe, vertical lathe

DRO System Manual Horizontal Facing Lathe Machine 0

1.) It can realize a lot of machining processes like screw thread, conical surface, curved surface, tapping, threading, taper,internal boring, etc.

2.) This lathe adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.

3.) This lathe consists of lathe bed, selective headstock, 4 positions vertical turrest, electric control system, lubrication system, and so on. we can also configurate the lathe according to customer's special request like 8 positions horizontal turret, etc

4.) The main shaft can realize stepless speed regulating in a range of 10~500r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.

5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.

Our Principle : Maximize Customer's Profitability under the minimum invest cost.

Application: This is a CNC horizontal roller lathe which is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.


2. Technical Parameters of horizontal cnc lathe, facing lathe, wheel turning lathe, roll lathe, conventional lathe

2D & 3D drawings about facing horizontal cnc lathe, flange turning lathe, wheel lathe, cnc lathe, conventional althe, lathe machine



DRO System Manual Horizontal Facing Lathe Machine 1

Specifications of Facing in Lathe
Name Unit CK64125 CK64160 CK61200 CK64250 CK64300
Swing Diameter over Machine Bed mm φ1250mm φ1600mm φ2000mm φ2500mm φ3000
Chuck Diameter mm φ1000mm φ1250mm φ1600mm φ2000mm φ2500mm
Chuck-jaw seat length mm Embedded Embedded 500mm 500mm 500mm
Work-piece Length mm 500mm 750mm 750mm 1000mm 1000mm
Work-piece Weight T 2T 2T 3T 3T 5T
Spindle Diameter mm φ190mm φ200mm φ220mm φ220mm φ260mm
Spindle Speed r/min 10-200 r/min 4-160 r/min 4-160 r/min 3-106 r/min 3-106 r/min
X Axis Stroke mm 625mm 800mm` 1000mm 1250mm 1500mm
Z Axis Stroke mm 500mm 750mm 1000mm 1000mm 1000mm
X Axis Rapid Feed Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min
Z Axis Rapid Feed Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min
Cutting Tool Carriage Size   240*240 280*280 300*300 300*300 300*300
Cutting Tool Shank Size mm 32*32mm 40*40mm 40*40mm 40*40mm 40*40mm
Feed Control   Servo Motor Servo Motor Servo Motor Servo Motor Servo Motor
Motor Parameters
Main Motor Power KW 15KW 18.5KW 18.5KW 22KW 37KW
Feed Motor of Z Axis KW 2.3KW 2.3KW 2.3KW 2.3KW 2.3KW
Feed Motor of X Axis KW 2.3KW 5.5KW 5.5KW 5.5KW 5.5KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.37KW 0.55KW 0.55KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Flatness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions mm 3180*1910*1870 3940*1980*1900 4190*2670*2450 4250*2770*2800 4400*3300*3300
Machine Weight T 6T 9.5T 11T 12.5T 15T


DRO System Manual Horizontal Facing Lathe Machine 2

Remarks:

1. The above 5 models of Horizontal Lathe Machine, facing cnc lathe, lathe machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features.

2. This series horizontal Lathe Machine have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.

3. After-sale Service and Maitenance of facing cnc lathe,horizontal lathe, flange turning lathe, conventional lathe, manual facing lathe

Vaccum Bag Package + Wooden Box Package



1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.

For more details, please feel free to contact us. Thanks!
