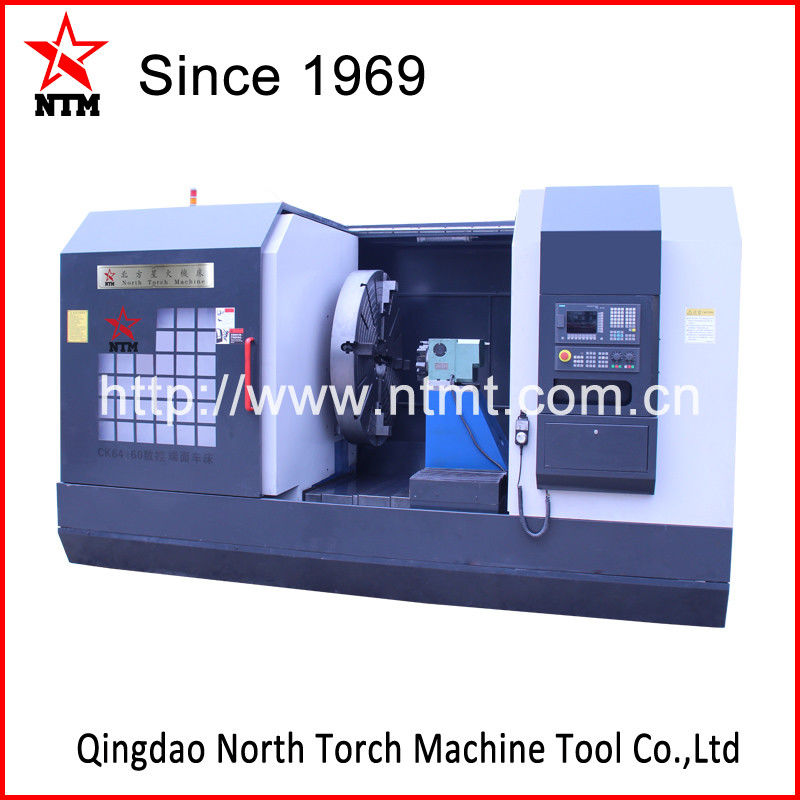

Horizontal High Strength CNC Facing In Lathe Machine

Horizontal High Strength CNC Facing In Lathe Machine
Horizontal High Strength CNC Facing In Lathe Machine

Large Image :  Horizontal High Strength CNC Facing In Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: North Torch Machine
Certification: CE, EAC, ISO9001, BV, SGS
Model Number: CK64125

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden Box Package
Delivery Time: 3 months
Payment Terms: T/T, L/C
Supply Ability: 200 sets per one year
Detailed Product Description
Facing CNC Lathe, Horizontal Lathe: Used For Turning Boring Pipe Adapter, Break Hammer Max.Swing Diameter Over Machine Bed: 1250 Mm
Max.Length Of Work-piece: 500-1000 Mm Chip Removal System: Chip Conveyor
Machine Quality Warranty: 2 Years Quality Warranty Metal Cover For Lathe Machine: Full Metal Cover For Lathe Machine
High Light:

CNC Facing In Lathe Machine


Horizontal Facing In Lathe Machine


1000mm CNC Lathe Machine



China Professional Facing CNC Lathe with boring bar attachment for turning boring pipe adapter, break hammer, shaft, etc





Facing CNC Lathe Machine Features:


This series Horizontal Facing CNC Lathe with boring bar attachment can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, Aluminum Mold, Tyre Mold, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.


It is widely used for machining various metal parts like tyre mold, Flange, wheel, shipyard propeller, cylinder body, pump body, impeller, turbine, and other disc parts.


1. All castings are made of high-strength meehanite HT250.


2. The lathe is in one-piece structure and made of meehanite, greatly enhancing its abrasion resistance, and the internal force elimination process produces high vibration resistance and considerably enhances stability.


3. The Spindle of Head-stock adopts grinding process, spindle bearings are all high-precision bearings, The gear material is 40 Cr forged material, according to GB standard, the gears are quenching to improve the accuracy of grinding teeth. Large enough ring gear and matching gear through the helical surface contact bite, to ensure that the spindle box has sufficient machine torque, helical bite-tooth contact characteristics of the whole tooth surface to ensure the stability of the gear and ensure that machine tool transmission ratio, which makes the machine has smaller noise.


4. This facing cnc lathe can be installed a boring bar attachment to realize both turning and boring processes, in this way, the customer saves input cost and improve the machining effiency.


Our Advantages:


1. we have our own foundry which control the quality very well from the raw material of facing CNC Lathe to the machining process.


2. We have professional equipments and lathe machines to realize machining process and inspection of facing cnc lathe,horizontal lathe machine. like quenching/hardening furnace, 18 meter CNC gantry grinding machine, cnc gantry milling machine, CNC boring Machine, ultrasonic fault detector, etc


3. For every new lathe machine, we have one complete both 2D and 3D drawings. We have professional designing team to serve the customers about lathe machine design and after-sale service.


4. This series facing  cnc lathe machine can be also designed into a kind of conventional facing lathe with DRO or PLC control system. which obtained our national patent. we install a kind of manual pulse generator for conventional manual facing lathe machine.



Technical Parameters of Facing CNC Lathe



Specifications of End Facing CNC Lathe, Horizontal Lathe Machine
Name Unit CK64125 CK64160 CK64200 CK64250 CK64300
Swing Diameter over Machine Bed mm φ1250mm φ1600mm φ2000mm φ2500mm φ3000
Chuck Diameter mm φ1000mm φ1250mm φ1600mm φ2000mm φ2500mm
Chuck-jaw seat length mm Embedded Embedded 500mm 500mm 500mm
Work-piece Length mm 500mm 750mm 750mm 1000mm 1000mm
Work-piece Weight T 2T 2T 3T 3T 5T
Spindle Diameter mm φ190mm φ200mm φ220mm φ220mm φ260mm
Spindle Speed r/min 10-200 r/min 4-160 r/min 4-160 r/min 3-106 r/min 3-106 r/min
X Axis Stroke mm 625mm 800mm` 1000mm 1250mm 1500mm
Z Axis Stroke mm 500mm 750mm 1000mm 1000mm 1000mm
X Axis Rapid Feed Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min
Z Axis Rapid Feed Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min
Cutting Tool Carriage Size   240*240 280*280 300*300 300*300 300*300
Cutting Tool Shank Size mm 32*32mm 40*40mm 40*40mm 40*40mm 40*40mm
Feed Control / Servo motor Servo motor Servo motor Servo motor Servo motor


Main Motor Power

Kw 15KW 18.5KW 18.5KW 22KW 37KW
Machine Dimensions mm 3180*1910*1870 3940*1980*1900 4190*2670*2450 4250*2770*2800 4400*3300*3300
Machine Weight mm





11T 12.5T 15T




The above technical parameters are the standard configurations, we can also specially designed customized facing cnc lathe according to the special request and work-piece features.  which can help customer own the best performance facing CNC Lathe with best competitive price.



Facing CNC Lathe Machine accessories and options:


1. 4 jaws chuck or 3 jaws self-centering chucks, all are available per customer's request and demands


2. Chuck cover or full metal cover for facing cnc lathe, semi-metal cover for horizontal lathe are optional


3. Chip Removal System, Chip conveyor are optional also


4. Boring Bar Attachment , milling/drilling head unit / grinding wheel are all available to be installed on the lathe machne.



For other more details, please feel free to contact me.


Thank you.


Best Regards



Tag: Facing CNC Lathe, Horizontal Lathe, CNC Lathe Machine, Conventional Type , Heavy duty horizontal lathe, roll turning lathe
