Payment & Shipping Terms:
|Machining Process Of Lathe Machine:||End Facing, Surface, Tapper, Ex-circle, Threading, Inner Hole Etc||Accessories:||Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc|
|Chip Removal System:||Chain Type Automatic Chip Removal System||Lathe After-sale Service:||Engineers Are Available For Machine Installation And Commissioning|
|Certificate:||CE,SGS, EAC, CE, ISO9001, Etc||Voltage:||Customer's Requirement,220V/380V,400V,440V|
|Application Of Facing Lathe Machine:||Machining Flange, Tyre Mold, Propeller, Bearing,||Lathe Machine Condition:||New Manufacture With High Quality|
precision metal lathe,
steel lathe machine,

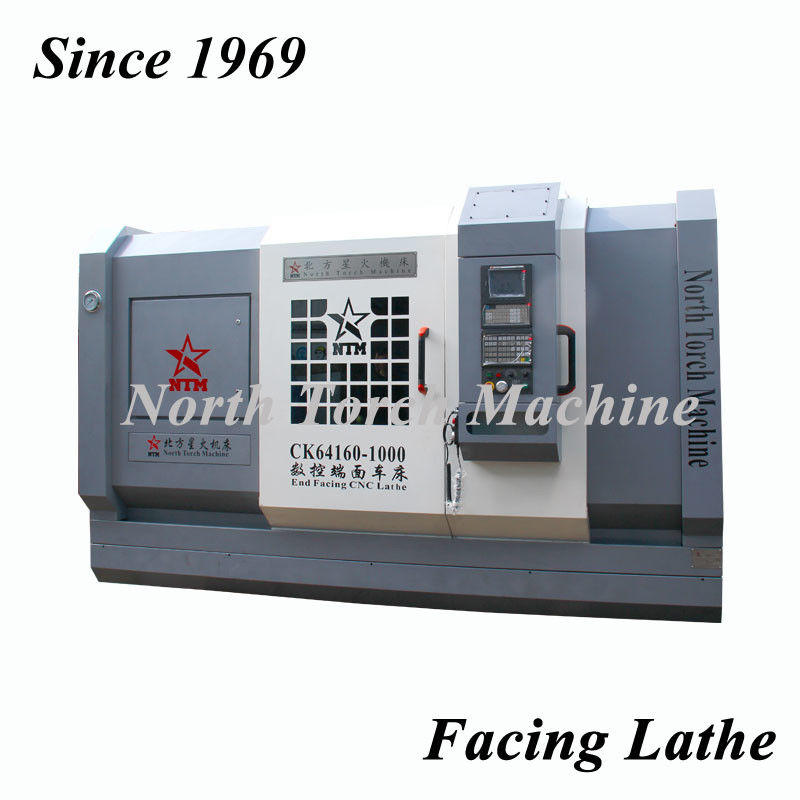

Horizontal Facing In CNC Lathe
Horizontal Turret Facing in Lathe Machine, Flange Lathe
The facing in lathe and all of our other horizontal lathe machines are in one-piece structure and made of meehanite, greatly enhancing its abrasion resistance, and the internal force elimination process produces high vibration resistance and considerably enhances stability. The cross-shaped base and rectangular bearing structure ensure high structural stability and permanently stable quality.
We have our own foundry and professional equipment for castings , such as hardening furnace used for do quenching heat treatment for castings parts. We also have professional inspection equipment such as laser detector, horizontal calibrator, etc . All of our lathe machine guide rails are ground by professional large CNC Grinding Machine. All those equipments guarantee our lathe machine has a high stability, accuracy and rigidity.
Application of Facing In Lathe, Flange Lathe, Horizontal Lathe:
Face CNC Lathe Machine or landing lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.
Our Special Advantages:
1. More than 50 years' experience in machinery industry since 1960s.
2. Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
3. Base adopts triangular guide design
4. Reasonable structure
5. High performance with low cost
6. We have our own foundry which can control the quality strictly.
7. All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
8. Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
9. We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.
2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Facing In Lathe
|Specifications of Facing in Lathe|
|Swing Diameter over Machine Bed||mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm||φ3000|
|Chuck-jaw seat length||mm||Embedded||Embedded||500mm||500mm||500mm|
|Spindle Speed||r/min||10-200 r/min||4-160 r/min||4-160 r/min||3-106 r/min||3-106 r/min|
|X Axis Stroke||mm||625mm||800mm`||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||500mm||750mm||1000mm||1000mm||1000mm|
|X Axis Rapid Feed Speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min|
|Z Axis Rapid Feed Speed||mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min|
|Cutting Tool Carriage Size||240*240||280*280||300*300||300*300||300*300|
|Cutting Tool Shank Size||mm||32*32mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Feed Control||Servo Motor||Servo Motor||Servo Motor||Servo Motor||Servo Motor|
|Main Motor Power||KW||15KW||18.5KW||18.5KW||22KW||37KW|
|Feed Motor of Z Axis||KW||2.3KW||2.3KW||2.3KW||2.3KW||2.3KW|
|Feed Motor of X Axis||KW||2.3KW||5.5KW||5.5KW||5.5KW||5.5KW|
|Lubrication Motor Power||KW||0.37KW||0.37KW||0.37KW||0.55KW||0.55KW|
Contact Person: Anna Sun
Machining Process of Lathe Machine: End Facing, Surface, tapper, ex-circle, threading, inner hole etc
Accessories: Metal Cover for lathe machine, chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc
Chip Removal System: Chain Type Automatic Chip Removal System
Lathe After-sale Service: Engineers are available for machine installation and commissioning
