Embedded Milling 2500mm Horizontal Turning Lathe

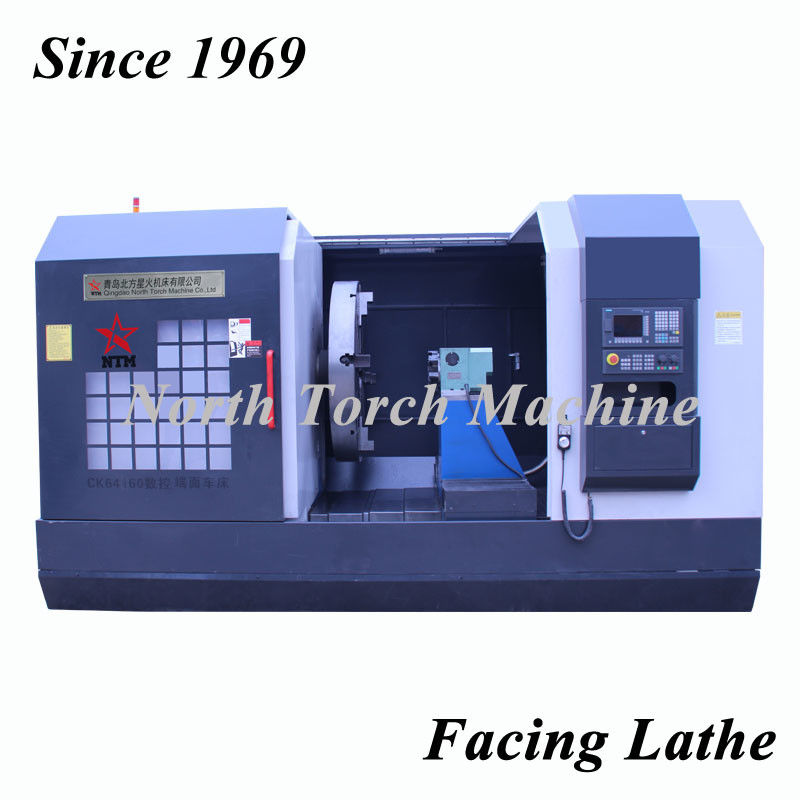

Large Image : Embedded Milling 2500mm Horizontal Turning Lathe

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	NTM or customized Horizontal Lathe is also available
Certification:	CE, ISO9001, BV, SGS, EAC, etc
Model Number:	CK64250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Vaccum bag and wooden box package
Delivery Time:	2 months
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per one year

Contact Now

Detailed Product Description

Max.swing Diameter Over Lathe Machine Bed:	2500mm	Max.length Of Work-piece:	500 Mm--1000 Mm
Turret Of Lathe Machine:	4 Positions Vertical Autoration Turret	Metal Cover For Lathe Machine:	Full Metal Cover Or Semi Metal Cover
Chip Chain System:	It Is Available To Install Chip Chain Conveyor.	Control System Of Lathe Machine:	FANUC, SIEMENS, MITSUBISH, OR GSK
Lathe Machine Color:	Per Customer's Request	Package Of Lathe Machine:	Vaccum Bag And Wooden Box Package
High Light:	2500mm Horizontal Turning Lathe , Embedded Milling Horizontal Turning Lathe , 2T Workpiece Horizontal Turning Lathe

2500mm FANUC control system turning lathe

Turning lathe

Face machining is a basic operation that can be performed on lathes and milling machines, both of which involve the removal of material to produce varying machined parts. In addition to the difference between turning and milling the face, we will also check what is the face operation and how the face tool works in the CNC lathe.

Specifications of Facing lathe machine, flange turning lathe, cnc lathe, cnc lathe machine
Name	Unit	CK64125	CK64160	CK61200	CK64250	CK64300
Swing Diameter over Machine Bed	mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm	φ3000
Chuck Diameter	mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm
Chuck-jaw seat length	mm	Embedded	Embedded	500mm	500mm	500mm
Work-piece Length	mm	500mm	750mm	750mm	1000mm	1000mm
Work-piece Weight	T	2T	2T	3T	3T	5T
Spindle Diameter	mm	φ190mm	φ200mm	φ220mm	φ220mm	φ260mm
Spindle Speed	r/min	10-200 r/min	4-160 r/min	4-160 r/min	3-106 r/min	3-106 r/min
X Axis Stroke	mm	625mm	800mm`	1000mm	1250mm	1500mm
Z Axis Stroke	mm	500mm	750mm	1000mm	1000mm	1000mm
X Axis Rapid Feed Speed	mm/min	2500mm/min	2500mm/min	2500mm/min	2000mm/min	2000mm/min
Z Axis Rapid Feed Speed	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Cutting Tool Carriage Size		240*240	280*280	300*300	300*300	300*300
Cutting Tool Shank Size	mm	32*32mm	40*40mm	40*40mm	40*40mm	40*40mm
Feed Control		Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Motor Parameters
Main Motor Power	KW	15KW	18.5KW	18.5KW	22KW	37KW
Feed Motor of Z Axis	KW	2.3KW	2.3KW	2.3KW	2.3KW	2.3KW
Feed Motor of X Axis	KW	2.3KW	5.5KW	5.5KW	5.5KW	5.5KW
Lubrication Motor Power	KW	0.37KW	0.37KW	0.37KW	0.55KW	0.55KW
Machine Accuracy
Cylindricity	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Flatness	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Roughness	Ra	Ra3.2	Ra3.2	Ra3.2	Ra3.2	Ra3.2
Machine Dimensions	mm	318019101870	394019801900	419026702450	425027702800	440033003300
Machine Weight	T	6T	9.5T	11T	12.5T	15T

Remarks: The above models of lathe machine, facing lathe, cnc lathe machine, conventional lathe, horizontal lathe are the standard configuration and size, we are also specialized in making customized lathe according to work-piece dimensions and special request.

What operations are facing on the lathe?

Face milling is commonly used in CNC turning and boring. It refers to the process of removing material from the end and/or shoulder of a workpiece, using face tools to produce a flat, smooth surface perpendicular to the axis of rotation of the workpiece. If there is a hole in the center of the blank, the semi-center should be used to stabilize and support the workpiece.

What factors will affect the quality of docking operations?

Speed and feed, the size and material of the cutting tool, the type of material to be processed, and the method of clamping the workpiece will affect the quality and efficiency of the end face of the lathe. Choose roughing or finishing according to the material to be removed.

How to use facing tools on a lathe?

After the workpiece is fixed on the CNC lathe and the end tool is installed in the tool holder of the frame, when the tool rotates in the jaws of the chuck, it will feed vertically along the rotation axis of the part to cut the workpiece accurately地 required length. CNC machine tools can provide power feed instead of manual feed to obtain a smoother surface finish.

What is the difference between a turning surface and a milling surface?

1. Use a lathe for turning and a milling machine for turning.

2. In the turning face, the part is rotating, and the cutting tool is stationary at the same position, while in the milling face, the face tool is rotating relative to the fixed workpiece.

3. The workpiece is usually cylindrical on the lathe, and you can face rectangular or special-shaped materials to make cubes and other non-cylindrical parts.

4. Lathe facing is a turning operation, including boring, grooving, reaming, etc., while milling facing is the opposite of turning.

How to face the end of the part?

The first thing you need to do is to set up the tool. Loosen the tool holder and tilt the tool about 10 to 15 degrees from the end of the blank to leave a little gap at the end. We also need to center the tool vertically.
