Application Of Facing Flange Turning Lathe: | Turning Flange,Tyre Mold,Propeller, Impeller | Max.Diameter Of Work-piece: | 2500mm |
---|---|---|---|
Max.Length Of Work-piece: | 500-1000 Mm | Max.Weight Of Work-piece: | 3T |
Chuck Type: | 8 Jaws Heavy Duty Chuck With Positioning Function | Certificate: | CE, EAC, SGS, BV, ISO9001 |
Machine Tool: | 4 Positions Automatic Electrical Rotation Cutting Tool | Chip Removal System: | Chain Type Automatic Chip Removal System |
High Light: | 2500mm Facing In Lathe Machine,15KW Facing In Lathe Machine,3T Workpiece Facing Lathe Machine |

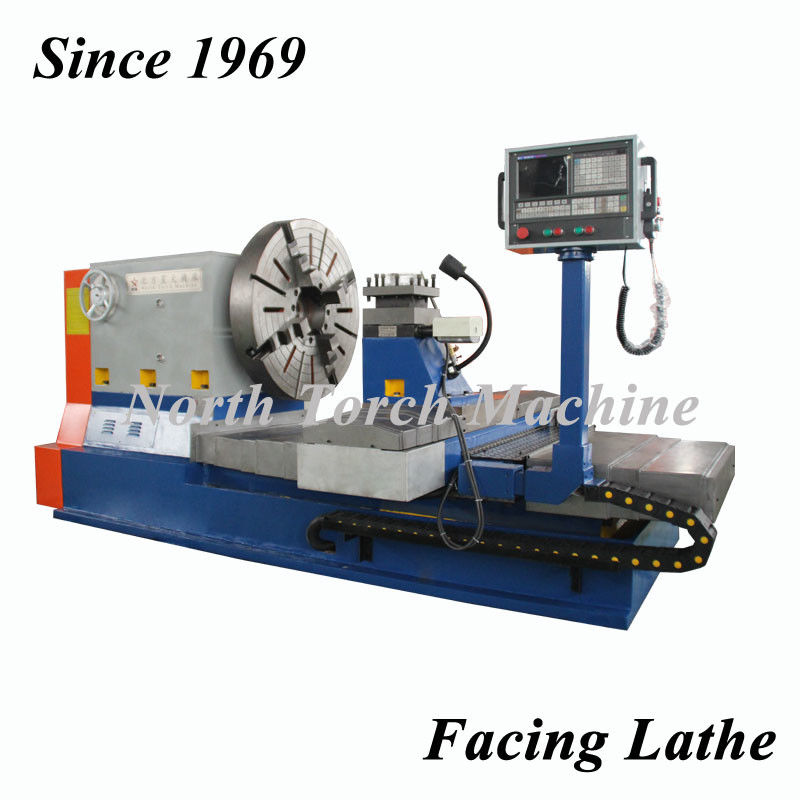

The maximum workpiece diameter of the turning flange is 2500 mm facing the lathe
Face lathe machine Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of flange, valves, sealing head,cans board, moter, such as tyre moulds cover parts . This machine widely used in energy and transportation, petroleum chemical industry, mining railwayand automobile manufacturing machinery.
1. Lathe is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.
Technical Parameters of Facing cnc lathe, horizontal lathe
Specifications of Facing in Lathe | ||||||
Name | Unit | CK64125 | CK64160 | CK61200 | CK64250 | CK64300 |
Swing Diameter over Machine Bed | mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm | φ3000 |
Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
Chuck-jaw seat length | mm | Embedded | Embedded | 500mm | 500mm | 500mm |
Work-piece Length | mm | 500mm | 750mm | 750mm | 1000mm | 1000mm |
Work-piece Weight | T | 2T | 2T | 3T | 3T | 5T |
Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
Spindle Speed | r/min | 10-200 r/min | 4-160 r/min | 4-160 r/min | 3-106 r/min | 3-106 r/min |
X Axis Stroke | mm | 625mm | 800mm` | 1000mm | 1250mm | 1500mm |
Z Axis Stroke | mm | 500mm | 750mm | 1000mm | 1000mm | 1000mm |
X Axis Rapid Feed Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min |
Z Axis Rapid Feed Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
Cutting Tool Carriage Size | 240*240 | 280*280 | 300*300 | 300*300 | 300*300 | |
Cutting Tool Shank Size | mm | 32*32mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
Feed Control | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | |
Motor Parameters | ||||||
Main Motor Power | KW | 15KW | 18.5KW | 18.5KW | 22KW | 37KW |
Feed Motor of Z Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
Feed Motor of X Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
Machine Accuracy | ||||||
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Flatness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Machine Dimensions | mm | 3180*1910*1870 | 3940*1980*1900 | 4190*2670*2450 | 4250*2770*2800 | 4400*3300*3300 |
Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
Notes: The above models of facing flange turning cnc lathe machine is the standard configuration and sizes, if you have special request, please let us know, because we are also specialized in making customized lathe also, which can help customer save input cost and obtain a perfect lathe machine.
Delivery Time : 2 months. Some times we have machine parts in stock, we can shorten the production time from 2 months to 1 month or 2 weeks
Certificate of horizontal facing cnc lathe : CE, EAC, SGS, BV, ISO9001.
Machine Quality Warranty : 1 year after machine installation and commissioning at customer's factory. Within 2 years, we can provide smaller electrical parts like relay, cutting tool signal transfer disc, etc freely.
After-sale Service and Maitenance Of Facing cnc lathe, horizontal flange turning lathe
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
