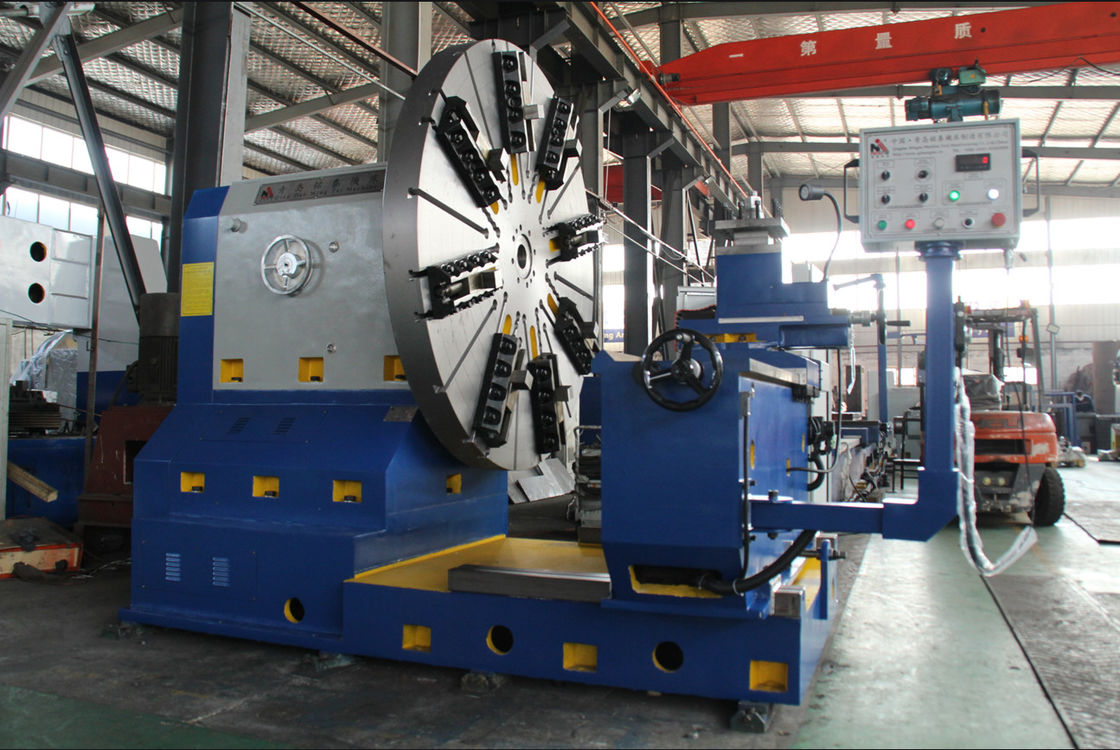

Ra3.2 18.5KW 3T Workpiece 2500mm Horizontal Cnc Lathe

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

Ra3.2 18.5KW 3T Workpiece 2500mm Horizontal Cnc Lathe

Ra3.2 18.5KW 3T Workpiece 2500mm Horizontal Cnc Lathe
Ra3.2 18.5KW 3T Workpiece 2500mm Horizontal Cnc Lathe

Large Image :  Ra3.2 18.5KW 3T Workpiece 2500mm Horizontal Cnc Lathe

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK64250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 2 months
Payment Terms: T/T, L/C
Supply Ability: 200 sets per one year
Detailed Product Description
Application Of Facing Flange Turning Lathe: Turning Flange,Tyre Mold,Propeller, Impeller Max.Diameter Of Work-piece: 2500 Mm
Max.Length Of Work-piece: 1000 Mm Max.Weight Of Work-piece: 3T
Chuck Type: 8 Jaws Heavy Duty Chuck With Positioning Function Certificate: CE, EAC, SGS, BV, ISO9001
Voltage: 18.5KW Control System: PLC
High Light:

2500mm Horizontal Cnc Lathe

,

3T Horizontal Cnc Lathe

,

18.5KW Facing in Lathe Machine

The maximum workpiece diameter of the turning flange is 2500 mm facing the lathe



Face to face lathe description

The facing lathe is a kind of lathe that can process both ends of a bar at the same time. Although it may be called a trimming and centering machine, it can also be used for chamfering, drilling, countersinking and turning. In most cases, end faces and centering machines are used to prepare the bar stock for further processing on the main operating lathe.

Usually, the operator needs to machine one end of the part, remove the part, and then machine the other end. By processing both ends of the bar at the same time, the turning time can be cut in half. However, in addition, by correctly preparing the end face of the workpiece before turning, the faceting and centering machine can often completely eliminate subsequent finishing operations. The centering operation of the machine (creating a precisely positioned hole during drilling or machining) can also eliminate the need to machine certain parts of the outer diameter of the workpiece later.

Any operation of manufacturing shafts, splines, pinions and similar parts can be used for end-to-end machines. The automotive and driveshaft industries are perhaps the most prominent industries.





Technical Parameters of Facing cnc lathe, horizontal lathe





Specifications of Facing in Lathe
Name Unit CK64125 CK64160 CK61200 CK64250 CK64300
Swing Diameter over Machine Bed mm φ1250mm φ1600mm φ2000mm φ2500mm φ3000
Chuck Diameter mm φ1000mm φ1250mm φ1600mm φ2000mm φ2500mm
Chuck-jaw seat length mm Embedded Embedded 500mm 500mm 500mm
Work-piece Length mm 500mm 750mm 750mm 1000mm 1000mm
Work-piece Weight T 2T 2T 3T 3T 5T
Spindle Diameter mm φ190mm φ200mm φ220mm φ220mm φ260mm
Spindle Speed r/min 10-200 r/min 4-160 r/min 4-160 r/min 3-106 r/min 3-106 r/min
X Axis Stroke mm 625mm 800mm` 1000mm 1250mm 1500mm
Z Axis Stroke mm 500mm 750mm 1000mm 1000mm 1000mm
X Axis Rapid Feed Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min
Z Axis Rapid Feed Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min
Cutting Tool Carriage Size   240*240 280*280 300*300 300*300 300*300
Cutting Tool Shank Size mm 32*32mm 40*40mm 40*40mm 40*40mm 40*40mm
Feed Control   Servo Motor Servo Motor Servo Motor Servo Motor Servo Motor
Motor Parameters
Main Motor Power KW 15KW 18.5KW 18.5KW 22KW 37KW
Feed Motor of Z Axis KW 2.3KW 2.3KW 2.3KW 2.3KW 2.3KW
Feed Motor of X Axis KW 2.3KW 5.5KW 5.5KW 5.5KW 5.5KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.37KW 0.55KW 0.55KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Flatness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions mm 3180*1910*1870 3940*1980*1900 4190*2670*2450 4250*2770*2800 4400*3300*3300
Machine Weight T 6T 9.5T 11T 12.5T 15T





Notes: The above models of facing flange turning cnc lathe machine is the standard configuration and sizes, if you have special request, please let us know, because we are also specialized in making customized lathe also, which can help customer save input cost and obtain a perfect lathe machine.



Delivery Time : 2 months. Some times we have machine parts in stock, we can shorten the production time from 2 months to 1 month or 2 weeks



Certificate of horizontal facing cnc lathe : CE, EAC, SGS, BV, ISO9001.



Machine Quality Warranty : 1 year after machine installation and commissioning at customer's factory. Within 2 years, we can provide smaller electrical parts like relay, cutting tool signal transfer disc, etc freely.



After-sale Service and Maitenance Of Facing cnc lathe, horizontal flange turning lathe

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.





For other more details, please feel free to contact me. Thank you
