| CNC Lathe Machine Application: | Turning, Facing Flange, Tyre Mold, Propeller, Impeller | Chuck: | 4 Jaws Independent Chuck |
|---|---|---|---|
| Max.Diameter Of Flange: | 2500 Mm | Max,Length Of Flange: | 500-1000 Mm |
| Optional Machine Accessories: | Full Metal Cover, Chip Chain System, , Hydraulic Chuck,etc | Delivery Time: | 60 Days |
| High Light: | Flange Facing In Lathe Machine,Impeller Facing In Lathe Machine,Impeller Flange Lathe Machine |
||

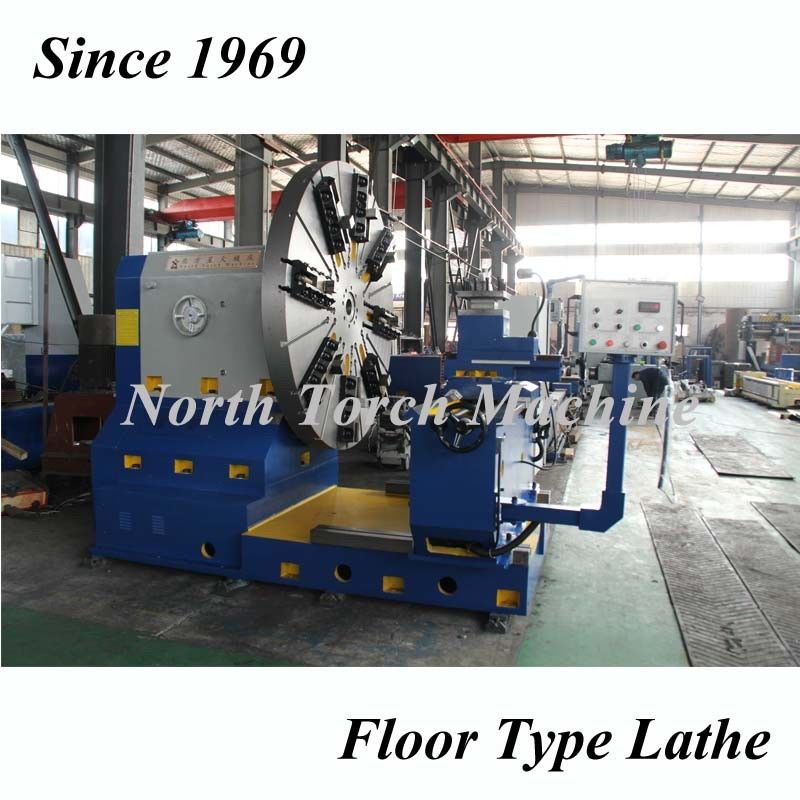

EAC , CE Certificated Professional Flange Turning Facing CNC Lathe Machine, Conventional Flange turning lathe
This kind of flange turning facing CNC Lathe is very popular in the world, not only in China, but also in Russia, Argentina, Thailand, Chile, Norway, Mexico, India, Pakistan, Brazil, Colombia, Peru, Australia, etc . Facing CNC Lathe can be widely used in facing, turning, threading flange, tyre mold, Aluminum Mold, Pipe Adaptor, Shipyard Propeller, Impeller, etc. We can manufacture both conventional and CNC Control Flange turning Facing Lathe Machine.
1. Our Flange turning Facing CNC Lathe passed both EAC and CE Certificates.
The Difference between our flange turning facing cnc lathe and other competitors:
1. Our Flange Turning facing CNC lathe use SERVO MOTOR + High precision planetary reduction box for transmission , and high precision Planetary reduction box and gear to realize automatic feed, while other company use the sync wheel and belt. Which has poor accuracy, and using some time, it shall happen and appear big gap/space, which greatly affect machine accuracy and stability. While our planetary reduction box has high precision and accuracy, rigidity and stability, besides, we all use high quality famous brand.
2. With regards to our conventional flange turning facing lathe machine, Our Z axis stroke can move automatically and feed , which is transmission by servo motor, not manually, other lathe is manually.
3.This is our standard professional cutting tool carriage/turret with 280*280 mm heavy duty type tool carriage. Which has much more high accuracy, rigidity and stability with big volume cuttings , it can realize both rough and finish turning processes. While other company is a simple not-standard tool carriage. You can check by pictures easily. All our cutting tool carriage can moves automatically on the X, Z stroke. While other has limited stroke. It is not stable also.
4. We specially design Manual Pulse Generator for both of our Conventional Flange Turning Lathe and Flange Turning Facing CNC Lathe. It is very easy to do cutting tool calibration and tool setting.
2. Standard Technical Parameters of Flange Turning Facing CNC Lathe
| CK60 series - Flange Lathe Floor Type CNC Lathe | ||||||
| Type | Unit | CK6016 | CK6018 | CK6020 | CK6025 | CK6030 |
| Swing Diameter over machine bed | mm | φ1600mm | φ1800mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck jaw seat length | mm | 400mm | 400mm | 500mm | 500mm | 500mm |
| Work-piece length | mm | 500mm | 500mm | 500mm | 750mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 3T |
| Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
| Spindle speeds | r/min | 14-108r/min | 14-108r/min | 4-160r/min | 4-106r/min | 4-106r/min |
| X Axis Stroke | mm | 800mm | 900mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| X Axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| Z Axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Cutting Tool Carriage Size | 300*300 | 300*300 | 300*300 | 300*300 | 300*300 | |
| Cutting Tool Carriage Size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Motor Parameters | ||||||
| Main motor power | KW | 11KW | 11KW | 15KW | 18.5KW | 22KW |
| Feed Motor Power of X Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Feed Motor Power of Z Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
| Machine Accuracy | ||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| L*W*H Machine Dimensions | mm | 2800*1850*1800mm | 2800*1950*1900mm | 2800*2000*2000mm | 3250*2650*2650mm | 3500*3300*3200mm |
| Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
Notes: The above technical parameters are standard configuration and modesl, we are also specialized in making customized flage turning facing cnc lathe, conventional flange turning lathe, and other lathe machine. Please let us know the max.diameter, length and weight of work-piece. We can redesign for you.
Currently we have the ability to make lathe used for turning 5000 mm Diameter Flange.
3. Payment Item & Delivery Time of Flange Turning Facing CNC Lathe
30 advance payment after contract confirmation, the balance 70% should be paid before shipment.
60 days delivery time, now we have new one in stock for some partial models. for details, please feel free to contact me.
