Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder

Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder
Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder

Large Image :  Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized roll lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK8480 CK84100 CK84125 CK84160

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 4 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Horizontal Roll Lathe Usage: Turning Or Repairing Steel Roll, Groove, Etc CNC Lathe Type: Horizontal Roll CNC Lathe
CNC Control System: SIEMENS, FANUC, GSK, According To Customer Request Certificate: CE, BV, SGS, EAC
Voltage: 380V, 440V, 415V, 220V, Etc After-sales Service Provided: Engineers Available For Machine Installation
High Light:

cnc roll turning lathe machine

,

computer controlled lathe

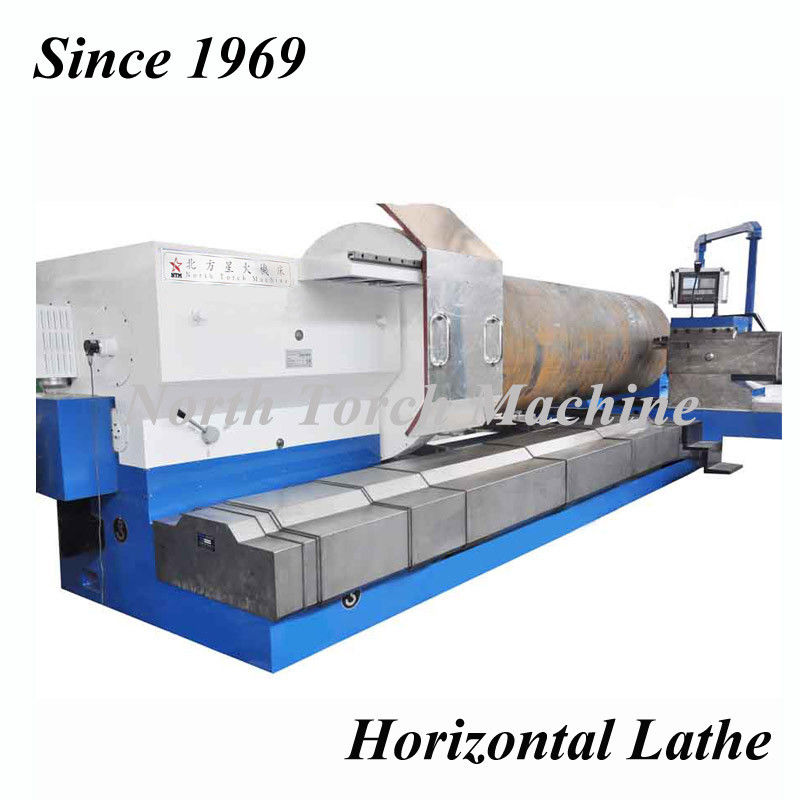

Professional Manufacture Roll Turning CNC Lathe for machining steel roller

Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder 0



Roll Turning Lathe is a professional horizontal lathe machine used for turning steel roll in the steel manufacture company. It can be used for machining not only the facing in lathe, threading, inner hole, but also the cylinderity, tapping, groove of steel roll, shaft, cylinder, etc



This roll CNC Lathe can be equipped with 2 cutting tool carriages and double operation panels with 2 kinds of CNC Control System , one is SIEMENS , Another is PLC control. In this way, the operator can choose different operation method, the cutting tool carriages can be also operated at the same time.



This series roll cnc lathe can be equipped with SIEMENS 828D, 848D  CNC Control System to realize different machining processes like Turning, Facing, Threading, Surface, Inner Hole, Tapping, Grooving, etc



2. OUR ADVANTAGES & FEATURES about ROLL TURNING LATHE:



1. More than 50 years experience in designing and manufacturing customized roll turning lathe.



2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.



3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine



4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.



5. High torque capacity of headstock of lathe machine



6. Zero backlash with ball screw.



7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system



8.Tailstock is electrical control with pressure display, which obtained our national patent.



9. The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC  but cheaper and easier than CNC Control.



Exported Countries :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc



3. Technical Parameters of steel roll turning lathe





CK84--Roll Turning CNC Lathe Machine
Name Unit CK8465 CK8480 CK84100 CK84125 CK84160 CK84200
Guide Rail Type   4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails
Max.Diameter of Work-piece mm φ650mm φ800mm φ1000mm φ1250mm φ1600mm φ2000 mm
Guide Rail Width of Machine Bed mm 1000mm 1100mm 1400mm 1600mm 1800mm 2000mm
Chuck Diameter mm φ1000mm φ1100mm φ1400mm φ1600mm φ1800mm φ2000mm
Chuck Jaw Length mm 250mm 250mm 320mm 320mm 320mm 320mm
Max.Length of Work-piece mm 4000mm 5000mm 8000mm 12000mm 150000mm 20000mm
Work-piece Weight T 10T 18T 25T 32T 40T 50T
Spindle Diameter mm φ190mm φ220mm φ260mm φ300mm φ300mm φ360mm
Spindle Speed r/min 5-260r/min 2-165r/min 2-130r/min 2-130r/min 2-80r/min 0.5-80r/min
Spindle Tips Size   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7 Metric 160 1:7
X Axis Stroke mm 50-325mm 50-400mm` 50-500mm 100-625mm 100-800mm 200-1000mm
Z Axis Stroke mm 1000-4000mm 1000-5000mm 2000-8000mm 2000-12000mm 3000-15000mm 3000-20000mm
X axis Rapid Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2500mm/min 2500mm/min 2500mm/min
Z axis Rapid Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min 3000mm/min
Tailstock spindle diameter mm φ240mm φ290mm φ290mm φ320mm φ320mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Moving method of tailstock   Electrical control Electrical control Electrical control Electrical control Electrical control Electrical control
Max.cutting force of single tool KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 13KN·m 22KN·m 33KN·m 40KN·m 90KN·m 233KN·m
Total cutting force KN 45KN 60KN 70KN 110KN 160KN 210KN
Motor
Main Motor Power KW 22KW 37KW 45KW 55KW 75KW 128KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.55KW 0.55KW 0.55KW 0.55KW
Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Size CM 600*200*140 750*220*165 8100*275*195 1000*310*215 1050*320*240 1250*360*265
Machine Weight T 20T 23T 26T 35T 46T 65T











Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder 1

Professional Roll Cnc Turning Lathe Machine Heavy Duty For Turning Cylinder 2









For more details, please feel free to contact us.



Thank you for attention.



Tag: Steel Roll Lathe, Roll Turning Lathe,Heavy Duty Horizontal Lathe
