20T workpiece Horizontal Roll Turning Lathe Machine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

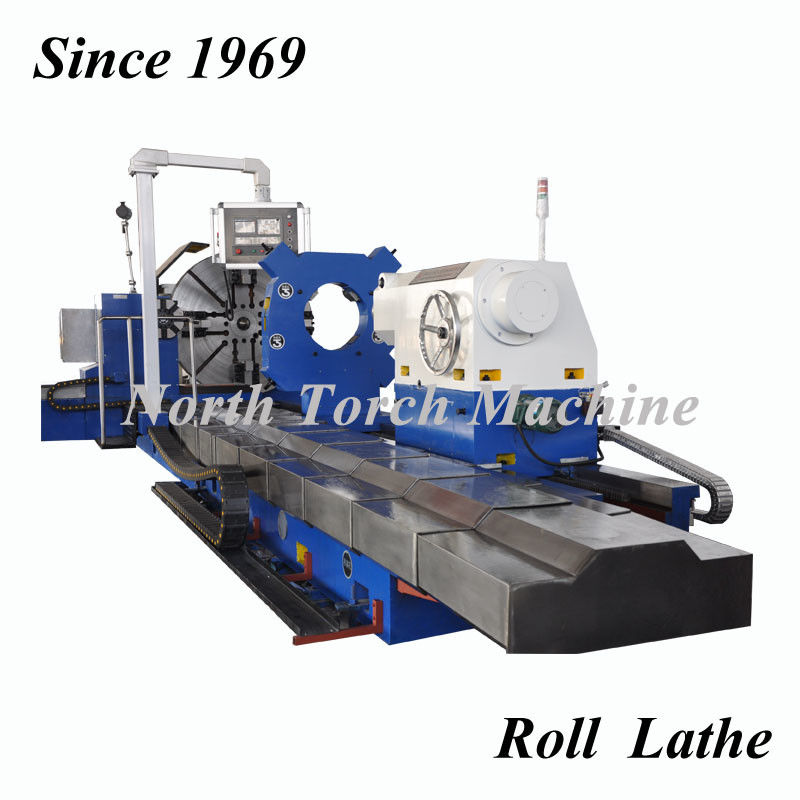

20T workpiece Horizontal Roll Turning Lathe Machine

20T workpiece Horizontal Roll Turning Lathe Machine
20T workpiece Horizontal Roll Turning Lathe Machine

Large Image :  20T workpiece Horizontal Roll Turning Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CG61100 CG61160 CG61200 CG61250 CG61300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Vaccum Bag Package + Wooden Box Package
Delivery Time: 4 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per one year
Detailed Product Description
Control Mode: Both Conventional And CNC Control Are Available Max.Diameter Of Work-piece: 1600 Mm
Max.Length Of Work-piece: 5000 Mm Max.Weight Of Work-piece: 20T
Machine Color: Customized Lathe Color Is Available Machine Installation And Commission: Engineer Is Available For Oversea Market Service
Voltage: Customer's Requirement Type: Horizontal Lathe, Vertical Lathe According To Work-piece
Automatic Grade: Automatic, Semi-automatic, Manual, Engine Lathe Warranty: 1 Year Warranty
High Light:

Horizontal Roll Turning Lathe Machine

,

20T Workpiece Roll Turning Lathe Machine

,

165r/min Roll Turning Lathe Machine

China First Professional Heavy Duty Horizontal CNC Lathe for turning sugar mill cylinder, shipyard shaft, mining oil pipe, steel roll, Propeller, Impeler.



We are China professional heavy horizontal lathe manufacturer with more than 50 years experience.  We are specialized in making customized lathe machines also that specially designed and made cnc lathe, lathe machine, heavy horizontal lathe, cnc machine tool according to customer's special request and work-piece features.



20T workpiece Horizontal Roll Turning Lathe Machine 0



CE, EAC, SGS, BV National patent Certificate like CNC Milling Drilling Lathe Machine , CNC Grinding Lathe





20T workpiece Horizontal Roll Turning Lathe Machine 1



Technical Parameters of Heavy Duty Horizontal Lathe, CNC Lathe, Lathe Machine, CNC Machine Tool



20T workpiece Horizontal Roll Turning Lathe Machine 2

CG61 series Heavy Duty horizontal Lathe
Name Unit CG61160 CG61200 CG61250 CG61315 CG61400 CG61500
Guide rail Type   Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Chuck jaw seat length mm 250mm Heavy chuck jaw seat 320m Heavy chuck jaw seat
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
Spindle tips   Metric 120 1:7 Metric 160 1:7
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
Cutting tool carriage type   300mm Electrical type
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Motor Parameters
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions mm 9200*2650*2300mm 9600*3200*3600mm 10000*3600*2500mm 11000*4000*3700mm 11200*5000*4700mm 11500*5500*5150mm
Machine Weight T 30T 35T 45T 50T 55T 65T





REMARKS: The above models of heavy duty horizontal cnc lathe , lathe machine, conventional lathe are the standard configurations. We can redesign and make the special horizontal lathe machine, cnc lathe, roll lathe according to work-piece size and customer's special request.



Package and Shipment of heavy duty horizontal lathe machine, cnc lathe, cnc machine tool



Vaccum Bag--2 layers + Wooden box pacakage for horizontal lathe machine, cnc lathe, cnc machine tool





Machine Quality Guarantee : 1 year quality warranty after acceptance of horizontal lathe machine, cnc lathe, cnc machine tool



For other more details, please feel free to contact me.



Thank you.



Tag: Heavy Duty Horizontal Lathe, CNC Lathe, Lathe Machine, CNC Machine Tool, Roll turning lathe, CNC drilling Lathe, CNC Milling Lathe, CNC Machinery
