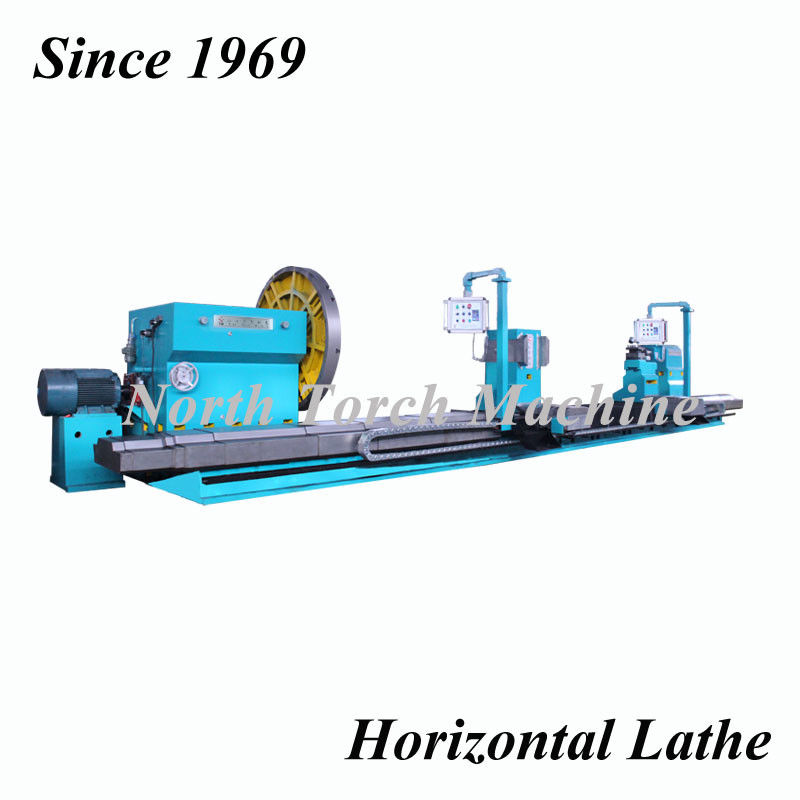

High Precision Roll Lathe Machine with double operation panels
Roll Turning Lathe is a professional horizontal lathe machine used for turning steel roll in the steel manufacture company. It can be used for machining not only the facing in lathe, threading, inner hole, but also the cylinderity, tapping, groove of steel roll, shaft, cylinder, etc
This roll CNC Lathe is equipped with 2 cutting tool carriages and double operation panels with 2 kinds of CNC Control System , one is SIEMENS , Another is PLC control. In this way, the operator can choose different operation method, the cutting tool carriages can be also operated at the same time.
2. OUR ADVANTAGES & FEATURES about ROLL TURNING LATHE:
1. More than 50 years experience in designing and manufacturing customized roll turning lathe.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
9. The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of steel roll turning lathe
CK84--Roll Turning Lathe Machine | |||||||
Name | Unit | CK8465 | CK8480 | CK84100 | CK84125 | CK84160 | CK84200 |
Guide Rail Type | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | |
Max.Diameter of Work-piece | mm | φ650mm | φ800mm | φ1000mm | φ1250mm | φ1600mm | φ2000 mm |
Guide Rail Width of Machine Bed | mm | 1000mm | 1100mm | 1400mm | 1600mm | 1800mm | 2000mm |
Chuck Diameter | mm | φ1000mm | φ1100mm | φ1400mm | φ1600mm | φ1800mm | φ2000mm |
Chuck Jaw Length | mm | 250mm | 250mm | 320mm | 320mm | 320mm | 320mm |
Max.Length of Work-piece | mm | 4000mm | 5000mm | 8000mm | 12000mm | 150000mm | 20000mm |
Work-piece Weight | T | 10T | 18T | 25T | 32T | 40T | 50T |
Spindle Diameter | mm | φ190mm | φ220mm | φ260mm | φ300mm | φ300mm | φ360mm |
Spindle Speed | r/min | 5-260r/min | 2-165r/min | 2-130r/min | 2-130r/min | 2-80r/min | 0.5-80r/min |
Spindle Tips Size | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | Metric 160 1:7 | |
X Axis Stroke | mm | 50-325mm | 50-400mm` | 50-500mm | 100-625mm | 100-800mm | 200-1000mm |
Z Axis Stroke | mm | 1000-4000mm | 1000-5000mm | 2000-8000mm | 2000-12000mm | 3000-15000mm | 3000-20000mm |
X axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
Z axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 3000mm/min |
Tailstock spindle diameter | mm | φ240mm | φ290mm | φ290mm | φ320mm | φ320mm | φ410mm |
Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Moving method of tailstock | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | |
Max.cutting force of single tool | KN | 60KN | 80KN | 80KN | 80KN | 100KN | 150KN |
Max.Torque of Chuck | KN·m | 13KN·m | 22KN·m | 33KN·m | 40KN·m | 90KN·m | 233KN·m |
Total cutting force | KN | 45KN | 60KN | 70KN | 110KN | 160KN | 210KN |
Motor | |||||||
Main Motor Power | KW | 22KW | 37KW | 45KW | 55KW | 75KW | 128KW |
Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW | 0.55KW | 0.55KW |
Accuracy | |||||||
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Machine Size | CM | 600*200*140 | 750*220*165 | 8100*275*195 | 1000*310*215 | 1050*320*240 | 1250*360*265 |
Machine Weight | T | 20T | 23T | 26T | 35T | 46T | 65T |
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of roll turning lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
