Product Details:
Payment & Shipping Terms:
|
| Machining Process Of Lathe Machine: | End Facing, Surface, Tapper, Ex-circle, Threading, Inner Hole Etc | Accessories: | Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc |
|---|---|---|---|
| Chip Removal System: | Chain Type Automatic Chip Removal System | Lathe After-sale Service: | Engineers Are Available For Machine Installation And Commissioning |
| Certificate: | CE,SGS, EAC, CE, ISO9001, Etc | Voltage: | Customer's Requirement,220V/380V,400V,440V |
| Application Of Facing Lathe Machine: | Machining Flange, Tyre Mold, Propeller, Bearing, | Lathe Machine Condition: | New Manufacture With High Quality |
| High Light: | gear head lathe machine,steel lathe machine |
||

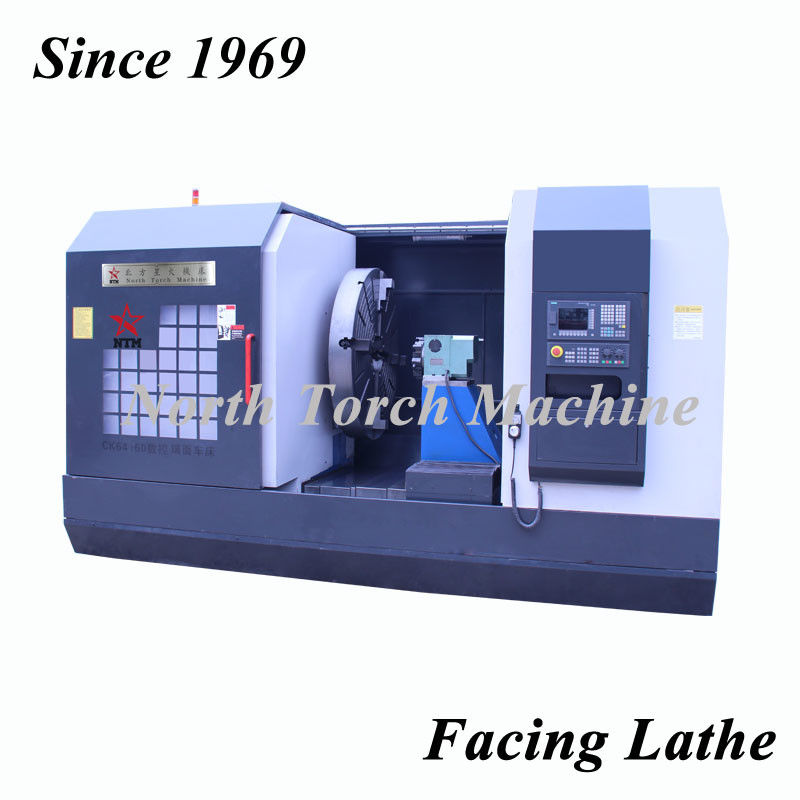

Horizontal Turret Facing in Lathe Machine, Flange Lathe
Application of Facing In Lathe, Flange Lathe, Horizontal Lathe:
Face CNC Lathe Machine or landing lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.
Our Special Advantages:
1. More than 50 years' experience in machinery industry since 1960s.
2. Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
3. Base adopts triangular guide design
4. Reasonable structure
5. High performance with low cost
6. We have our own foundry which can control the quality strictly.
7. All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
8. Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
9. We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.
2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Facing In Lathe
| Specifications of Facing in Lathe | ||||||
| Name | Unit | CK64125 | CK64160 | CK61200 | CK64250 | CK64300 |
| Swing Diameter over Machine Bed | mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck-jaw seat length | mm | Embedded | Embedded | 500mm | 500mm | 500mm |
| Work-piece Length | mm | 500mm | 750mm | 750mm | 1000mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 5T |
| Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
| Spindle Speed | r/min | 10-200 r/min | 4-160 r/min | 4-160 r/min | 3-106 r/min | 3-106 r/min |
| X Axis Stroke | mm | 625mm | 800mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 500mm | 750mm | 1000mm | 1000mm | 1000mm |
| X Axis Rapid Feed Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min |
| Z Axis Rapid Feed Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Cutting Tool Carriage Size | 240*240 | 280*280 | 300*300 | 300*300 | 300*300 | |
| Cutting Tool Shank Size | mm | 32*32mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Feed Control | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | |
| Motor Parameters | ||||||
| Main Motor Power | KW | 15KW | 18.5KW | 18.5KW | 22KW | 37KW |
| Feed Motor of Z Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Feed Motor of X Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
| Machine Accuracy | ||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Flatness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| Machine Dimensions | mm | 3180*1910*1870 | 3940*1980*1900 | 4190*2670*2450 | 4250*2770*2800 | 4400*3300*3300 |
| Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
The company produces various models of ground lathe also named facing in lathe machine; also produce horizontal lathe machine, vertical lathe, with the weight of large, rigid, and easy to operate, powerful, and many other advantages. And has a CNC vertical lathe, boring machine large landing, automatic gap submerged arc welding, electro-optical tracking cutting machine and a variety of measurement test equipment. Besides, using the vertical lathe to turn vanes can eliminate the defects that a floor-type horizontal machine is low in rotary speed, unstable in slewing and the like.
landing facing in lathe machine is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.
