Application Of Roll Turning Lathe: | Professionally Used For Turning Steel Roll,roll Bar | Max.Diameter Of Steel Roll: | 800 Mm |
---|---|---|---|
Max.Length Of Steel Roll: | 3000 Mm | CNC Control System: | SIEMENS, FANUC, GSK, According To Customer Request |
Voltage: | 380V, 440V, 415V, 220V, Etc | Weight Of Roll Bar: | 15T |
After-sale Service Of Roll Lathe: | Engineers Are Available For Oversea Machine Installation And Commissioning | Lathe Machine Accessories: | Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc |
High Light: | horizontal cnc lathe machine,computer controlled lathe |

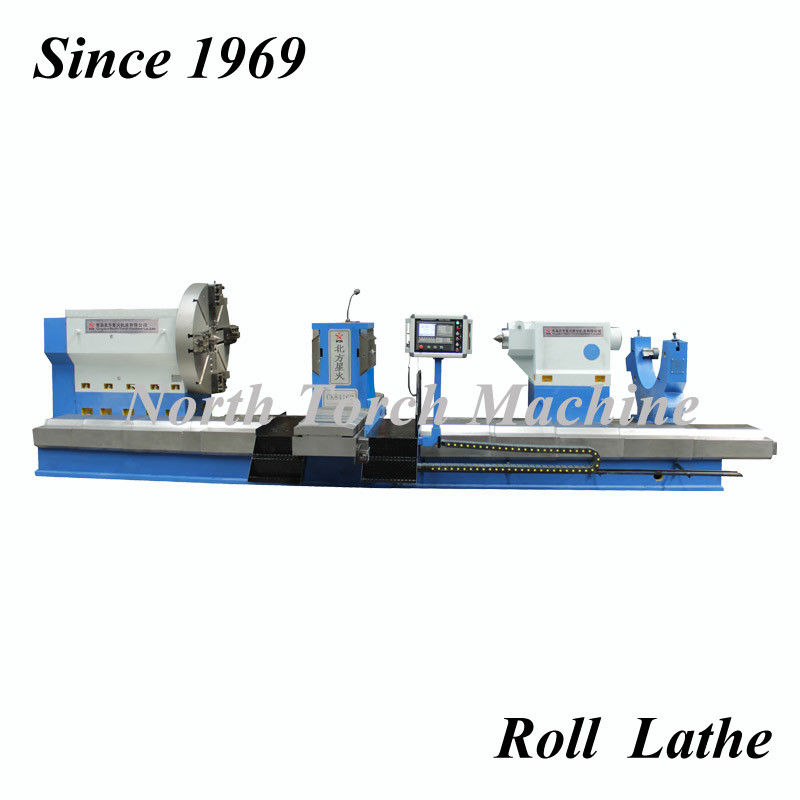

CNC Roll Lathe For Turning Repairing the Groove of Steel Roll
1. Application of CNC Roll Turning Lathe: Professionally used for modifying re-grooving the old steel rolls or machining the new steel roll , roll bar by steel plants. The roll turning cnc lathe can not only realize the machining process of turning, tapping, threading, groove, etc, but also the facing, ex-circle, surface, etc
We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.
2. OUR ADVANTAGES & FEATURES about ROLL TURNING LATHE:
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Tailstock is electrical control with pressure display, which obtained our national patent.
The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of steel roll turning lathe
CK84 series--Roll Turning Lathe Machine | |||||||
Name | Unit | CK8465 | CK8480 | CK84100 | CK84125 | CK84160 | CK84200 |
Guide Rail Type | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | |
Max.Diameter of Work-piece | mm | φ650mm | φ800mm | φ1000mm | φ1250mm | φ1600mm | φ2000 mm |
Guide Rail Width of Machine Bed | mm | 1000mm | 1100mm | 1400mm | 1600mm | 1800mm | 2000mm |
Chuck Diameter | mm | φ1000mm | φ1100mm | φ1400mm | φ1600mm | φ1800mm | φ2000mm |
Chuck Jaw Length | mm | 250mm | 250mm | 320mm | 320mm | 320mm | 320mm |
Max.Length of Work-piece | mm | 4000mm | 5000mm | 8000mm | 12000mm | 150000mm | 20000mm |
Work-piece Weight | T | 10T | 18T | 25T | 32T | 40T | 50T |
Spindle Diameter | mm | φ190mm | φ220mm | φ260mm | φ300mm | φ300mm | φ360mm |
Spindle Speed | r/min | 5-260r/min | 2-165r/min | 2-130r/min | 2-130r/min | 2-80r/min | 0.5-80r/min |
Spindle Tips Size | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | Metric 160 1:7 | |
X Axis Stroke | mm | 50-325mm | 50-400mm` | 50-500mm | 100-625mm | 100-800mm | 200-1000mm |
Z Axis Stroke | mm | 1000-4000mm | 1000-5000mm | 2000-8000mm | 2000-12000mm | 3000-15000mm | 3000-20000mm |
X axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
Z axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 3000mm/min |
Tailstock spindle diameter | mm | φ240mm | φ290mm | φ290mm | φ320mm | φ320mm | φ410mm |
Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Moving method of tailstock | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | |
Max.cutting force of single tool | KN | 60KN | 80KN | 80KN | 80KN | 100KN | 150KN |
Max.Torque of Chuck | KN·m | 13KN·m | 22KN·m | 33KN·m | 40KN·m | 90KN·m | 233KN·m |
Total cutting force | KN | 45KN | 60KN | 70KN | 110KN | 160KN | 210KN |
Motor | |||||||
Main Motor Power | KW | 22KW | 37KW | 45KW | 55KW | 75KW | 128KW |
Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW | 0.55KW | 0.55KW |
Accuracy | |||||||
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Machine Size | mm | 6000*2000*1400 | 7500*2200*1650 | 81000*2750*1950 | 10000*3100*2150 | 10500*3200*2400 | 12500*3600*2650 |
Machine Weight | T | 20T | 23T | 26T | 35T | 46T | 65T |
Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.
For the machine easy-damaged parts, we can provide immediately to prevent customer's halt production . For each lathe machine, we have one complete 3D & 2D drawings in dgw version.
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of roll turning lathe is 12 months.
For more details, please feel free to contact us.
