Metal Flange Lathe Easy Operation With PLC Control Long Working Life

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

Metal Flange Lathe Easy Operation With PLC Control Long Working Life

Metal Flange Lathe Easy Operation With PLC Control Long Working Life
Metal Flange Lathe Easy Operation With PLC Control Long Working Life Metal Flange Lathe Easy Operation With PLC Control Long Working Life Metal Flange Lathe Easy Operation With PLC Control Long Working Life

Large Image :  Metal Flange Lathe Easy Operation With PLC Control Long Working Life

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized lathe is also available
Certification: ISO9001, BV, CE, EAC etc
Model Number: CW6016 CW6020 CW6025 CW6030 CW6050

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 200 sets/ year
Detailed Product Description
Max.Diameter Of Flange Lathe: 4000 Mm Max.Length Of Horizontal Lathe: 1000 Mm
Application Of Flange Lathe: Machining Flange, Tyre Mold, Propeller, Bearing, Certificate: EAC, SGS, BV, ISO9001
High Light:

high speed precision lathe

,

accurate lathe machine

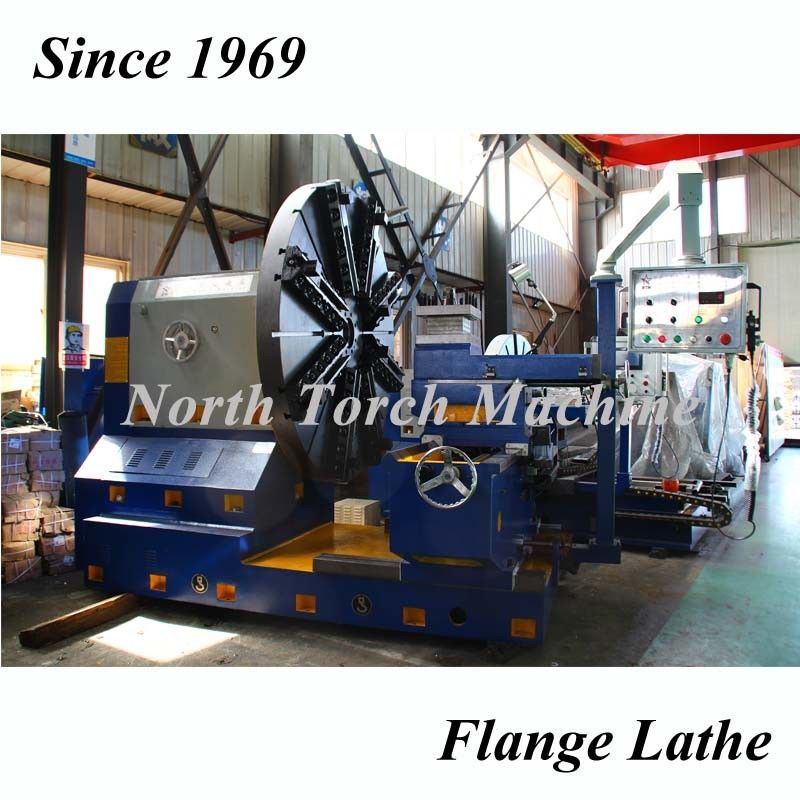

Large Facing Flat Bed Flange turning Lathe Machine with PLC Control

We specially designed a kind of handwheel operation and PLC Process Controlling system. Which is similar to the CNC Control , but it is more easy and convenient to operate and maintenance compared with CNC Control system. This technology has obtained national patent with certificate.


Product Discription of flange turning lathe, floor type lathe



Horizontal Lathe Machine Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of flange, valves, sealing head,cans board, moter, such as tyre moulds cover parts . This machine widely used in energy and transportation, petroleum chemical industry, mining railwayand automobile manufacturing machinery.

1. Horizontal Lathe Machine is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.

2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.

3. All the gears are precision grounded, with long life and low noise;

4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.

Our Advantages:


1. More than 50 years' experience in machinery industry since 1960s.

2. Manual or Conventional Control,FANUC ,SIMENS or Chinese Brand system , all are available

3. Base adopts triangular guide design

4. Reasonable structure with Handwheel to be convenient for centering the work-piece, flange, tyre mold, pipes, other disc piece.

5. High performance with low cost



6. We have our own foundry which can control the quality strictly.


Application & Features:



1. The base guide of Flange Lathe,Facing in lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings.



2. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation.



3. This is a professional Flange lathe machine used for turning drilling flange, neutral parts ,propeller with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.




2. Standard Technical Parametes  of Facing In Lathe, Flange Lathe, Horizontal Lathe





CW60 series - Flange Lathe Floor Type Lathe
Type Unit CW6016 CW6018 CW6020 CW6025 CW6030
Swing Diameter over machine bed mm φ1600mm φ1800mm φ2000mm φ2500mm φ3000
Chuck Diameter mm φ1000mm φ1250mm φ1600mm φ2000mm φ2500mm
Chuck jaw seat length mm 400mm 400mm 500mm 500mm 500mm
Work-piece length mm 500mm 500mm 500mm 750mm 1000mm
Work-piece Weight T 2T 2T 3T 3T 3T
Spindle Diameter mm φ190mm φ200mm φ220mm φ220mm φ260mm
Spindle speeds r/min 14-108r/min 14-108r/min 13-86r/min 4-106r/min 4-106r/min
X Axis Stroke mm 800mm 900mm` 1000mm 1250mm 1500mm
Z Axis Stroke mm 350mm 350mm 350mm 350mm 350mm
X Axis Rapid Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min
Z Axis Rapid Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min
Cutting Tool Carriage Size   300*300 300*300 300*300 300*300 300*300
Cutting Tool Carriage Size mm 40*40mm 40*40mm 40*40mm 40*40mm 40*40mm
Motor Parameters
Main motor power KW 11KW 11KW 15KW 18.5KW 22KW
Feed Motor Power of Z Axis KW 2.3KW 2.3KW 2.3KW 2.3KW 2.3KW
Feed Motor Power of X Axis KW 2.3KW 5.5KW 5.5KW 5.5KW 5.5KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.37KW 0.55KW 0.55KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
L*W*H Machine Dimensions mm 2800*1850*1800 2800*1950*1900 2800*2000*2000 3250*2650*2650 3500*3300*3200
Machine Weight T 6T 9.5T 11T 12.5T 15T









3. After-sale Service of Flange Lathe, Facing Lathe


1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the Facing In lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.


For more details, please feel free to contact us. Thanks!

Metal Flange Lathe Easy Operation With PLC Control Long Working Life 0

Metal Flange Lathe Easy Operation With PLC Control Long Working Life 1



Tag: Flange turning lathe, Conventional Lathe, Floor Lathe, Horizontal Lathe.
