Payment & Shipping Terms:
|Max.Diameter Of Flange Lathe:||5000mm||Max.Length Of Horizontal Lathe:||1000 Mm|
|Application Of Flange Lathe:||Machining Flange, Tyre Mold, Propeller, Bearing,||Certificate:||EAC, CE,SGS, BV, ISO9001|

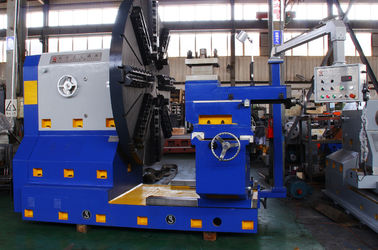

Horizontal Flange Turning Lathe,
5000Mm Flange Lathe,
Heavy Duty Flange Turning Lathe
Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
1. More than 50 years' experience in machinery industry since 1960s.
2. Manual or Conventional Control,FANUC ,SIMENS or Chinese Brand system , all are available
3. Base adopts triangular guide design
4. Reasonable structure with Handwheel to be convenient for centering the work-piece, flange, tyre mold, pipes, other disc piece.
5. High performance with low cost
6. We have our own foundry which can control the quality strictly.
7. All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
Application & Features of flange turning lathe machine:
1. The base guide of Flange Turning Lathe machine,Facing in lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings.
2. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation.
2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Horizontal Lathe
|CK60 series - Flange Turning Lathe Machine|
|Swing Diameter over machine bed||mm||φ1600mm||φ1800mm||φ2000mm||φ2500mm||φ3000|
|Chuck jaw seat length||mm||400mm||400mm||500mm||500mm||500mm|
|X Axis Stroke||mm||800mm||900mm`||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||350mm||350mm||350mm||350mm||350mm|
|X Axis Rapid Speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2500mm/min||2500mm/min|
|Z Axis Rapid Speed||mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min|
|Cutting Tool Carriage Size||300*300||300*300||300*300||300*300||300*300|
|Cutting Tool Carriage Size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Main motor power||KW||11KW||11KW||15KW||18.5KW||22KW|
|Feed Motor Power of Z Axis||KW||2.3KW||2.3KW||2.3KW||2.3KW||2.3KW|
|Feed Motor Power of X Axis||KW||2.3KW||5.5KW||5.5KW||5.5KW||5.5KW|
|Lubrication Motor Power||KW||0.37KW||0.37KW||0.37KW||0.55KW||0.55KW|
|L*W*H Machine Dimensions||mm||2800*1850*1800||2800*1950*1900||2800*2000*2000||3250*2650*2650||3500*3300*3200|

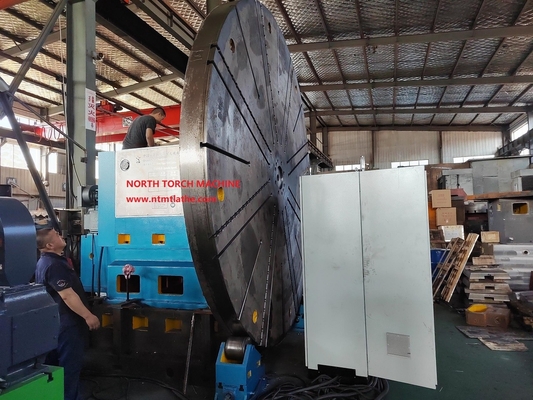

Notes: The above standard flange turning lathe machine is popular in the market, curently we can make the flange turning lathe with Maximum Swing Diameter is 5000 mm, namely it can machining 5000 mm Diameter flange, disc part, mold, etc
3. After-sale Service of Flange Lathe, Facing Lathe
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the Facing In lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: Flange turning lathe, Conventional Lathe, Floor Lathe, Horizontal Lathe.Large heavy duty horizontal lathe, EAC C
