Max.Diameter Of Flange Lathe: | 5000mm | Max.Length Of Horizontal Lathe: | 1000 Mm |
---|---|---|---|
Application Of Flange Lathe: | Machining Flange, Tyre Mold, Propeller, Bearing, | Certificate: | EAC, CE,SGS, BV, ISO9001 |
High Light: | Facing Horizontal CNC Lathe,5000Mm Horizontal CNC Lathe,Flywheel Flange Lathe |

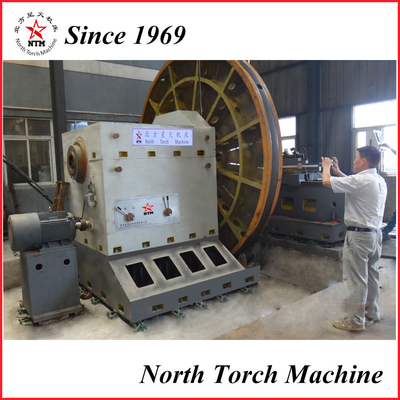

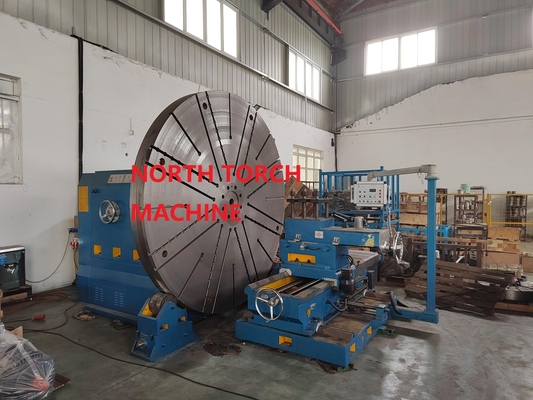

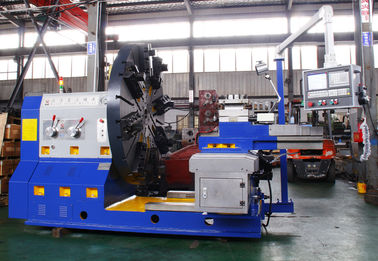

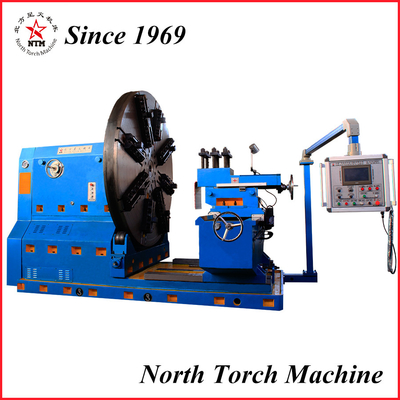

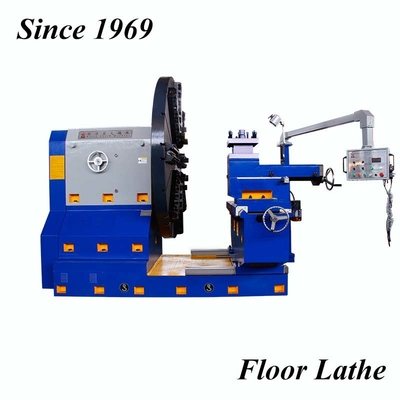

Product Discription of flange turning lathe, floor type lathe
Horizontal Lathe Machine Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of flange, valves, sealing head,cans board, moter, such as tyre moulds cover parts . This machine widely used in energy and transportation, petroleum chemical industry, mining railwayand automobile manufacturing machinery.
1. Horizontal Lathe Machine is also name Flange turning lathe machine, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low noise;
4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.
This is a professional Flange Turning lathe machine used for turning drilling flange, neutral parts ,propeller with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
Our Advantages:
1. More than 50 years' experience in machinery industry since 1960s.
2. Manual or Conventional Control,FANUC ,SIMENS or Chinese Brand system , all are available
3. Base adopts triangular guide design
4. Reasonable structure with Handwheel to be convenient for centering the work-piece, flange, tyre mold, pipes, other disc piece.
5. High performance with low cost
6. We have our own foundry which can control the quality strictly.
7. All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
Application & Features of flange turning lathe machine:
1. The base guide of Flange Turning Lathe machine,Facing in lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings.
2. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation.
2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Horizontal Lathe
CK60 series - Flange Turning Lathe Machine | ||||||
Type | Unit | CK6016 | CK6018 | CK6020 | CK6025 | CK6030 |
Swing Diameter over machine bed | mm | φ1600mm | φ1800mm | φ2000mm | φ2500mm | φ3000 |
Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
Chuck jaw seat length | mm | 400mm | 400mm | 500mm | 500mm | 500mm |
Work-piece length | mm | 500mm | 500mm | 500mm | 750mm | 1000mm |
Work-piece Weight | T | 2T | 2T | 3T | 3T | 3T |
Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
Spindle speeds | r/min | 14-108r/min | 14-108r/min | 13-86r/min | 4-106r/min | 4-106r/min |
X Axis Stroke | mm | 800mm | 900mm` | 1000mm | 1250mm | 1500mm |
Z Axis Stroke | mm | 350mm | 350mm | 350mm | 350mm | 350mm |
X Axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
Z Axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
Cutting Tool Carriage Size | 300*300 | 300*300 | 300*300 | 300*300 | 300*300 | |
Cutting Tool Carriage Size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
Motor Parameters | ||||||
Main motor power | KW | 11KW | 11KW | 15KW | 18.5KW | 22KW |
Feed Motor Power of Z Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
Feed Motor Power of X Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
Machine Accuracy | ||||||
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
L*W*H Machine Dimensions | mm | 2800*1850*1800 | 2800*1950*1900 | 2800*2000*2000 | 3250*2650*2650 | 3500*3300*3200 |
Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
Notes: The above standard flange turning lathe machine is popular in the market, curently we can make the flange turning lathe with Maximum Swing Diameter is 5000 mm, namely it can machining 5000 mm Diameter flange, disc part, mold, etc
3. After-sale Service of Flange Lathe, Facing Lathe
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the Facing In lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
