|Max.Diameter Of Flange Lathe:||3000 Mm||Max.Length Of Horizontal Lathe:||1000 Mm|
|Application Of Flange Lathe:||Machining Flange, Tyre Mold, Propeller, Bearing,||Machining Process Of Flange Lathe:||End Facing, Surface, Tapper, Ex-circle, Threading, Inner Hole Etc|
|Accessories:||Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc||Machine Tool:||4 Positions Automatic Electrical Rotation Cutting Tool|
accurate lathe machine,
cnc auto lathe machine
We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.
For the machine easy-damaged parts, we can provide immediately to prevent customer's halt production . For each lathe machine, we have one complete 3D & 2D drawings in dgw version.

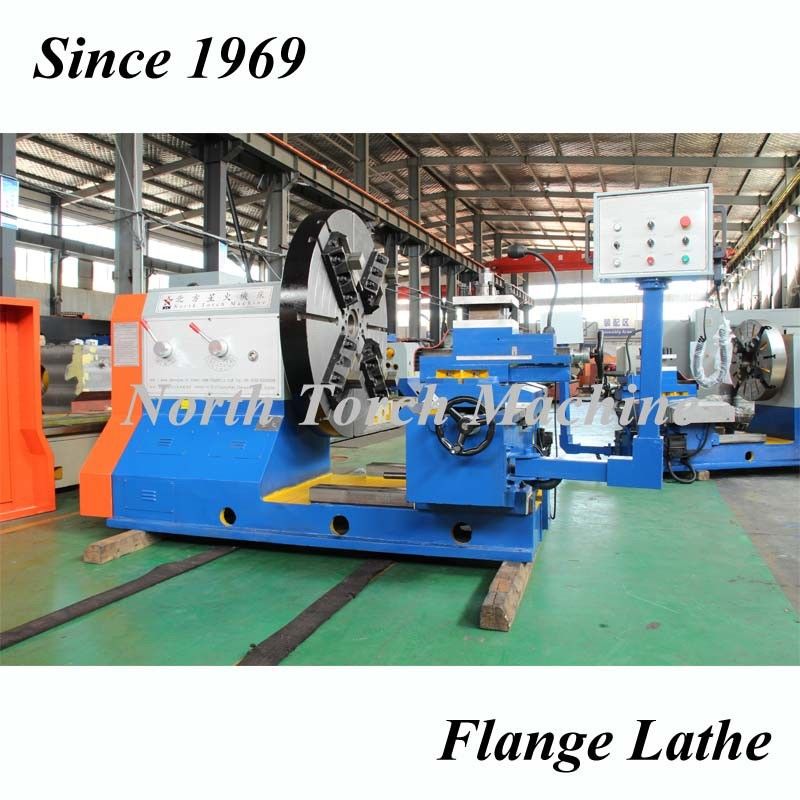

Reasonable structure with Handwheel to be convenient for centering the work-piece, flange, tyre mold, pipes, other disc piece.
High performance with low cost
More than 50 years' experience in machinery industry since 1960s.
Manual or Conventional Control,FANUC ,SIMENS or Chinese Brand system , all are available
We have our own foundry which can control the quality strictly.
All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized Flange lathe for over 50 years , if you have special request and demands, please feel free to contact us.
Application & Features:
1. The base guide of Flange Lathe,Facing in lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings.
2.This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation.
3.This is a professional Flange lathe machine used for turning drilling flange, neutral parts ,propeller with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Horizontal Lathe
|CW60 series - Flange Lathe Floor Type Lathe|
|Swing Diameter over machine bed||mm||φ1600mm||φ1800mm||φ2000mm||φ2500mm||φ3000|
|Chuck jaw seat length||mm||400mm||400mm||500mm||500mm||500mm|
|X Axis Stroke||mm||800mm||900mm`||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||350mm||350mm||350mm||350mm||350mm|
|X Axis Rapid Speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2500mm/min||2500mm/min|
|Z Axis Rapid Speed||mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min|
|Cutting Tool Carriage Size||300*300||300*300||300*300||300*300||300*300|
|Cutting Tool Carriage Size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Main motor power||KW||11KW||11KW||15KW||18.5KW||22KW|
|Feed Motor Power of Z Axis||KW||2.3KW||2.3KW||2.3KW||2.3KW||2.3KW|
|Feed Motor Power of X Axis||KW||2.3KW||5.5KW||5.5KW||5.5KW||5.5KW|
|Lubrication Motor Power||KW||0.37KW||0.37KW||0.37KW||0.55KW||0.55KW|
|L*W*H Machine Dimensions||mm||2800*1850*1800||2800*1950*1900||2800*2000*2000||3250*2650*2650||3500*3300*3200|
3. After-sale Service of Flange Lathe, Facing Lathe
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the Facing In lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: Flange turning lathe, Conventional Lathe, Floor Lathe, Horizontal Lathe.
