Product Details:
Payment & Shipping Terms:
|
Application Of Pipe Threading Lathe: | Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc | Spindle Bore: | 100 Mm 190 Mm 220 Mm 250 Mm 300 Mm 380 Mm 360 Mm 500 Mm |
---|---|---|---|
Max.Length Of Cylinder, Shaft: | 2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm | CNC Control System: | SIEMENS, FANUC, GSK, According To Customer Request |
Voltage: | 380V, 440V, 415V, 220V, Etc | Weight Of Machining Part: | 6T 15T 32T 45T 55T |
After-sale Service Of Roll Lathe: | Engineers Are Available For Oversea Machine Installation And Commissioning | Horizontal Lathe Accessories: | Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc |
High Light: | pipe threading lathe machine,automatic turning machine |

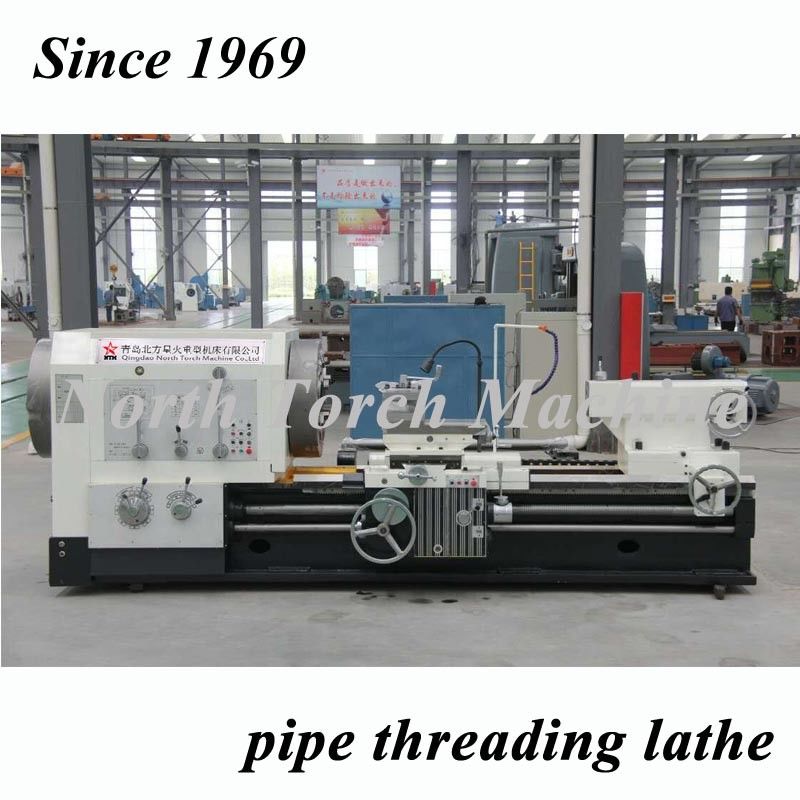

China Professional Pipe Threading Lathe for Turning Textile Pipe,Mining Pipe
1. Application of Pipe Threading Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
We can specially designed and made special cnc lathe, vertical lathe, lathe machines, roll turning lathe, flange lathe, pipe threading lathe, cnc grinding lathe, cnc milling machine and other horizontal lathe machine. We have the ability to provide unique design which helps the user save cost and highly improve the machining efficiency. This made my company obtained a lot of lathe machine orders evey year from the national and oversea markets.
2. OUR ADVANTAGES & FEATURES about Pipe Threading LATHE Machine:
More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
We have our own FOUNDRY, which can control and guarantee the castings quality very well.
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Tailstock is electrical control with pressure display, which obtained our national patent.
The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Horizontal Pipe Threading lathe Machine
CK61 series Pipe Threading CNC Lathe | |||||||
Name | Unit | CK6180 | CK61125 | CK61160 | CK61200 | CK61250 | CK61300 |
Guide rail Type | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | |
Swing diameter over machine bed | mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 | φ3000 |
Swing diameter over cutting tool carriage | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 |
Guide rail width of machine bed | mm | 600mm | 755mm | 1000mm | 1000mm | 1100mm | 1100mm |
4 jaws single action Chuck diameter | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
Max.Length of work-piece | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
Work-piece Weight | T | 2T | 5T | 10T | 12T | 15T | 15T |
Spindle Diameter | mm | φ190mm | φ215mm | φ250mm | φ278mm | φ300mm | φ380-500mm |
Spindle Speed | r/min | 10-300r/min | 5-134r/min | 5-106r/min | 5-106r/min | 3-87r/min | 3-87r/min |
X Axis Stroke | mm | 400mm | 600mm` | 800mm | 1000mm | 1250mm | 1500mm |
Z Axis Stroke | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
X axis rapid speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
Z axis rapid speed | mm/min | 3000mm/min | 3000mm/min | 3000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
F Cutting tool blade size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
Tailstock spinlde diameter | mm | φ150mm | φ180mm | φ240mm | φ240mm | φ280mm | φ280mm |
Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Tailstock moving method | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | |
Tailstock Tip | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | |
Total Power | KW | 11KW | 15KW | 18.5KW | 22KW | 30KW | 37KW |
Lubrication Motor Power | KW | 0.37KW | 0.55KW | 0.56KW | 0.57KW | 0.58KW | 0.59KW |
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughtness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for Pipe Threading lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Pipe Turning Threading Lathe,Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
