Product Details:
Payment & Shipping Terms:
|
Application Of Flange Lathe: | Machining Flange, Tyre Mold, Propeller, Bearing, | Machining Process Of Flange Lathe: | End Facing, Surface, Tapper, Ex-circle, Threading, Inner Hole Etc |
---|---|---|---|
Accessories: | Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc | Machine Tool: | 4 Positions Automatic Electrical Rotation Cutting Tool |
Delivery Time: | 1-2 Months | Voltage: | Customer's Requirement,220V/380V,400V,440V |
Max.Diameter Over Facing Lathe: | 800 Mm 1000 Mm 1250 Mm 1600 Mm 2500 Mm | Max.Length Of Work-piece: | 500-1000 Mm |
High Light: | accurate lathe machine,cnc auto lathe machine |
Our products have been exported to Georgia, Russia, India, Iran, Panama,Colombia,Brazil, Indonesia, Australia, Mexico, America, France, Iran, Chile, Norway, Thailand, Pakistan, Argentina and etc. Due to the excellent and stable quality with bottom price and professional after-sale service make us separate from other competitors and win a good reputation from domestic and abroad customers.
With the concept of “diversity and pursuit of excellence”, we aim to offer superior products and service to our customers.
Our Advantages:
1. More than 50 years' experience in machinery industry since 1960s.
2. Manual or Conventional Control,FANUC ,SIMENS or Chinese Brand system , all are available
3. Base adopts triangular guide design
4. Reasonable structure with Handwheel to be convenient for centering the work-piece, flange, tyre mold, pipes, other disc piece.
5. High performance with low cost
6. We have our own foundry which can control the quality strictly.
7. All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
8. Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
9. We are specialized in designing and manufacturing customized Flange lathe for over 50 years , if you have special request and demands, please feel free to contact us.

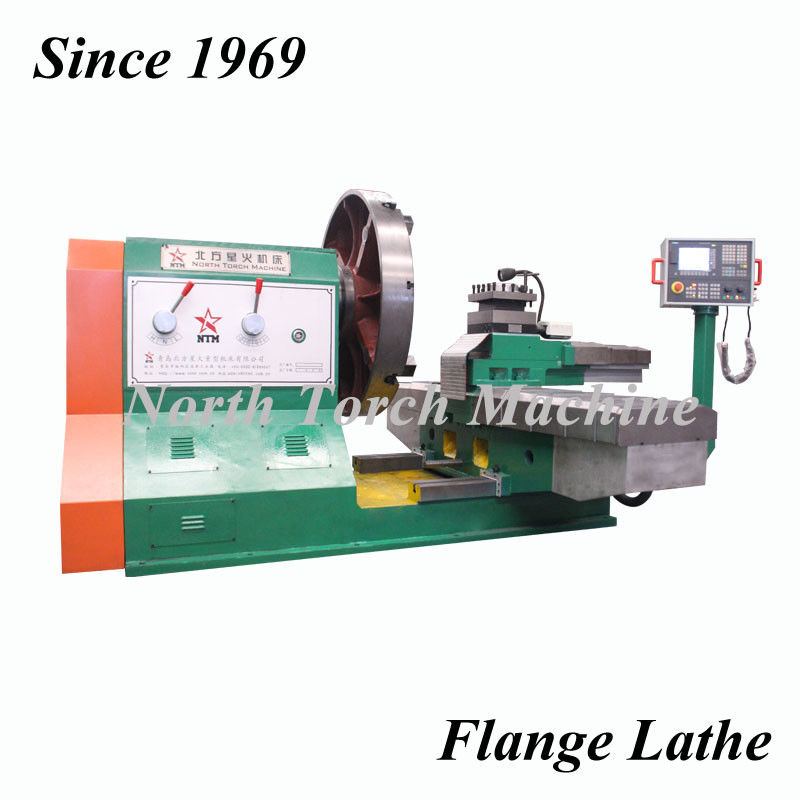

Application & Features of Facing Lathe Flange Lathe:
1. The base guide of Flange Lathe,Facing in lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings.
2. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation.
3. This is a professional Flange lathe machine used for turning drilling flange, neutral parts ,propeller with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Horizontal Lathe
CK60 series - Flange Lathe Floor Type Lathe | ||||||
Type | Unit | CK6016 | CK6018 | CK6020 | CK6025 | CK6030 |
Swing Diameter over machine bed | mm | φ1600mm | φ1800mm | φ2000mm | φ2500mm | φ3000 |
Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
Chuck jaw seat length | mm | 400mm | 400mm | 500mm | 500mm | 500mm |
Work-piece length | mm | 500mm | 500mm | 500mm | 750mm | 1000mm |
Work-piece Weight | T | 2T | 2T | 3T | 3T | 3T |
Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
Spindle speeds | r/min | 14-108r/min | 14-108r/min | 13-86r/min | 4-106r/min | 4-106r/min |
X Axis Stroke | mm | 800mm | 900mm` | 1000mm | 1250mm | 1500mm |
Z Axis Stroke | mm | 350mm | 350mm | 350mm | 350mm | 350mm |
X Axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
Z Axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
Cutting Tool Carriage Size | 300*300 | 300*300 | 300*300 | 300*300 | 300*300 | |
Cutting Tool Carriage Size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
Motor Parameters | ||||||
Main motor power | KW | 11KW | 11KW | 15KW | 18.5KW | 22KW |
Feed Motor Power of Z Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
Feed Motor Power of X Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
Machine Accuracy | ||||||
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
L*W*H Machine Dimensions | mm | 2800*1850*1800 | 2800*1950*1900 | 2800*2000*2000 | 3250*2650*2650 | 3500*3300*3200 |
Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
3. After-sale Service of Flange Lathe, Facing Lathe
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the Facing In lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
