1000mm PLC Cnc Turning Flange Metal Lathe Machine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

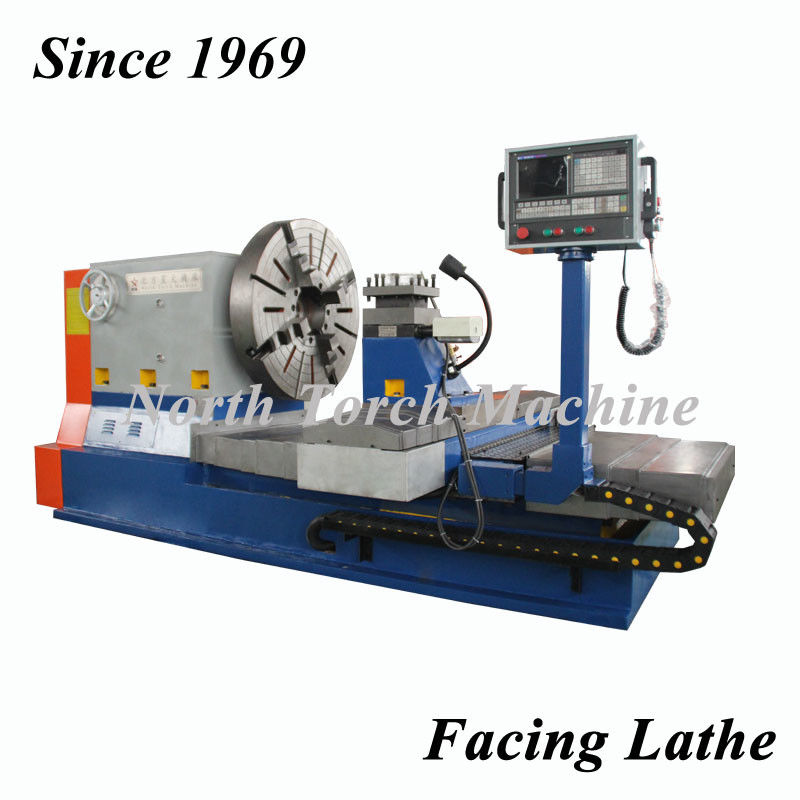

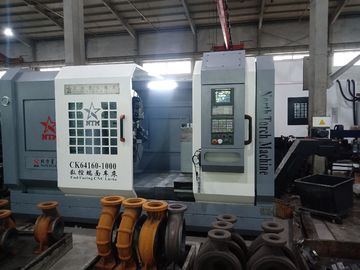

1000mm PLC Cnc Turning Flange Metal Lathe Machine

1000mm PLC Cnc Turning Flange Metal Lathe Machine
1000mm PLC Cnc Turning Flange Metal Lathe Machine 1000mm PLC Cnc Turning Flange Metal Lathe Machine

Large Image :  1000mm PLC Cnc Turning Flange Metal Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CG61100 CG61160 CG61200 CG61250 CG61300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood Box Package
Delivery Time: 3 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Metal Turning Horizontal Lathe Application: Turning Flange, Pipe, Shaft, Cylinder, PE PART,etc Machine Type: Horizontal Lathe Machine
Control System: PLC Swing Diameter Over Machine Bed: 1000 Mm
Max.Length Of Work-piece: 1000mm X, Z Axis Motor: Servo Motor Drive
High Light:

Turning Flange Metal Lathe Machine

,

PLC Cnc Metal Lathe Machine

,

1000mm Horizontal Lathe Machine

Horizontal metal lathe for turning flange



Metal lathe:

Strong and heavy, it can easily weigh a ton or more. It must be strong because you have a metal machine to cut metal parts, not a metal machine to cut wood parts.

The spindle speed is lower because metal is more difficult to cut than wood

Equipped with a series of dials, gears, etc., can be used to manufacture extremely precise metal parts (accurate to one-tenth of an inch).

These include shafts, gears, threads, bushes, bearings, nuts, bolts, washers, etc.

By the way, if you cover the carriage channel, you can use a metal lathe as a wood lathe. This is usually done when grinding the cylinder bores of small engines.

1000mm PLC Cnc Turning Flange Metal Lathe Machine 0

PLC & Digital Readout Instrument: This machine is installed double axis digital readout system of X& Z axis which realizes the digital display function by digital readout ruler installed on the sliding plates of both X and Z axis. The digital readout ruler mainly includes ruler and reading head. When the sliding plate moves, the reading head can realize exact readings and display through the LCD. The number displayed may be accurate to three decimal places with high display accuracy.



We specially designed a kind of convenient Separate Handwheel Operation Unit which installed on the side of operation panel.



1000mm PLC Cnc Turning Flange Metal Lathe Machine 1

Standard Technical Parameters of Metal Turning Lathe, Horizontal Lathe Machine





CG61 series Heavy Duty horizontal Lathe, Metal Turning Lathe Machine, PE part turning horizontal lathe machine
Name Unit CG61160 CG61200 CG61250 CG61315 CG61400 CG61500
Guide rail Type   Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Chuck jaw seat length mm 250mm Heavy chuck jaw seat 320m Heavy chuck jaw seat
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
Spindle tips   Metric 120 1:7 Metric 160 1:7
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
Cutting tool carriage type   300mm Electrical type
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Motor Parameters
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2



We are specialized in making customized lathe also, if you have special request, please let us know the request or provide the work-piece drawing, Diameter, Length and Weight. We can redesign for you.





For More Details, please feel free to contact me.



Thank you for attention.
