Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

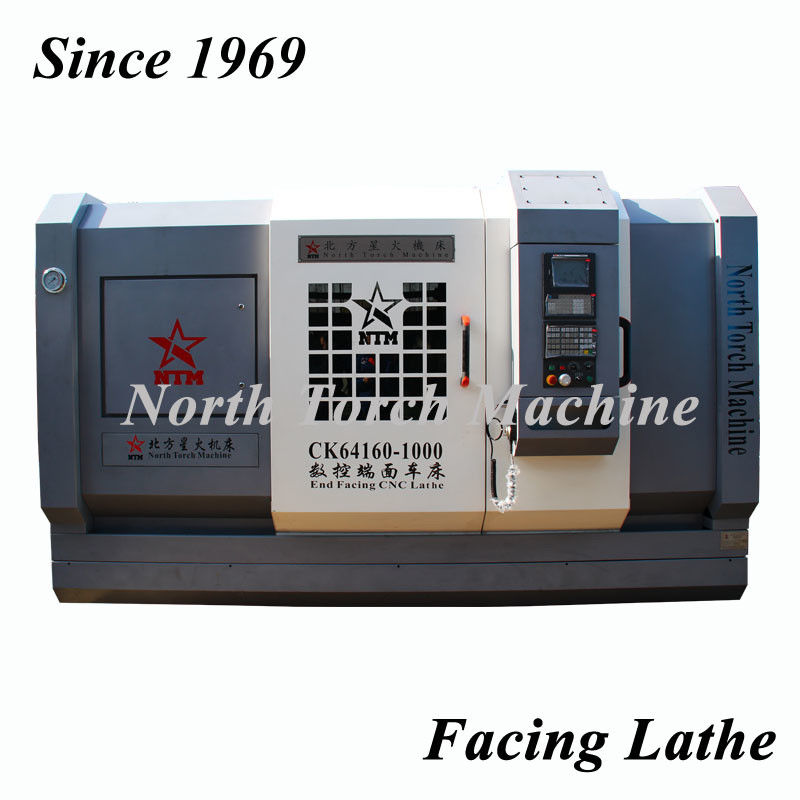

Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision

Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision
Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision

Large Image :  Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized lathe is also available
Certification: ISO9001, BV, CE, EAC etc
Model Number: CK64125

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 200 sets/ year
Detailed Product Description
Metal Lathe Machine Usage: Machining Flange, Tyre Mold, Propeller, Bearing, Machining Process Of Lathe Machine: End Facing, Surface, Tapper, Ex-circle, Threading, Inner Hole Etc
Accessories: Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc Machine Tool: 4 Positions Automatic Electrical Rotation Cutting Tool
Chip Removal System: Chain Type Automatic Chip Removal System Voltage: Customer's Requirement,220V/380V,400V,440V
High Light:

cnc metal lathe

,

industrial metal lathe

High Precision Metal Lathe Machine for turning facing flange, steel mold

Lathe Machine For Turning Flange, Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.


Horizontal Lathe Machine Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of

flange, valves, sealing head,cans board, moter, such as tyre moulds cover parts . This machine widely used in energy and transportation,

petroleum chemical industry, mining railway and automobile manufacturing machinery.



Our Advantages:


More than 50 years' experience in machinery industry since 1960s.

Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)

Base adopts triangular guide design

High performance with low cost



We have our own foundry which can control the quality strictly.



All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.

We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.



1. Horizontal Lathe Machine is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.

2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.

3. All the gears are precision grounded, with long life and low noise;

4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.


Application:



The base guide of Facing lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.

2. Standard Technical Parametes of Facing In Lathe



Specifications of Facing in Lathe
Name Unit CK64125 CK64160 CK61200 CK64250 CK64300
Swing Diameter over Machine Bed mm φ1250mm φ1600mm φ2000mm φ2500mm φ3000
Chuck Diameter mm φ1000mm φ1250mm φ1600mm φ2000mm φ2500mm
Chuck-jaw seat length mm Embedded Embedded 500mm 500mm 500mm
Work-piece Length mm 500mm 750mm 750mm 1000mm 1000mm
Work-piece Weight T 2T 2T 3T 3T 5T
Spindle Diameter mm φ190mm φ200mm φ220mm φ220mm φ260mm
Spindle Speed r/min 10-200 r/min 4-160 r/min 4-160 r/min 3-106 r/min 3-106 r/min
X Axis Stroke mm 625mm 800mm` 1000mm 1250mm 1500mm
Z Axis Stroke mm 500mm 750mm 1000mm 1000mm 1000mm
X Axis Rapid Feed Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min
Z Axis Rapid Feed Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min
Cutting Tool Carriage Size   240*240 280*280 300*300 300*300 300*300
Cutting Tool Shank Size mm 32*32mm 40*40mm 40*40mm 40*40mm 40*40mm
Feed Control   Servo Motor Servo Motor Servo Motor Servo Motor Servo Motor
Motor Parameters
Main Motor Power KW 15KW 18.5KW 18.5KW 22KW 37KW
Feed Motor of Z Axis KW 2.3KW 2.3KW 2.3KW 2.3KW 2.3KW
Feed Motor of X Axis KW 2.3KW 5.5KW 5.5KW 5.5KW 5.5KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.37KW 0.55KW 0.55KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Flatness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions mm 3180*1910*1870 3940*1980*1900 4190*2670*2450 4250*2770*2800 4400*3300*3300
Machine Weight T 6T 9.5T 11T 12.5T 15T



3. After-sale Service


​1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.


Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision 0

Durable Metal High Precision Cnc Lathe Turning Facing Flange High Precision 1


For more details, please feel free to contact us. Thanks!
