|Roll Turning Lathe Usage:||Specially Turning Steel Roll,roll Bar And Other Metal Part||Max.Diameter Of Steel Roll:||2000 Mm|
|Max.Length Of Steel Roll:||4000 Mm||Weight Of Roll Bar:||15T-40T|
|After-sale Service:||Engineers Are Available For Roll Lathe Installation And Commissioning||Certificate:||SGS, CE, EAC, ISO9001|
horizontal cnc lathe machine,
computer controlled lathe
1. Application of Steel Roll Turning Lathe : Professionally used for modifying re-grooving the old steel rolls or machining the new steel roll , roll bar by steel plants. The roll turning cnc lathe can not only realize the machining process of turning, tapping, threading, groove, etc, but also the facing, ex-circle, surface, etc
Regarding the PLC Control system, we have our own design with national patent. The function of our designed PLC control system can be compared with CNC Control system. It is more convenient and easy operation than CNC Control.

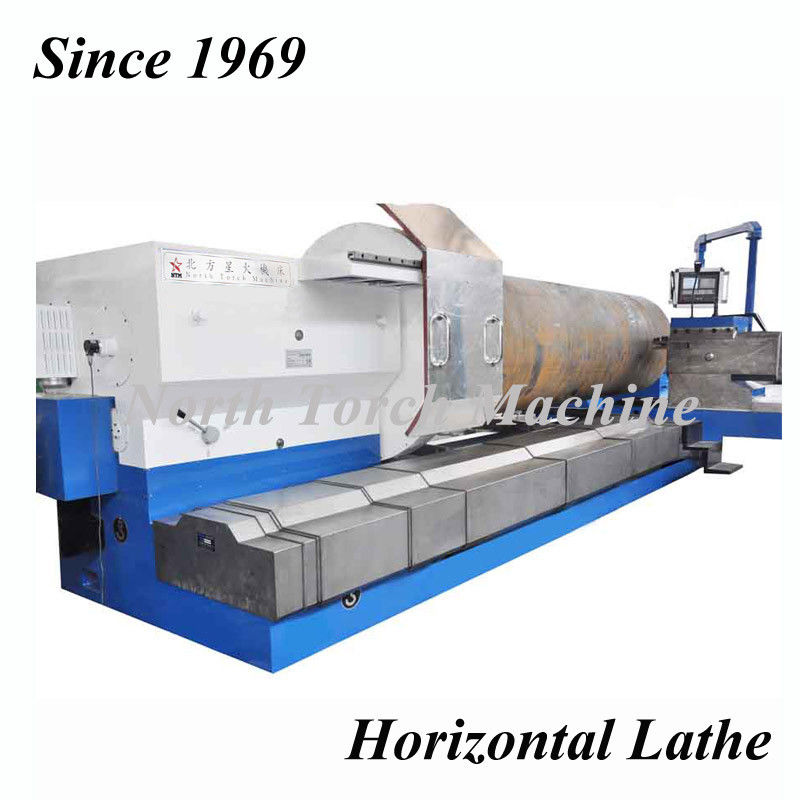

This CNC Automatic Lathe Machine, roll turning lathe machine is mainly used in processing roller hole pattern for steel mill. Adopted modeling cutter, roll lathe can process roller for FT, semi-FT and cutting off, it can also fix for hole pattern. The roll lathe can also process in roller's Outside cylindrical surface and other axis parts.
CNC mill roll lathe machine mainly used for semi-finish turning and finish turning processing of cast iron, steel and nonferrous metal roll. Cutters made of high-speed steel. This lathe can be used for turning and processing roll excircle, end faces, various complex pass profiles and curved surfaces, or for the processing of shaft parts made of materials such as cast iron, steel and nonferrous metal.
Roll lathe is made up of lathe bed, headstock, tailstock, knife rest, center rest and other parts. Headstock and tailstock are installed between lathe beds. Tailstock can move or still along the guide rail for fulfil various length.
2. OUR ADVANTAGES & FEATURES about ROLL TURNING LATHE:
We have our own FOUNDRY, which can control and guarantee the castings quality very well.
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
High torque capacity of headstock of lathe machine
Zero backlash with ball screw.
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Tailstock is electrical control with pressure display, which obtained our national patent.
The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.
Exported Countries of CNC Roll Repair Lathe :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of steel roll turning lathe
|CK84--Roll Turning Lathe Machine|
|Guide Rail Type||4 Guide rails||4 Guide rails||4 Guide rails||4 Guide rails||4 Guide rails||4 Guide rails|
|Max.Diameter of Work-piece||mm||φ650mm||φ800mm||φ1000mm||φ1250mm||φ1600mm||φ2000 mm|
|Guide Rail Width of Machine Bed||mm||1000mm||1100mm||1400mm||1600mm||1800mm||2000mm|
|Chuck Jaw Length||mm||250mm||250mm||320mm||320mm||320mm||320mm|
|Max.Length of Work-piece||mm||4000mm||5000mm||8000mm||12000mm||150000mm||20000mm|
|Spindle Tips Size||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7||Metric 160 1:7|
|X Axis Stroke||mm||50-325mm||50-400mm`||50-500mm||100-625mm||100-800mm||200-1000mm|
|Z Axis Stroke||mm||1000-4000mm||1000-5000mm||2000-8000mm||2000-12000mm||3000-15000mm||3000-20000mm|
|X axis Rapid Speed||mm/min||2000mm/min||2000mm/min||2000mm/min||2500mm/min||2500mm/min||2500mm/min|
|Z axis Rapid Speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2500mm/min||2500mm/min||3000mm/min|
|Tailstock spindle diameter||mm||φ240mm||φ290mm||φ290mm||φ320mm||φ320mm||φ410mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Moving method of tailstock||Electrical control||Electrical control||Electrical control||Electrical control||Electrical control||Electrical control|
|Max.cutting force of single tool||KN||60KN||80KN||80KN||80KN||100KN||150KN|
|Max.Torque of Chuck||KN·m||13KN·m||22KN·m||33KN·m||40KN·m||90KN·m||233KN·m|
|Total cutting force||KN||45KN||60KN||70KN||110KN||160KN||210KN|
|Main Motor Power||KW||22KW||37KW||45KW||55KW||75KW||128KW|
|Lubrication Motor Power||KW||0.37KW||0.37KW||0.55KW||0.55KW||0.55KW||0.55KW|
We are China Professional Manufacture for Horizontal Lathe Machine, Heavy duty lathe, Roll turning Lathe, Pipe Threading Lathe, CNC Lathe, Conventional Lathe, Large CNC Lathe with drilling milling functions, CNC Grinding Machine and Special designed lathe, etc
We have our own foundry with professional inspection devices, such as Hardening Furnace, straightness tester, stifness detection system, ultrasonic fault detctor, etc. We can contorl the castings quality very well to guarantee a high precision, rigidity and stability of lathe machine.
We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.
We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.
For the machine easy-damaged parts, we can provide immediately to prevent customer's halt production . For each lathe machine, we have one complete 3D & 2D drawings in dgw version.
