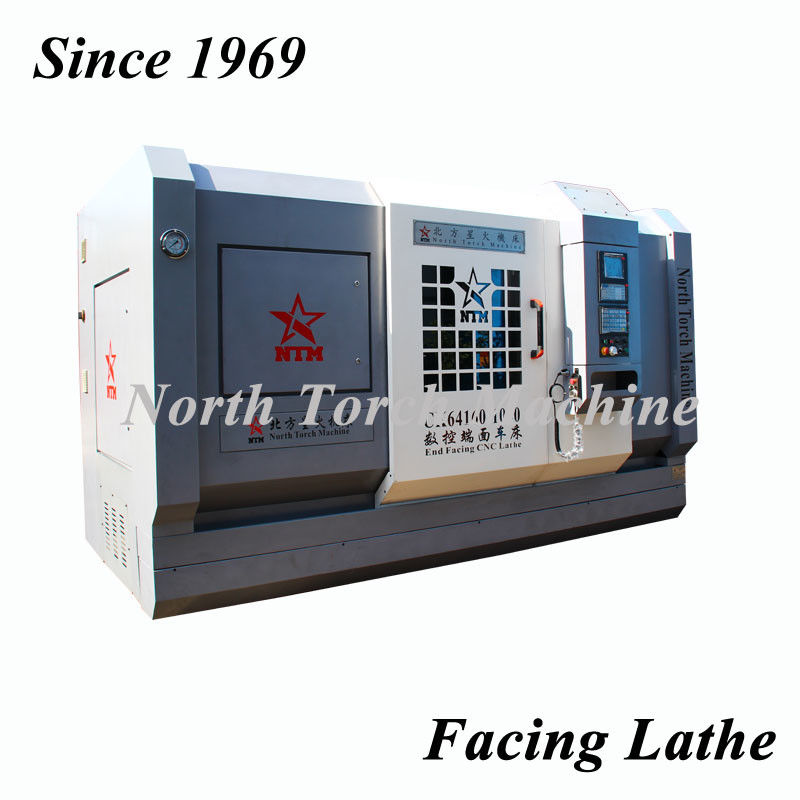

Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise

Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise
Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise

Large Image :  Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized lathe is also available
Certification: ISO9001, BV, CE, EAC etc
Model Number: CK64125

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: 200 sets/ year
Detailed Product Description
Machine Tool: 4 Positions Automatic Electrical Rotation Cutting Tool Chip Removal System: Chain Type Automatic Chip Removal System
Accessories: Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc Machining Process Of Lathe Machine: End Facing, Surface, Tapper, Threading, Etc
Voltage: Customer's Requirement,220V/380V,400V,440V Application Of Facing Lathe Machine: Machining Flange, Bearing,
High Light:

cnc metal lathe

,

industrial metal lathe

,

Universal Facing In Lathe Machine

Universal facing in CNC Lathe Machine for turning big metal parts

Lathe Machine For Turning Flange, Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.


1. Horizontal Lathe Machine is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low noise;
4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.

Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise 0
​Our Advantages:


More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost


We have our own foundry which can control the quality strictly.

All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.


Horizontal Lathe Machine Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of
flange, valves, sealing head,cans board, moter, such as tyre moulds cover parts . This machine widely used in energy and transportation,
petroleum chemical industry, mining railway and automobile manufacturing machinery.

Application:

The base guide of Facing lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parametes of Facing In Lathe


Specifications of Facing in Lathe
NameUnitCK64125CK64160CK61200CK64250CK64300
Swing Diameter over Machine Bedmmφ1250mmφ1600mmφ2000mmφ2500mmφ3000
Chuck Diametermmφ1000mmφ1250mmφ1600mmφ2000mmφ2500mm
Chuck-jaw seat lengthmmEmbeddedEmbedded500mm500mm500mm
Work-piece Lengthmm500mm750mm750mm1000mm1000mm
Work-piece WeightT2T2T3T3T5T
Spindle Diametermmφ190mmφ200mmφ220mmφ220mmφ260mm
Spindle Speedr/min10-200 r/min4-160 r/min4-160 r/min3-106 r/min3-106 r/min
X Axis Strokemm625mm800mm`1000mm1250mm1500mm
Z Axis Strokemm500mm750mm1000mm1000mm1000mm
X Axis Rapid Feed Speedmm/min2500mm/min2500mm/min2500mm/min2000mm/min2000mm/min
Z Axis Rapid Feed Speedmm/min2000mm/min2000mm/min2000mm/min2000mm/min2000mm/min
Cutting Tool Carriage Size 240*240280*280300*300300*300300*300
Cutting Tool Shank Sizemm32*32mm40*40mm40*40mm40*40mm40*40mm
Feed Control Servo MotorServo MotorServo MotorServo MotorServo Motor
Motor Parameters
Main Motor PowerKW15KW18.5KW18.5KW22KW37KW
Feed Motor of Z AxisKW2.3KW2.3KW2.3KW2.3KW2.3KW
Feed Motor of X AxisKW2.3KW5.5KW5.5KW5.5KW5.5KW
Lubrication Motor PowerKW0.37KW0.37KW0.37KW0.55KW0.55KW
Machine Accuracy
Cylindricitymm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm
Flatnessmm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm
RoughnessRaRa3.2Ra3.2Ra3.2Ra3.2Ra3.2
Machine Dimensionsmm3180*1910*18703940*1980*19004190*2670*24504250*2770*28004400*3300*3300
Machine WeightT6T9.5T11T12.5T15T


3. After-sale Service
​1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.


Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise 1

Universal Facing In Lathe Machine For Turning Big Metal Parts Low Noise 2

For more details, please feel free to contact us. Thanks!
