Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine

Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine
Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine

Large Image :  Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CG61100 CG61160 CG61200 CG61250 CG61300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood Box Package
Delivery Time: 3 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description

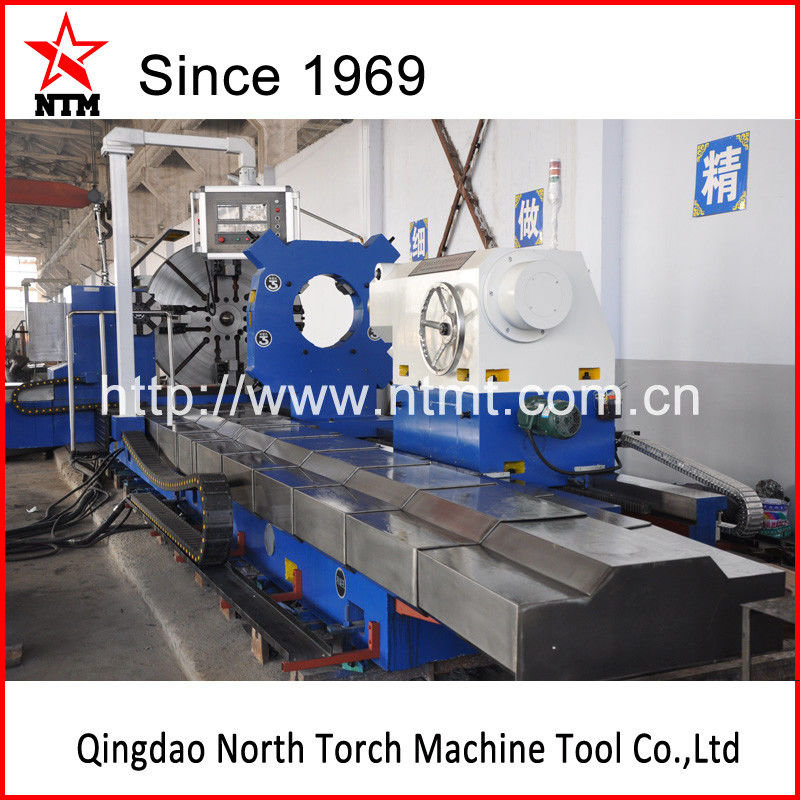

Metal Turning Horizontal Lathe Application: Turning Flange, Pipe, Shaft, Cylinder, PE PART,etc Machine Type: Horizontal Lathe Machine
Control System: PLC, DRO, SIEMENS, FANUC, All Are Available According To Customer Request Swing Diameter Over Machine Bed: 1000 Mm,1500 Mm,2000 Mm,3500 Mm
Max.Length Of Work-piece: 500 Mm, 1000 Mm X, Z Axis Motor: Servo Motor Drive
High Light:

PLC Cnc Turning Lathe Machine


1000mm Cnc Turning Lathe Machine


Facing Metal Turning Lathe Machine

Specially designed high accuracy heavy duty horizontal lathe machine, Facing CNC Lathe


Our company advantages:


1. We have our foundry which can control the casting parts quality very well. We have professional hardening/quenching furnace used for castings surface treatment to ensure high stability, rigidity and accuracy of horizontal lathe machine.


2. Professional machining equipment such as 12 meters long gantry CNC Grinding Machine, gantry milling machine, CNC Boring Machine, Drilling Machine, Horizontal CNC Lathe Machine for machine main parts like headstock , tailstock, guide rail ,cutting tool carriage, chuck turning


3. Professional technical team to provide both 3D & 2D drawings of horizontal Lathe Machines, roll turning lathe, Facing Lathe Machine, etc to customers after order confirmation and before production. In this designing method, we can make a perfect customized lathe machine for customers.



4. Immediate reply and actions for after-sale service , even after 15 years, we can also provide the easy damaged lathe machine parts and accessories immediately, becaue for each horizontal lathe machine and vertical lathe machines, we have one complete drawings. and we have enough spare parts for each lathe machine in stock.




Special Chracteristics of Horizontal Lathe Machine, metal turning lathe machine:


1. 2 guide rails with one flat rail and  swallow tail (mountain) type rail. 3 guide rails, 4 guide rails , all are available according to work-piece weight and customer's request.


2. Specially designed a kind of convenent /flexible operation panel system, which obtained our national patent.

Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine 0

PLC & Digital Readout Instrument: This machine is installed double axis digital readout system of X& Z axis which realizes the digital display function by digital readout ruler installed on the sliding plates of both X and Z axis. The digital readout ruler mainly includes ruler and reading head. When the sliding plate moves, the reading head can realize exact readings and display through the LCD. The number displayed may be accurate to three decimal places with high display accuracy.


3. We specially designed a kind of convenient Separate Handwheel Operation Unit which installed on the side of operation panel.


Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine 1

4. High Accuracy, Stability and Rigidity of lathe machine. The Positioning and re-positioning accuracy can be very high.


5. This lathe can be intalled a high precision grating ruler which can inspect and test the work-piece after turning process.




Standard Technical Parameters of Metal Turning Lathe, Horizontal Lathe Machine


CG61 series Heavy Duty horizontal Lathe, Metal Turning Lathe Machine, PE part turning horizontal lathe machine
Name Unit CG61160 CG61200 CG61250 CG61315 CG61400 CG61500
Guide rail Type   Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Chuck jaw seat length mm 250mm Heavy chuck jaw seat 320m Heavy chuck jaw seat
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
Spindle tips   Metric 120 1:7 Metric 160 1:7
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
Cutting tool carriage type   300mm Electrical type
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Motor Parameters
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions mm 9200*2650*2300mm 9600*3200*3600mm 10000*3600*2500mm 11000*4000*3700mm 11200*5000*4700mm 11500*5500*5150mm
Machine Weight T 30T 35T 45T 50T 55T 65T


We are specialized in making customized lathe also, if you have special request, please let us know the request or provide the work-piece drawing, Diameter, Length and Weight. We can redesign for you.


Workpiece 1000mm Facing PLC Cnc Turning Lathe Machine 2



3. After-sale Service and Maintenance

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.


For More Details, please feel free to contact me.



Thank you for attention.


Tag: Metal Turning Lathe Machine, Horizontal Lathe Machine, Roll Turning Lathe, Heavy Duty Horizontal Lathe, Conventional Lathe
