High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

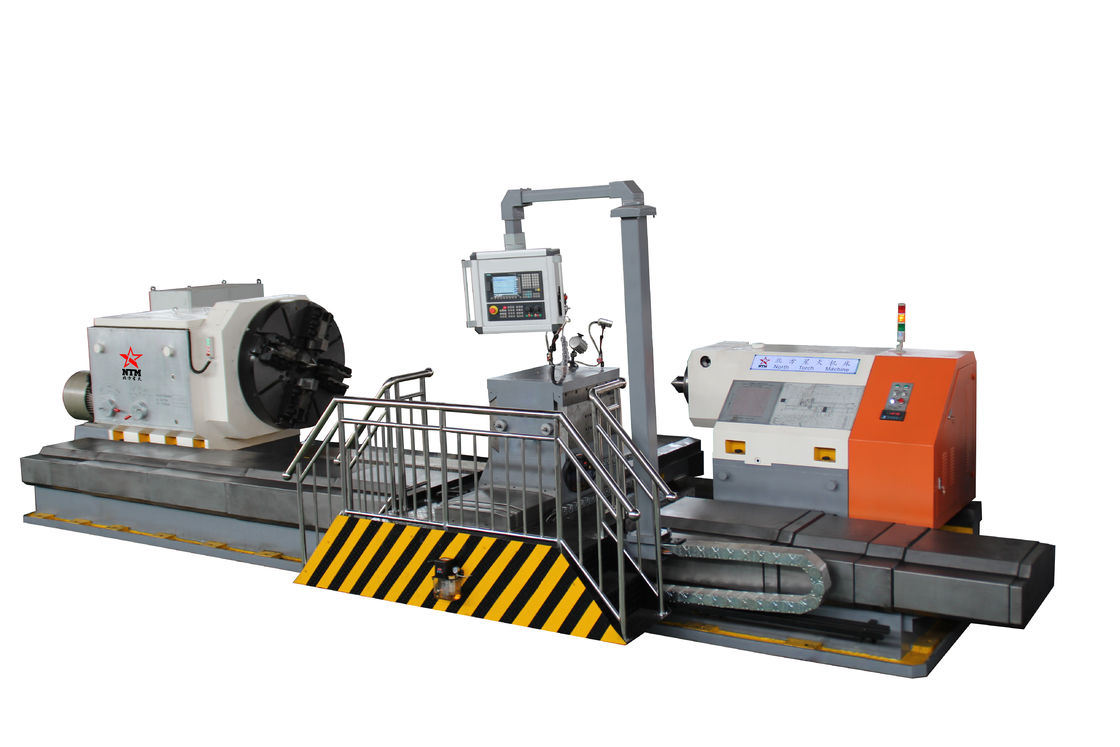

High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft

High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft
High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft

Large Image :  High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK8465 CK8480 CK84100 CK84125 CK84160

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000-200000 USD/set
Packaging Details: Vaccum Bag+ Wooden Box Pacakage or Wooden Pallet
Delivery Time: 4 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Max.Diameter Of Roll: 650 Mm, 800 Mm, 1000 Mm, 1250 Mm,1600 Mm Max.Length Of Casting Roll: 2500-8000 Mm
Max.Weight Of Roll: 45-60Ton Automatic Chip Chain System: Included
Chuck Metal Cover For Lathe: Included Quality Warranty: 1 Year Quality Warranty
Optional Configuration: Roll Rest, Operator Protection Cover, Hydraulic Tailstock, Etc After-sale Service: Engineers Are Available For Roll Lathe Installation And Commissioning
Color Of Roll CNC Lathe: According To Customer Local Request Control System: DRO, PLC, SIEMENS, FANUC, GSK, All Are OK
High Light:

Roll Turning CNC Lathe

,

Casting Roller CNC Lathe

,

Cylinder Roll Turning Lathe Machine

High Quality Roll Turning CNC Lathe For Casting Roller, Cylinder, Shaft

1. Introduction of Roll turning CNC Lathe, Heavy Duty Horizontal Lathe, Large Lathe Machine

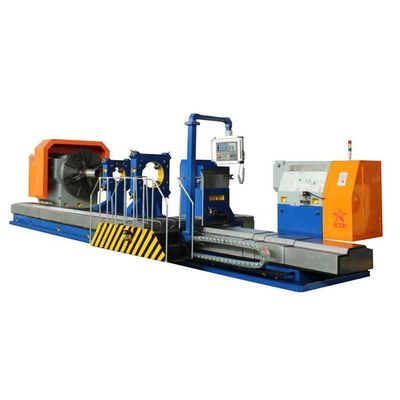

High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft 0

1. This series horizontal lathe machine, roll cnc lathe, roll  turning lathe, can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, Titanium Drum/cylinder,casting steels and irons, Rolls ,but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What’s more, it can also realize the constant speed cutting line.



2. This Heavy Duty Horizontal Lathe machine adopts FOUR guide rails with high rigidity and stability. We adopts pasting plastic structure between sliding plate and machine bed guide. Besides, this guide rail is equipped with elescopic steel metal cover to prevent machining chips into the guide rail.

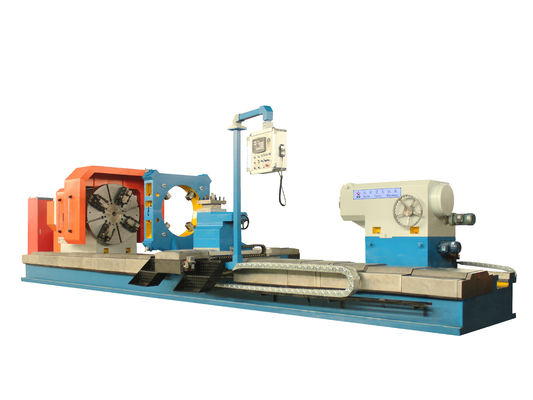

High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft 1

3. The Main Transmission of roll turning heavy horizontal lathe is driven by the DC variable frequency motor with mechanical 3 speeds to realize stepless speed range of spindle.



4. The spindle adopts high precision double rows cylindrical roller bearings with adjustable radial clearance. Through optimized design, the larger spindle diameter and the best support span improve the rotation accuracy of spinlde and dynamtic and static strength.





5. The horizontal structure of cutting tool carriage adopts ball screw, and the longitudinal adopts double teeth rod clearance structure to improve the transmission accuracy.



6. The tailstock is a kind of overall box structure. The core shaft of sleeve adopts high precision double rows cylindrical roller bearings with adjustable radial clearance, so that the tailstock has high stiffness. The movement of tailstock and sleeve are electrical control with automatic clamping and release.



High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft 2

PER CUSTOMER SPECIAL REQUEST, we can MAKE MANUAL CONVENTIONAL LATHE also. We specially designed an operation panel, which has similar function to CNC Lathe Machines.



High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft 3



2.Standard Technical Parameters of Roll turning lathe, CNC Lathe, Horizontal Heavy duty lathe. Heavy roll cnc lathe



CK84--Roll Turning Lathe Machine
Name Unit CK8465 CK8480 CK84100 CK84125 CK84160 CK84200
Guide Rail Type   4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails
Max.Diameter of Work-piece mm φ650mm φ800mm φ1000mm φ1250mm φ1600mm φ2000 mm
Guide Rail Width of Machine Bed mm 1000mm 1100mm 1400mm 1600mm 1800mm 2000mm
Chuck Diameter mm φ1000mm φ1100mm φ1400mm φ1600mm φ1800mm φ2000mm
Chuck Jaw Length mm 250mm 250mm 320mm 320mm 320mm 320mm
Max.Length of Work-piece mm 4000mm 5000mm 8000mm 12000mm 150000mm 20000mm
Work-piece Weight T 10T 18T 25T 32T 40T 50T
Spindle Diameter mm φ190mm φ220mm φ260mm φ300mm φ300mm φ360mm
Spindle Speed r/min 5-260r/min 2-165r/min 2-130r/min 2-130r/min 2-80r/min 0.5-80r/min
Spindle Tips Size   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7 Metric 160 1:7
X Axis Stroke mm 50-325mm 50-400mm` 50-500mm 100-625mm 100-800mm 200-1000mm
Z Axis Stroke mm 1000-4000mm 1000-5000mm 2000-8000mm 2000-12000mm 3000-15000mm 3000-20000mm
X axis Rapid Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2500mm/min 2500mm/min 2500mm/min
Z axis Rapid Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min 3000mm/min
Tailstock spindle diameter mm φ240mm φ290mm φ290mm φ320mm φ320mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Moving method of tailstock   Electrical control Electrical control Electrical control Electrical control Electrical control Electrical control
Max.cutting force of single tool KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 13KN·m 22KN·m 33KN·m 40KN·m 90KN·m 233KN·m
Total cutting force KN 45KN 60KN 70KN 110KN 160KN 210KN
Motor
Main Motor Power KW 22KW 37KW 45KW 55KW 75KW 128KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.55KW 0.55KW 0.55KW 0.55KW
Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Size mm 6000*2000*1400 7500*2200*1650 81000*2750*1950 10000*3100*2150 10500*3200*2400 12500*3600*2650
Machine Weight T 20T 23T 26T 35T 46T 65T





Notes: The above technical parameters of Roll Turning Lathe, Heavy duty horizontal lathe, roll cnc lathe machine are the standard configuration. We can make customized roll cnc lathe , roll conventional lathe also according to the special request. Conventional late, manual horizontal lathe with DRO or PLC control are ok also.



3. Package and shipment of Roll CNC Lathe, Roll turning grinding lathe machine, heavy lathe.



Vaccum Bag + Pallet , or Vaccum bag + wooden box package.



High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft 4

4. Why select our company

High Quality Roll Turning CNC Lathe For Casting Roller Cylinder Shaft 5

1. We are Professional Lathe Machine Manufacturer with more than 50 years experience.

2. We have our own foundry, which can control the quality very well.

3. We have strong technical team to provide both 3D and 2D drawings for each order, each horizontal lathe machine

4. We provide LIFETIME after-sale service. Machine accessories can be provided immediately, which has been in stock.

5. For large heavy duty horizontal lathe, roll turning lathe, big cnc lathe, we provide lathe machine installation and commissioning at customer factory. Engineer is available for oversea market service.



Other Details, please feel free to contact US.



Thank you.



Tag: Roll CNC Lathe, Roll turning lathe, heavy duty horizontal lathe machine, cnc machine tool, manual lathe, conventional lathe machine
