High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure

High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure
High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure

Large Image :  High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CG61200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 4 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Max.Swing Diameter Of Lathe Machine: 2000 Mm Max.Length Of Cylinder, Shaft: 8000 Mm
Voltage: 380V, 440V, 415V, 220V, Etc According To Customer Request Weight Of Machining Part: 6T 15T 32T 45T 55T
Machine Condition: New Metal Lathe Machine Service: Engineers Are Available For Lathe Machine Installation
High Light:

metal turning lathe

,

cnc metal lathe

High machine accuracy CNC Metal Lathe Machine for turning railway wheel

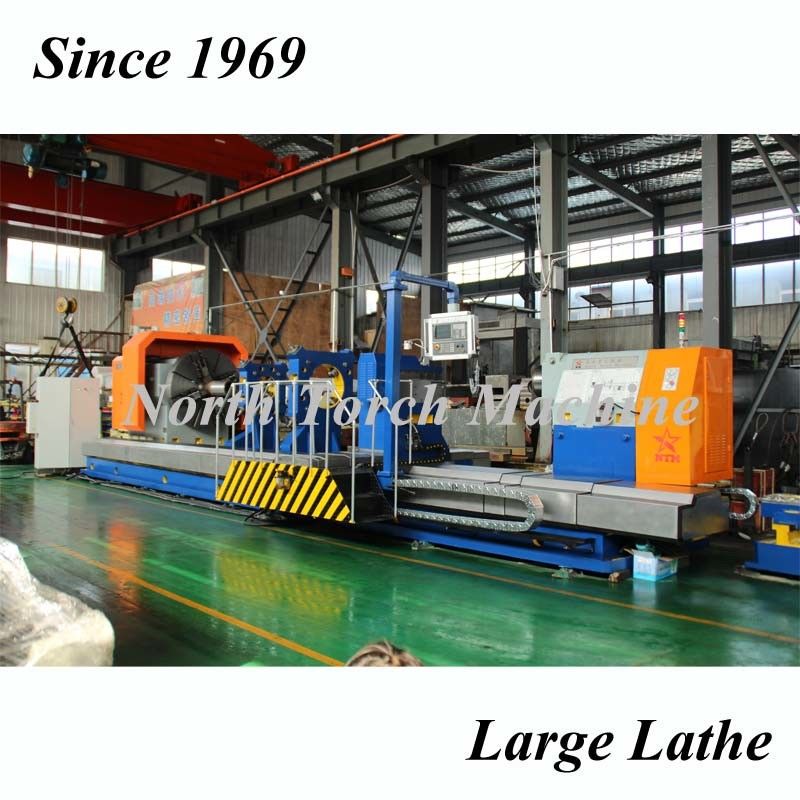

This is a kind of heavy duty metal lathe machine with 4 gudie rails, which can machining big diameter and long work-pieces, such as steel roll, shaft, impeller, sugar mill cylinder, long shaft, propeller, impellor, pump, gear case, etc



OUR ADVANTAGES & FEATURES about Horizontal Heavy Duty LATHE Machine:



1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.



2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.



3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine



4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.



5. High torque capacity of headstock of lathe machine



6. Zero backlash with ball screw.



7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system



8.Tailstock is electrical control with pressure display, which obtained our national patent.



Exported Countries :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc





Product Application



The horizontal lathe machine is mainly suitable for cutting the workpiece inside and outside round cylindrical, cone and other rotating parts, machinable various commonly used metric, inch, module and diametral pitch thread, and broaching oil groove and keyway.The machine has the following features:



1. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.



2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.



3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.



4. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.



5. Has security structure in the sliding box, which can prevent damage of lathe due to overload.





3. Technical Parameters of Horizontal metal lathe Machine



CG61 series Heavy Duty horizontal Lathe
Name Unit CG61160 CG61200 CG61250 CG61315 CG61400 CG61500
Guide rail Type   Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions CM 920*265*230 920*320*360 1000*360*250 1100*400*370 1120*500*470 1150*550*515
Machine Weight T 30T 35T 45T 50T 55T 65T





Remarks: The above technical parameters of Heavy Duty Horizontal metal lathe machine is the standard specifications, we are also specialized in manufacutring customized lathe.







High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure 0

High Accuracy Metal Lathe Machine Railway Wheel Use Reasonable Structure 1











For more details, please feel free to contact us.



Thank you for attention.
