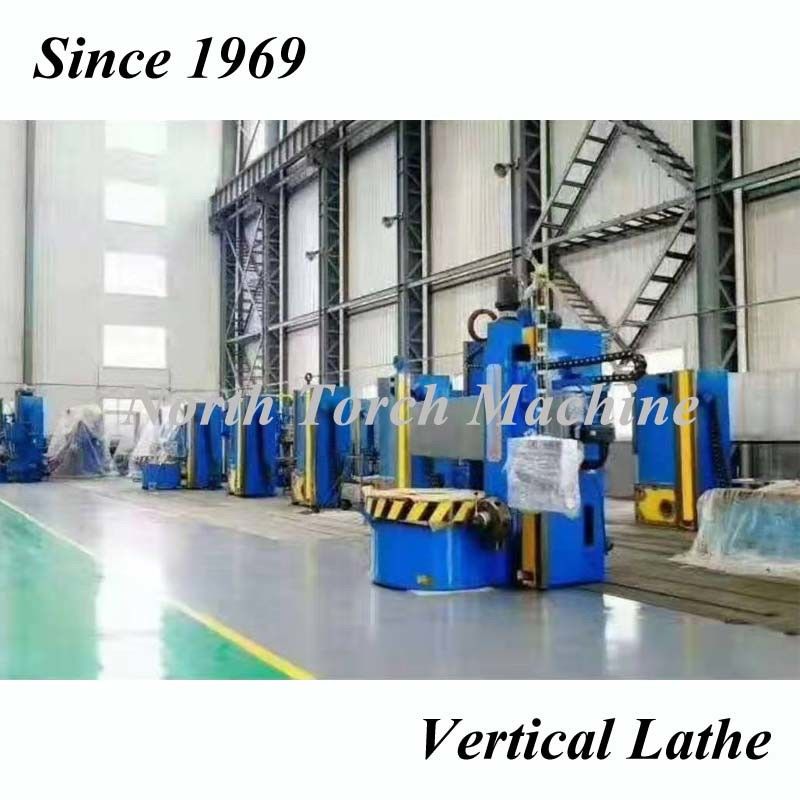

Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe

Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe
Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe

Large Image :  Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK5112

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 4 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Application Of Pipe Threading Lathe: Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc CNC Control System: SIEMENS, FANUC, GSK, According To Customer Request
Voltage: 380V, 440V, 415V, 220V, Etc Weight Of Machining Part: 6T
After-sale Service Of Roll Lathe: Engineers Are Available For Oversea Machine Installation And Commissioning Horizontal Lathe Accessories: Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc
High Light:

cnc vertical turret lathe

,

vertical turning lathe

Professional CNC Vertical Lathe with 2 Column for Turning Gear Case



1. Application of Vertical Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, Bearing, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.





2. OUR ADVANTAGES & FEATURES about CNC Vertcial LATHE , Conventional Vertical Lathe:



1. More than 50 years experience in designing and manufacturing customized  Vertcial Lathe, CNC Vertical Lathe, Pipe Turning Lathe, Pipe Threading CNC Lathe, Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, Conventional vertical lathe , Conventional Lathe and other machine tools.



2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.



3. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.



4. High torque capacity of worktable of lathe machine



5. Zero backlash with ball screw.



6. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system

Powerful CNC Vertical Lathe Machine , 2 Column High Precision Cnc Lathe 0



R&D



We have our own professional engineering and technical team to provide customized lathe machine design and manufacture with more than 50 years experience.

We can specially designed and made special cnc lathe, vertical lathe, lathe machines, roll turning lathe, flange lathe, pipe threading lathe, cnc grinding lathe, cnc milling machine and other horizontal lathe machine. We have the ability to provide unique design which helps the user save cost and highly improve the machining efficiency. This made my company obtained a lot of lathe machine orders evey year from the national and oversea markets.



Exported Countries :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc



3. Technical Parameters of Big Vertical Lathe



Item Main specification
Maximum diameter of workpiece 1250 mm
Maximum height of work-piece 1000 mm
Maximum weight of workpiece 3T
Work-Table Diameter 1250 mm
Table steps of speeds stepless
Range of speeds of rotation 10 ~ 160r/min
4 Positions cutting tool Manual type
Fast Moving Speed of X,Y Axis 3000 mm/min
Power of Main Motor(Variable Frequency) 18.5 KW
Overall Size of Machine 2460mm*2380mm*3000 mm
CNC Control System SIEMENS 808D, FANUC Control






Remarks: The above technical parameters of Vertical Lathe Machine is the standard specifications, we are also specialized in manufacturing customized lathe.







4. After-sale Service



1. Engineers are available for Vertical lathe machine installation , commissioning and training at the user factory.

2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.

3. The quality warranty of CNC Vertical Lathe,Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.



For more details, please feel free to contact us.



Thank you for attention.
