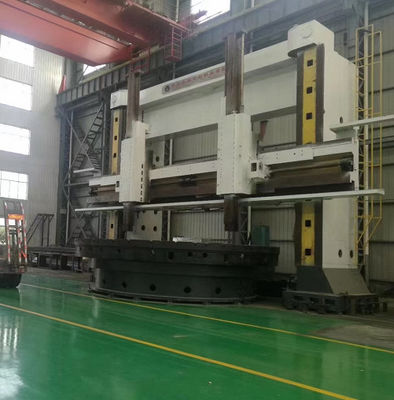

3000mm/Min CNC Double Columns Vertical Lathe Machine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

3000mm/Min CNC Double Columns Vertical Lathe Machine

3000mm/Min CNC Double Columns Vertical Lathe Machine
3000mm/Min CNC Double Columns Vertical Lathe Machine

Large Image :  3000mm/Min CNC Double Columns Vertical Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Vertical Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK5240

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Vaccum Bag Package + Wooden Box Package
Delivery Time: 4 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per one year
Detailed Product Description
Lathe Machine Type: Vertical Lathe With Double Columns Worktable Diameter: 3500 Mm
Max.Turning Diameter: 4000mm Max.Weight Of Work-piece: 20 T
Certificate Of Vertical Lathe: CE, EAC, SGS, BV. Machine Color: According To Customer's Request
Quality Warranty Period: 18 Months After Shipment After-sale Service Of Vertical Lathe: Engineers Are Available For Machine Installation
Columns: Double Columns
High Light:

3000mm/Min Vertical Lathe Machine

,

30T Workpiece Vertical Lathe Machine

,

4000mm Turning Vertical Lathe Machine

China Professional First CNC Vertical Lathe with double columns for turning flange, bearing, fittings, pipes,tire mold, etc
Double columns, double cutting tool carriages vertical lathe, both conventional and cnc control are available. It can be also designed into a cnc vertical lathe with single columns or double columnds with single cutting tool carriage.



3000mm/Min CNC Double Columns Vertical Lathe Machine 0

1. Company Introduction

Qingdao North Torch Machine Tool Co.,Ltd was established in the 60s of last Century. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.

Vertical CNC Lathe, double columns vertical lathe, single column vertical lathe, CNC Heavy-duty horizontal lathe, roll lathe, CNC End-Face lathe, automobile wheel hub lathe, Roll turning lathe , gantry milling machine and floor-type boring and milling machine, pipe threading lathe are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.

We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.

We have professional machining and inspection equipments like Quenching Furnace, 12 meter gantry cnc grinding machine for grinding the machine guide rail , gantry cnc milling machine, cnc boring machine, ultrasonic fault detecotr, hardness tester, etc.




The company has passed ISO9001 international quality management system , CE, EAC, SGS, BV certificates and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufacture the large floor-type lathe series.

With the concept of "diversity and pursuit of excellence", we aim to offer superior products and service to our customers.


2. Standard Technical Parameters of CNC Vertical Lathe

CE, EAC , SGS, BV Certificate
3000mm/Min CNC Double Columns Vertical Lathe Machine 1

Item Main specification
Maximum diameter of workpiece 4000mm
Maximum height of work-piece 2200 mm
Maximum weight of workpiece 30T
Work-Table Diameter 3150 mm
Table steps of speeds stepless
Range of speeds of rotation 0.5-50r/min
Beam Stroke 1850 mm
Vertical stroke (Ram) 1250 mm
Fast Moving Speed of X,Y Axis 3000 mm/min
Power of Main Motor 55 KW
Control System SIEMENS 808D Control


3000mm/Min CNC Double Columns Vertical Lathe Machine 2

Foreign Customer's factory about 6 meters vertical cnc lathe with double columns


3000mm/Min CNC Double Columns Vertical Lathe Machine 3


TECHNICAL PARAMETERS OF VERTICAL LATHE, specially designed and manufactured according to customer request



Remarks: The above configuration is the standard data, we can re-design the lathe machine per your work-piece characteristic.Now we can manufacture the max. diameter 8000 mm.

3. After-sale Service of CNC Vertical Lathe


1. Machine tool equipment factory warranty for 15 months or 12 months from the date of acceptance, which is subject to prior to the date of. We can also extend the maintenance period per customer's special requests to 2 years.
2. The warranty period the seller is responsible for free repair and free of wearing parts.
3. The subordinate is within the warranty period, but not used, users have to pay all the repair cost.
a. In machine tools such as earthquake, typhoon, flood, fire or human can't resist of disaster damage.
b. The buyer's improper operation (such as collision) and improper maintenance (such as add the wrong oil) and failure, rust or damage.
4. The warranty period, the seller is responsible for ensuring the parts paid supply and repair technology consulting and paid for repair.
5. The warranty period, the seller is responsible for ensuring the parts paid supply repair technology consulting and paid for repair.

3000mm/Min CNC Double Columns Vertical Lathe Machine 4
For more details, please feel free to cotnact me. Thanks.


Best Regards,
Anna.Sun

Tag: CNC Vertical Lathe, Double Columns Vertical Lathe, Conventional Vertical Lathe, Single Column vertical lathe
