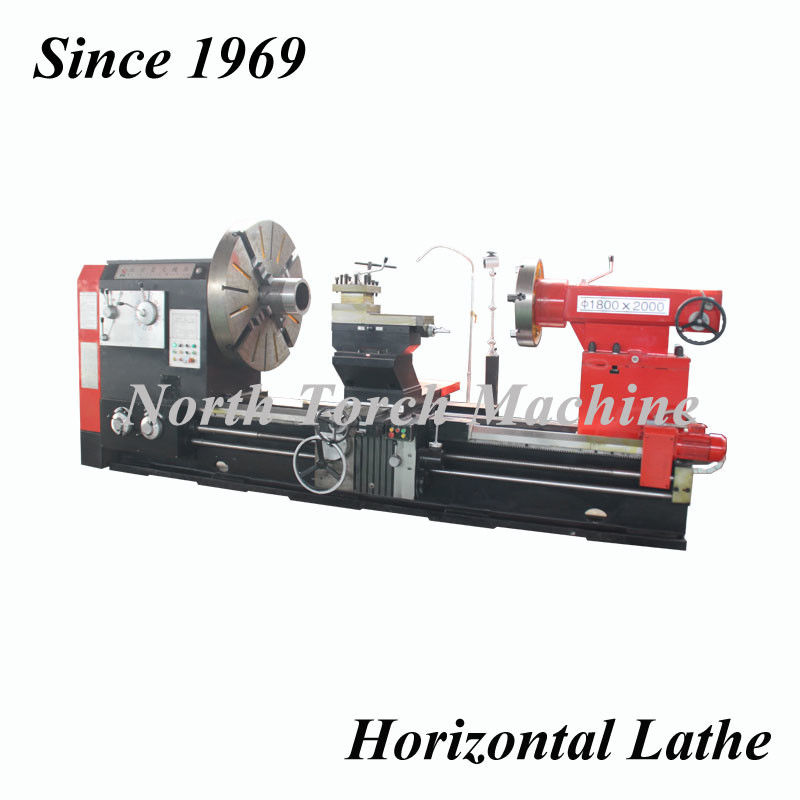

Universal Conventional Lathe for Turning Welding Pipe,Shaft, Cylinder
1. Application of Conventional Horizontal Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
Horizontal Lathe Machine Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of flange, valves, sealing head,cans board, moter, such as tyre moulds cover parts . This machine widely used in energy and transportation, petroleum chemical industry, mining railwayand automobile manufacturing machinery.
Lathe Machine Features:
1. Horizontal Lathe Machine is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low noise;
4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.
2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 3 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Conventional Horizontal Lathe
|CW61 series horizontal Lathe-LIGHT TYPE|
|Guide rail Type||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails|
|Swing diameter over machine bed||mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500||φ3000|
|Swing diameter over cutting tool carriage||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500|
|Guide rail width of machine bed||mm||600mm||755mm||1000mm||1000mm||1100mm||1100mm|
|4 jaws single action Chuck diameter||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm|
|Max.Length of work-piece||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X Axis Stroke||mm||400mm||600mm`||800mm||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Tailstock spinlde diameter||mm||φ150mm||φ180mm||φ240mm||φ240mm||φ280mm||φ280mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
