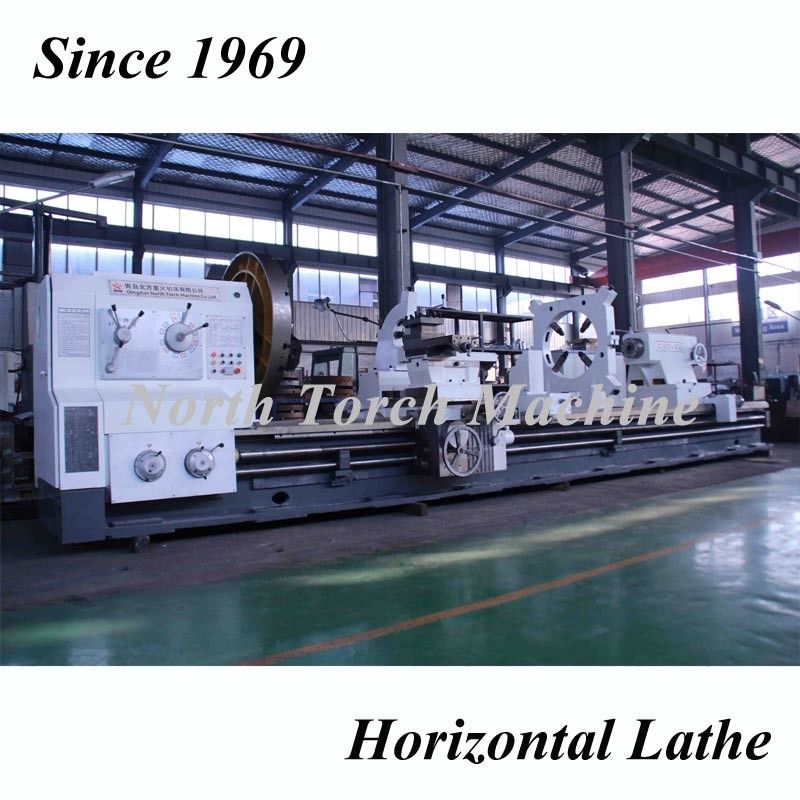

Professional Manual Engine Conventional Lathe Machine for turning Cylinder
Conventional Lathe, Lathe Machine, Roll turning Lathe, CNC Lathe, Gantry Milling Machine, Pipe Threading Cutting Lathe, Flange turning lathe are our main products, we can manufacture both conventional and cnc control lathe machines and machine tools per customer special request.
Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
Conventional Lathe Machine Usage:
1. Horizontal Lathe Machine is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low noise;
4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.
Conventional Horizontal Lathe Machine, Engine Geared lathe, manually operation metal lathe is Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of flange, valves, sealing head,cans board, motor, such as tyre moulds cover parts . This machine widely used in energy and transportation, petroleum chemical industry, mining railwayand automobile manufacturing machinery.
All castings are inspected by the professional equipment like stiffness detection system,ultrasonic fault detector and so on. To guarantee the lathe machine has a high rigidity, accuracy, high precision and stability.
2. ADVANTAGES & FEATURES about Horizontal LATHE Machine:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 3 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Conventional Horizontal Lathe
|CW61 series horizontal Lathe-LIGHT TYPE|
|Guide rail Type||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails|
|Swing diameter over machine bed||mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500||φ3000|
|Swing diameter over cutting tool carriage||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500|
|Guide rail width of machine bed||mm||600mm||755mm||1000mm||1000mm||1100mm||1100mm|
|4 jaws single action Chuck diameter||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm|
|Max.Length of work-piece||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X Axis Stroke||mm||400mm||600mm`||800mm||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Tailstock spinlde diameter||mm||φ150mm||φ180mm||φ240mm||φ240mm||φ280mm||φ280mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
