| Application Of Roll Turning Lathe: | Professionally Used For Turning Steel Roll,roll Bar | Max.Diameter Of Steel Roll: | 1000 Mm |
|---|---|---|---|
| Max.Length Of Steel Roll: | 3000 Mm | CNC Control System: | SIEMENS, FANUC, GSK, According To Customer Request |
| Voltage: | 380V, 440V, 415V, 220V, Etc | Weight Of Roll Bar: | 20T |
| After-sale Service Of Roll Lathe: | Engineers Are Available For Oversea Machine Installation And Commissioning | Lathe Machine Accessories: | Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc |
| High Light: | cnc roll turning lathe machine,computer controlled lathe |
||

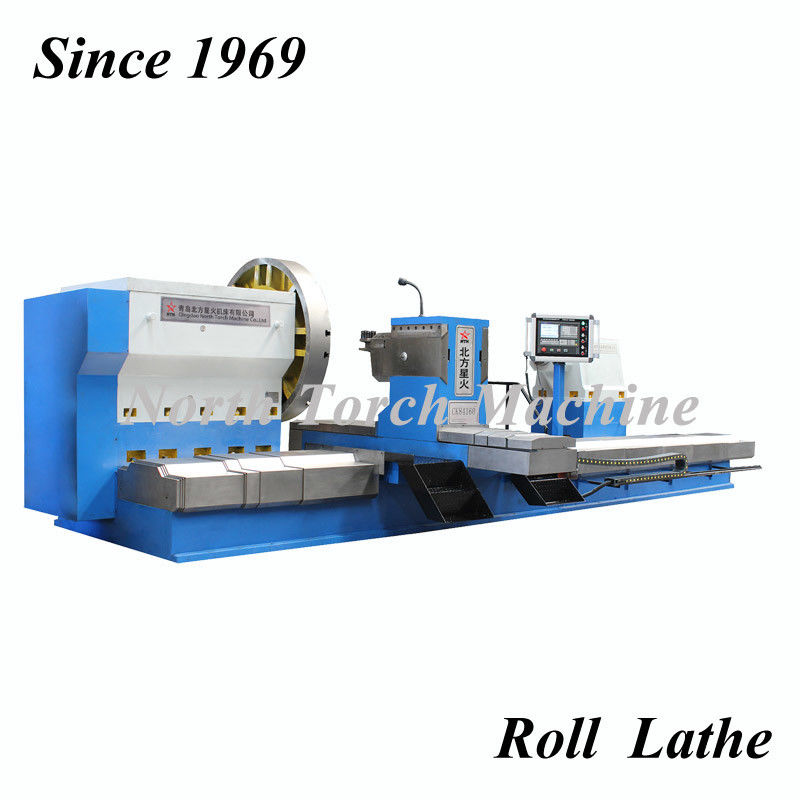

Steel Roll Turning Lathe with Automatic Chip Removal System
1. Application of CNC Roll Turning Lathe: Professionally used for modifying re-grooving the old steel rolls or machining the new steel roll , roll bar by steel plants. The roll turning cnc lathe can not only realize the machining process of turning, tapping, threading, groove, etc, but also the facing, ex-circle, surface, etc
2. OUR ADVANTAGES & FEATURES about ROLL TURNING LATHE:
1. More than 50 years experience in designing and manufacturing customized roll turning lathe.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
About Us
Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
3. Technical Parameters of steel roll turning lathe
| CK84 series--Roll Turning Lathe Machine | |||||||
| Name | Unit | CK8465 | CK8480 | CK84100 | CK84125 | CK84160 | CK84200 |
| Guide Rail Type | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | |
| Max.Diameter of Work-piece | mm | φ650mm | φ800mm | φ1000mm | φ1250mm | φ1600mm | φ2000 mm |
| Guide Rail Width of Machine Bed | mm | 1000mm | 1100mm | 1400mm | 1600mm | 1800mm | 2000mm |
| Chuck Diameter | mm | φ1000mm | φ1100mm | φ1400mm | φ1600mm | φ1800mm | φ2000mm |
| Chuck Jaw Length | mm | 250mm | 250mm | 320mm | 320mm | 320mm | 320mm |
| Max.Length of Work-piece | mm | 4000mm | 5000mm | 8000mm | 12000mm | 150000mm | 20000mm |
| Work-piece Weight | T | 10T | 18T | 25T | 32T | 40T | 50T |
| Spindle Diameter | mm | φ190mm | φ220mm | φ260mm | φ300mm | φ300mm | φ360mm |
| Spindle Speed | r/min | 5-260r/min | 2-165r/min | 2-130r/min | 2-130r/min | 2-80r/min | 0.5-80r/min |
| Spindle Tips Size | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | Metric 160 1:7 | |
| X Axis Stroke | mm | 50-325mm | 50-400mm` | 50-500mm | 100-625mm | 100-800mm | 200-1000mm |
| Z Axis Stroke | mm | 1000-4000mm | 1000-5000mm | 2000-8000mm | 2000-12000mm | 3000-15000mm | 3000-20000mm |
| X axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| Z axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 3000mm/min |
| Tailstock spindle diameter | mm | φ240mm | φ290mm | φ290mm | φ320mm | φ320mm | φ410mm |
| Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Moving method of tailstock | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | |
| Max.cutting force of single tool | KN | 60KN | 80KN | 80KN | 80KN | 100KN | 150KN |
| Max.Torque of Chuck | KN·m | 13KN·m | 22KN·m | 33KN·m | 40KN·m | 90KN·m | 233KN·m |
| Total cutting force | KN | 45KN | 60KN | 70KN | 110KN | 160KN | 210KN |
| Motor | |||||||
| Main Motor Power | KW | 22KW | 37KW | 45KW | 55KW | 75KW | 128KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW | 0.55KW | 0.55KW |
| Accuracy | |||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| Machine Size | CM | 600*200*140 | 750*220*165 | 8100*275*195 | 1000*310*215 | 1050*320*240 | 1250*360*265 |
| Machine Weight | T | 20T | 23T | 26T | 35T | 46T | 65T |
Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of roll turning lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
