High Quality Conventional Horizontal Lathe Machine For Turning steam turbine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

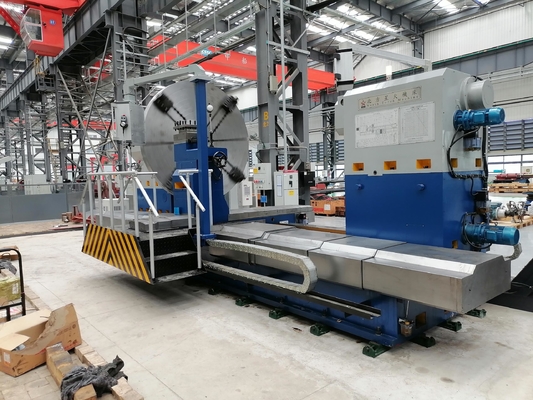

High Quality Conventional Horizontal Lathe Machine For Turning steam turbine

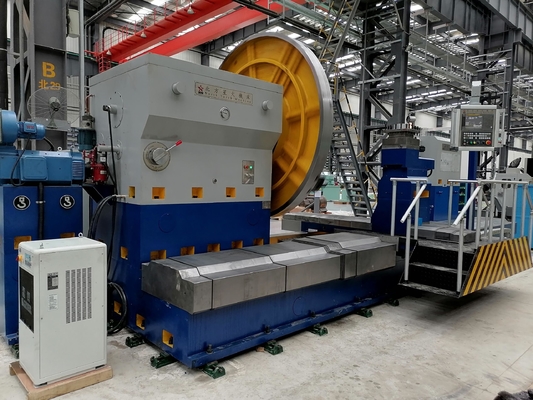

High Quality Conventional Horizontal Lathe Machine For Turning steam turbine

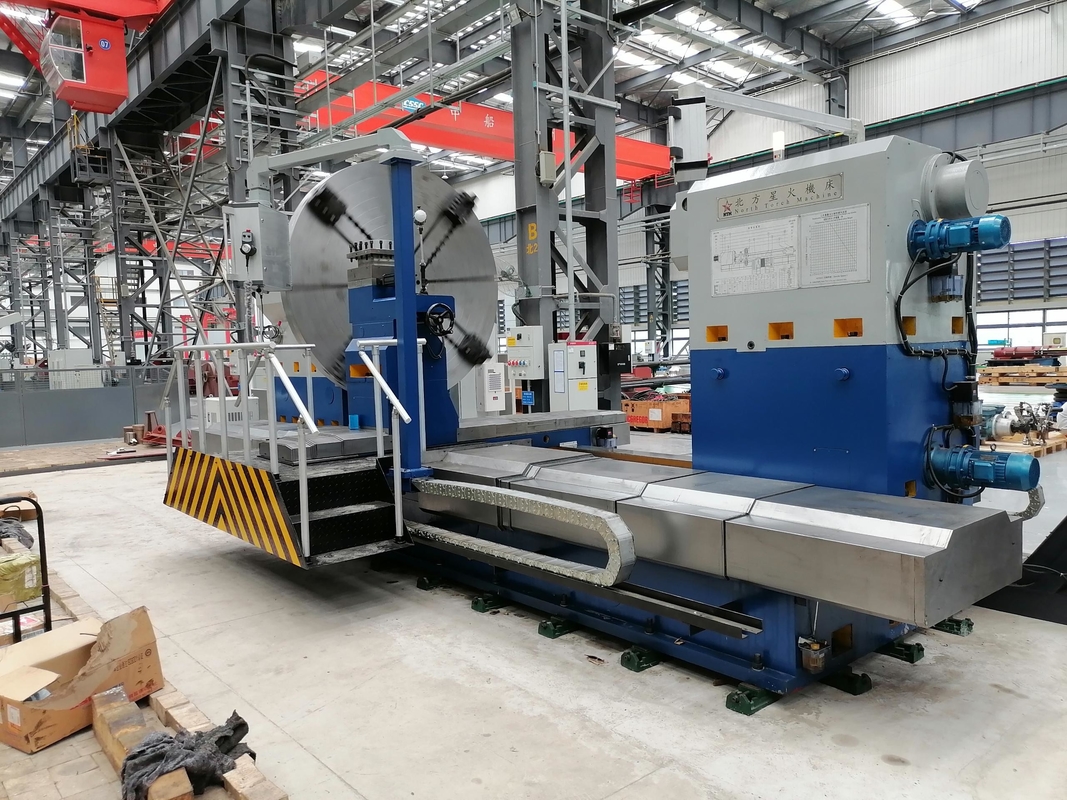

High Quality Conventional Horizontal Lathe Machine For Turning steam turbine

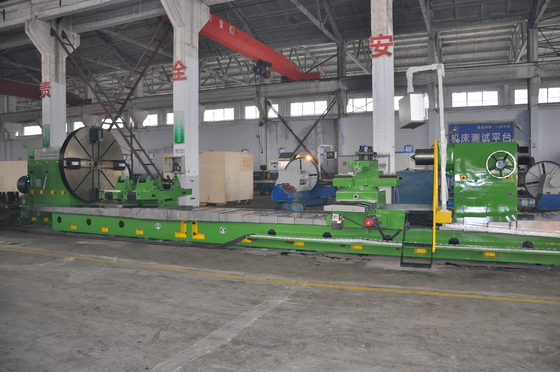

Large Image :  High Quality Conventional Horizontal Lathe Machine For Turning steam turbine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized machine is also available
Certification: CE, ISO9001, BV, SGS
Model Number: CX61220-12000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 300000 USD
Packaging Details: Wood Box Package
Delivery Time: 4 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per year
Detailed Product Description
Max.work-piece Diameter: 2200 Mm Max.work-piece Length: 12000 Mm
Max.load Capacity: 25T Application: Turning Wind Power Shaft, Steel Roll, Casting Roll, Cylinder, Pipe,etc

China Professional Large Heavy Duty Conventional Lathe For Turning Wind power Shaft, Turbine, Cylinder
For Turning wind power shaft, Steel Roller,Shaft,Cylinders, Oil Pipe, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc


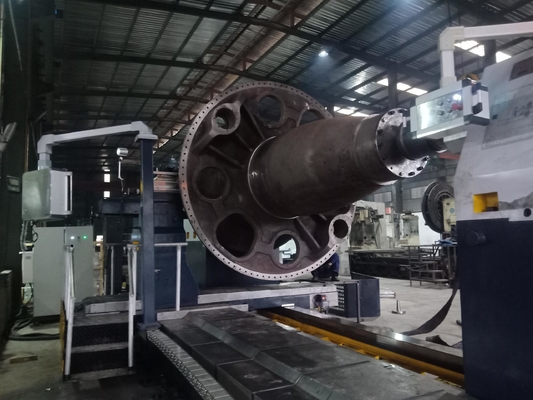

High Quality Conventional Horizontal Lathe Machine For Turning steam turbine 0
Δ 1. Outstanding Characteristics of roll turning lathe, lathe machine, horizontal lathe


Our company was established in 1969 as a military enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests. like roll turning lathe, heavy duty horizontal lathe, vertical lathe, facing cnc lathe, flange turning lathe , pipe threading lathe are our main cnc machine tools.


1). Reasonable Structure and excellent performance.Special Design for Headstock that use Gear Rim to ensure a large Torque of lathe machine .

2.). High Rigidity, Stability and Precision of horizontal lathe machine. All castings parts are do quenching heat treatment to ensure the high accuracy of lathe machine. All guide rails are ground by 18 meters large grinding machine.

3.) Heavy duty  guide rails with 2000 mm width.


4 guide rails of machine bed base + lateral chip removal design + water circulation

The machine bed is a kind of 4 guide rails structure ( the middle 2 guide rails are combined for heavier weight) to meet with heavy cutting request. The machine base adopts lateral chip removal structure with 45° angle of inclination, which is very convenient to collect the iron chips. The 4 sides of machine base are one-piece castings with recycling tank for recycling the cooling water and grease oil.

High Quality Conventional Horizontal Lathe Machine For Turning steam turbine 1

4.) Engineers are available for free over-sea installation,commissioning and Training the operators of lathe machine, roll turning lathe, heavy duty lathe at customer's factory.

5.) The Main machine components are strictly inspected by the advanced CMM to ensure the excellent quality and high precision.

6.)Backlash gearbox with double set of teeth

Regarding the lathe machine with longer center distance, my company independently designed transmission structure of backlash gearbox with double set of teeth . By two sets worm and worm wheel mechanism, that a worm( which is a gear in the form of a screw) meshes with a worm gear ( which is a smaller in appearance to a spur gear) to realize the movement of whole tool carriage. The two elements are also called the worm screw and worm wheel. This structure effectively replaces the transmission mechanism of traditional lead screw that avoid the droop phenonmenon if he screw is too long. This structure is not affected by the work-piece length and meet with the request of long-shaft turning lathe machine.


8.) Professional CE Standard Electrical Configuration

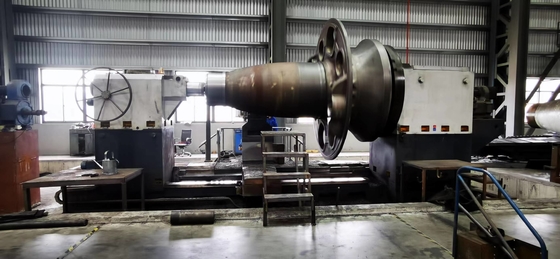

Δ Machine is under Test before shipment by our Customer from Russia.Inspoection Result is Perfect. Customer is satisfied with our lathe machine.

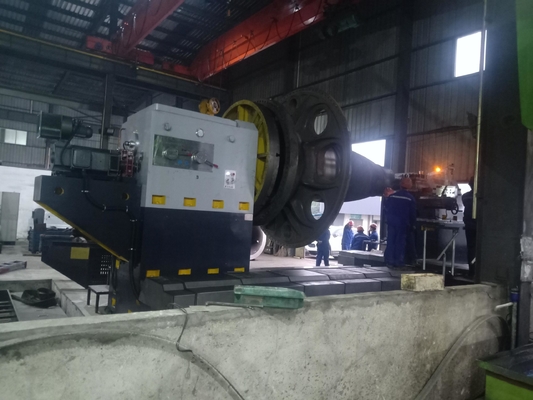

Δ South American Customer 'S PRAISE for our heavy duty horizontal lathe machine at his factory.


Our Principle : Maximize Customer's Profitability under the minimum invest cost.

Application:
This series horizontal lathe , lathe machine, roll turning lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and Grinding functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.
High Quality Conventional Horizontal Lathe Machine For Turning steam turbine 2


Δ 2. Technical Parameters of Heavy Dut Horizontal Lathe, Roll Turning Lathe, Large Lathe Machine
Rermarks:


Name CX61100 CX61125 CX61160 CX61200 CX61250 CX61300
Description Unit
Max. Swing Over Bed mm 1000 1250 1600 2000 2500 3000
Max. Swing Over the skateboard mm 650 800 1200 1650 1800 2800
Max. Weight of Work-piece T 10T 15T 20-40T 20-40T 20-40T 40-100T
Max. Length of Work-piece mm 3000-12000
Gears of Spindle Speed / Infinitely Variable Speed/step-less speed
Range of Spindle Speed r/Min 10-300 10-200 10-160 4-80 4-80 1.6-63
Chuck Diameter mm 800 1000 1250 1600 2000 2500
X,Z-Axis Feed Range mm/Min 0-3000
Horizontal Stroke mm 500 625 800 1000 1250 1000
Longitudinal Stroke mm 3000-12000
Main Driving Motor Kw 11 22 45 75 75 75
Cutting Force (Carriage) Kn 4 6 20 40 40 60
Sleeve Diameter of Tailstock mm 180 180 290 290 290 480
Spindle Diameter of tailstock mm 125 125 160 160 160 240


1. The above 6 models of Heavy Duty Horizontal Conventional Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks

2. This series heavy duty horizontal  Lathe Machine have been exported to Georgia, Pakistan, South Africa, Norway, Thailand, Romania, Iran, Russia, Chile for machining Roll, Shaft, Cylinders, railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.


Δ 3. Package and Shipment of manual  lathe machine


Anti-rust Oil /Anti-Corrosive Oil for the whole horizontal lathe machine. Wrapping protective film + 2 layers vacumm bag pacakage + wooden Box package


Δ 4. After-sale Service& Maintenance

EAC, CE, SGS, BV certificates, Technical Patent certificate


1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.

For more details, please feel free to contact us. And we warmly welcome you to visit our company for technonolgy discussion and business negociation. Thanks!



Our Lathe Machine, Heavy duty horizontal lathe, cnc lathe machine, roll turning lathe Exported to Italy,Portugal, Chile, Norway, Mexico,Argentina, USA, UAE, India, Pakistan, Iran, Thailand, Colombia, Russia, Thailand, Ethiopia, Azerbaijan, etc. Used for Machining Tyre Mold, Bearing, Flange, Turbime, Propeller, Shaft, Cylinder,Oil Pipes, Textile Pipe, Pulley Part, etc.



Best Regards,
Anna


Tag: Roll turning lathe, heavy duty horizontal lathe,Flange turning lathe, lathe machine, horizontal lathe, conventional lathe, metal lathe, flat bed lathe, cnc lathe, conventional lathe, PLC control lathe
