Horizontal Lathe Machine With Grinding Wheel For Turning Grinding Long Shaft Part

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

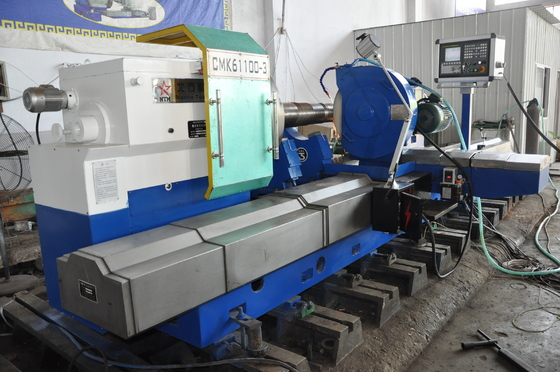

Horizontal Lathe Machine With Grinding Wheel For Turning Grinding Long Shaft Part

Horizontal Lathe Machine With Grinding Wheel For Turning Grinding Long Shaft Part
Horizontal Lathe Machine With Grinding Wheel For Turning Grinding Long Shaft Part

Large Image :  Horizontal Lathe Machine With Grinding Wheel For Turning Grinding Long Shaft Part

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized machine is also available
Certification: CE, ISO9001, BV, SGS
Model Number: CM61125*1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 58000 USD
Packaging Details: Wood Box Package
Delivery Time: 3 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per year
Detailed Product Description
Max. Swing Diameter Over Machine Bed: 1250 Mm Max.Diameter Of Work-piece: 850 Mm
Grinding Wheel Diameter: 800 Mm Max.Length Of Work-piece: 1500 Mm
High Light:

Grinding Wheel Horizontal Lathe Machine


Long Shaft Part Grinding Lathe Machine


800mm Wheel Horizontal Lathe Machine

China Professional Horizontal Lathe Machine With Grinding Wheel For Turning Grinding Long Shaft Part

For Turning and Grinding Casting Roll, Shaft, pipe, Cylinders, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbin


Our advantages in making heavy duty horizontal lathe, CNC Lathe with grinding wheel.

Our company was established in 1969 as a military enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.

This series lathe machine has both turning and Grinding functions, it can be called CNC machining center also. It can help you save time and improve efficiency for the part which needs to be turning and Grinding like marine/vessel propeller shaft,

1). Reasonable Structure and excellent performance.

2.). High Rigidity, Stability and Precision Maintenance

3.) Permanent After-sale Service to ensure maximum customer's profitability.

4.) Engineers are available for over-sea installation,commissioning and Training the operators in customer's factory.

5.) After-sale service of heavy duty horizontal lathe : All components for machine are freely provided within 3 days by Air to prevent customer's production suspended and minimum customer 's loss.

6.) The Main machine components are strictly inspected by the advanced CMM to ensure the excellent quality and high precision.

The following picture is the main part that are inspected .

Our Principle : Maximize Customer's Profitability under the minimum invest cost.



Application: This series CNC horizontal lathe with grinding wheel can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and milling functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.

2. Technical Parameters of horizontal heavy duty lathe with grinding wheel

Horizontal Lathe Machine With Grinding Wheel For Turning Grinding Long Shaft Part 0


Name CM61100 CM61125 CM61160 CM61200 CM61250 CM61300
Description Unit
Max. Swing Over Bed mm 1000 1250 1600 2000 2500 3000
Max. Swing Over the skateboard mm 650 800 1200 1650 1800 2800
Max. Weight of Work-piece T 10 15 20 20 20 40
Max. Length of Work-piece mm 3000-12000
Gears of Spindle Speed / Infinitely Variable Speed/step-less speed
Range of Spindle Speed r/Min 10-300 10-200 10-160 4-80 4-80 1.6-63
Chuck Diameter mm 800 1000 1250 1600 2000 2500
X,Z-Axis Feed Range mm/Min 0-3000
Horizontal Stroke mm 500 625 800 1000 1250 1000
Longitudinal Stroke mm 3000-12000
Main Driving Motor Kw 11 22 45 75 75 75
Cutting Force (Carriage) Kn 4 6 20 40 40 60
Sleeve Diameter of Tailstock mm 180 180 290 290 290 480
Spindle Diameter of tailstock mm 125 125 160 160 160 240




1. The above 6 models of Heavy Duty Horizontal CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks

2. This series heavy duty horizontal CNC Lathe Machine have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.

3. Package and Shipment of Large Horizontal Lathe Machine with grinding wheel


Anti-rust Oil /Anti-Corrosive Oil for the whole machine. Wrapping protective film.

Wooden Box package, vacumm package is also available per customer's special request.

4. After-sale Service& Maintenance of Horizontal Grinding Lathe Machine

1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.

2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.

4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.

5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.

For more details, please feel free to contact us. Thanks!
