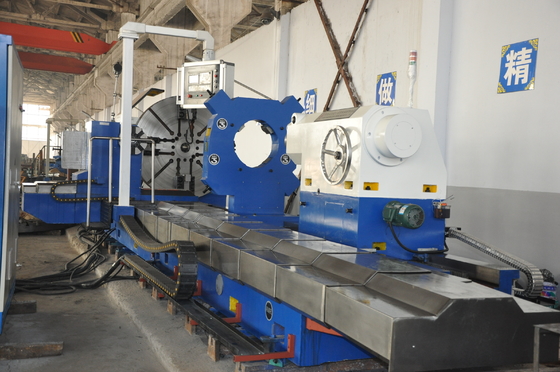

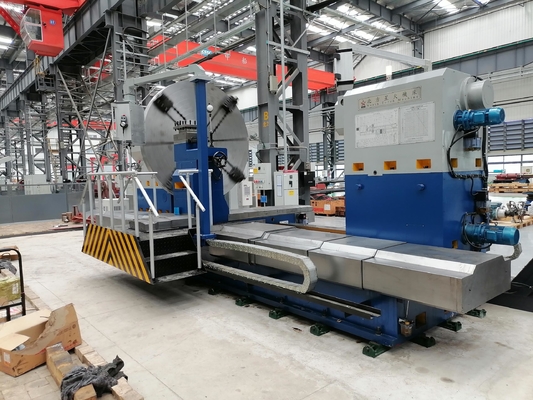

4 Guide Rails Horizontal Lathe Machine Conventional For Turning Shaft

4 Guide Rails Horizontal Lathe Machine Conventional For Turning Shaft
4 Guide Rails Horizontal Lathe Machine Conventional For Turning Shaft

Large Image :  4 Guide Rails Horizontal Lathe Machine Conventional For Turning Shaft

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized machine is also available
Certification: CE, ISO9001, BV, SGS
Model Number: CK61300*5000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 150000 USD
Packaging Details: Wood Box Package
Delivery Time: 4 months
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per year
Detailed Product Description
Max.swing Diameter Over Machine Bed: 3000 Mm Max.work-piece Length: 5000 Mm
Max.load Capacity: 50T After-sale Service Of Horizontal Lathe Machine: All Life Service
High Light:

4 Guide Rails Horizontal Lathe Machine

,

Horizontal Lathe Machine For Turning Shaft

,

Conventional Heavy Duty Lathe Machine

Professional Large Horizontal Conventional Lathe Machine For Turning Shaft, Cylinder, Cathode Roller
Both conventional and CNC Lathe Machine are available per customer's special request. SIEMENS 828 D  , FANUC, GSK cnc control system ae all OK.


Special features of heavy duty horizontal lathe, used for turning 50T  cathode roll, casting roll, cylinder, shaft, etc.

4 guide rails with high  rigidity, stability and accuracy afte quenching process and grinding process by professional machine equipment.

This is a kind of Large Heavy Duty Horizontal Lathe Machines which implements national latest standard of machine accuracy and integrates the multi-discipline and multi- category precision manufacturing technology such as electrical, automatic control, hydraulic control and modern mechanical design.

The machine tool structure performance is suitable, the machine tool has high dynamic and static rigidity, long service life, high processing efficiency, reliable function, the operation is convenient and the modelling is beautiful and so on.

This machine is designed by mechatronics, and it has good flexibility. It can be used for turning all kinds of axles, large plane plates and rollers.The machine has large bearing capacity, strong rigidity, beautiful appearance, convenient operation and long service life.It is an ideal equipment for processing all kinds of shaft, large plane plate and roller parts.

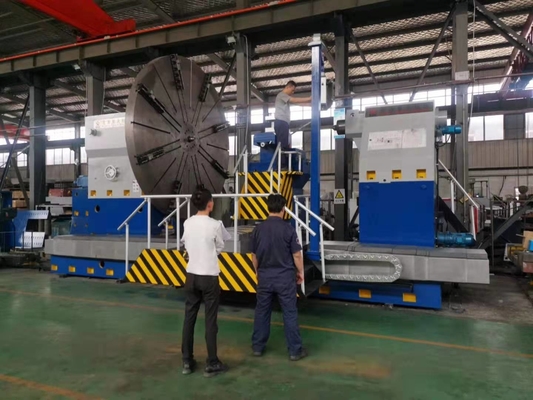

4 Guide Rails Horizontal Lathe Machine Conventional For Turning Shaft 0
Machine Introduction

1. This series horizontal lathe machine can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, Titanium Drum/cylinder,casting steels and irons, Rolls ,but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What’s more, it can also realize the constant speed cutting line.

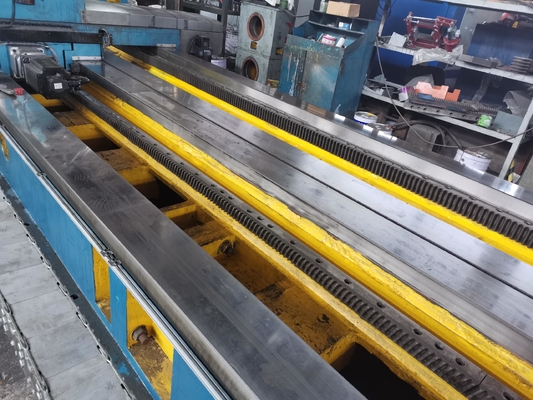

2. This machine adopts FOUR guide rails with high rigidity and stability. We adopts pasting plastic structure between sliding plate and machine bed guide. Besides, this guide rail is equipped with elescopic steel metal cover to prevent machining chips into the guide rail.

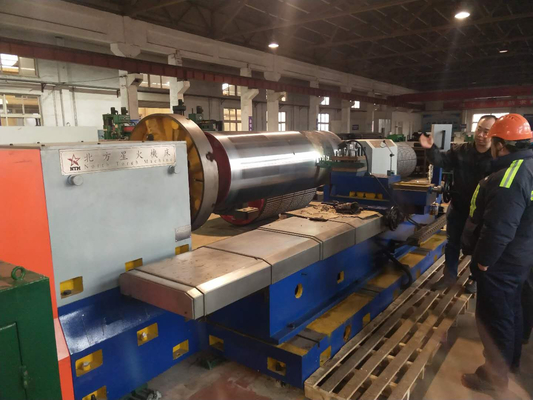

4 Guide Rails Horizontal Lathe Machine Conventional For Turning Shaft 1



3. The Main Transmission is driven by the DC variable frequency motor with mechanical 3 speeds to realize stepless speed range of spindle.



4. The spindle adopts high precision double rows cylindrical roller bearings with adjustable radial clearance. Through optimized design, the larger spindle diameter and the best support span improve the rotation accuracy of spinlde and dynamtic and static strength.




5. The horizontal structure of cutting tool carriage adopts ball screw, and the longitudinal adopts double teeth rod clearance structure to improve the transmission accuracy.



6. The tailstock is a kind of overall box structure. The core shaft of sleeve adopts high precision double rows cylindrical roller bearings with adjustable radial clearance, so that the tailstock has high stiffness. The movement of tailstock and sleeve are electrical control with automatic clamping and release.


A. Main Components

Internationally forerunner computation technologies and optimized finite element analysis methods are adopted and the selected materials are suitable for the design so that the machine can carry loads as heavy as possible.

All castings are made of high-strength meehanite HT250. Therefore, the lathe has proved high rigidity, stability and precision maintenance, which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.

The lathe is in one-piece structure and made of meehanite, greatly enhancing its abrasion resistance, and the internal force elimination process produces high vibration resistance and considerably enhances stability. The cross-shaped base and rectangular bearing structure ensure high structural stability and permanently stable quality.

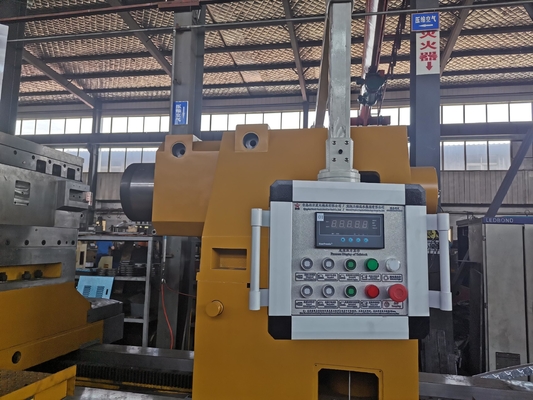

The tail-stock is installed a presence sensor pressure to display the clamping pressure between centers.

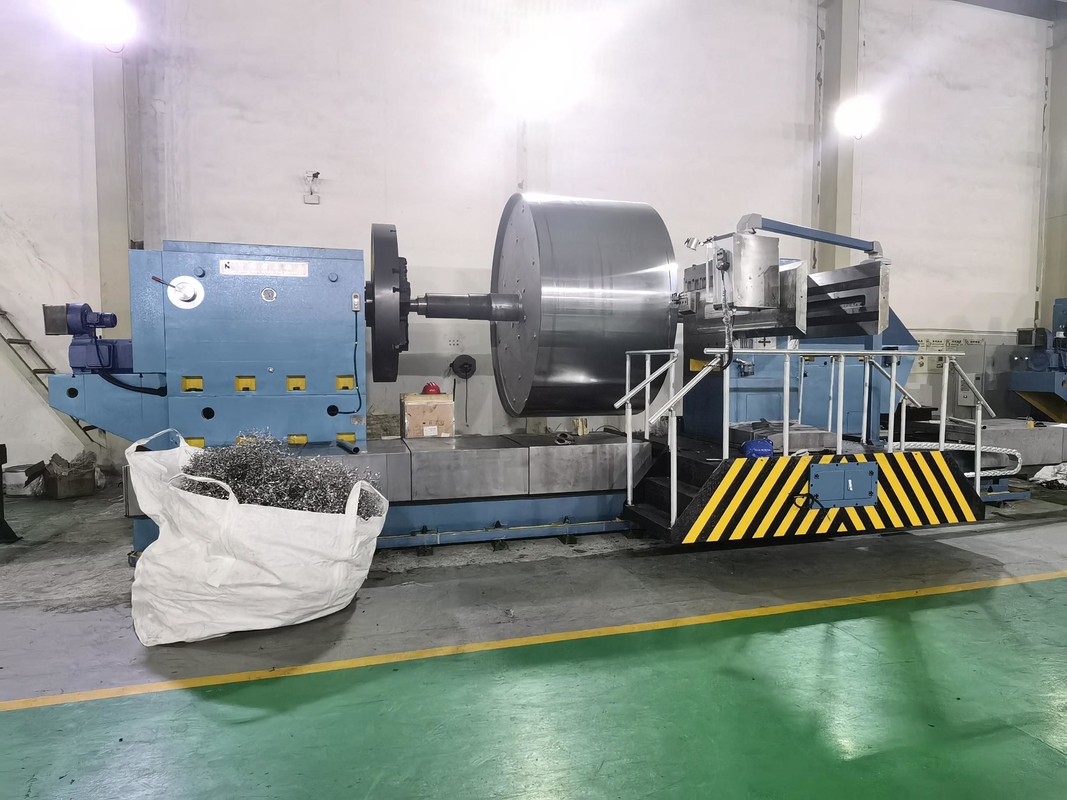

4 Guide Rails Horizontal Lathe Machine Conventional For Turning Shaft 2
The tailstock consists of two parts: the upper one includes a sleeve moving mechanism, spindle assembly, and a shaft centerline adjustment mechanism, with a rectangular head in the rear, which is designed to lock the sleeve manually; and the lower one includes a tailstock fast-moving motor and a locking mechanism, with the main shaft installed on the high-precision radial clearance-adjustable double-row cylindrical roller bearing in the sleeve, rendering the high-precision rotating top on the tailstock. However, in order to satisfy certain special requirements of the machining process, it is feasible to transfer the plug board from the flange groove in the front of the sleeve to the groove near the front end of the main shaft in order to fix the main shaft and obtain a dead center. The rear end of the main shaft is connected with the sleeve via a disk spring to avoid any damage to the mechanism rising from thermal expansion of the work piece.

TECHNICAL PARAMETERS OF HEAVY DUTY HORIZONTAL LATHE

Standard configuation.


Specifications of CK61300*6000 Heavy Duty Horizontal Lathe
1.Max.Swing Diameter over the Cutting Tool Carriage mm 2500
2.Max.Swing Diameter over machine bed mm 3000
2.Max.Length of Work-piece mm 5000
3.Max.Work-piece Weight T 50
4. Guide Rail Width (4 heavy duty type guide rails) mm 1800
5. Diameter of Spindle mm 320
6.Chuck Diameter mm 2500
7. Spindle RPM r/min 1-100
8. Tool Holder   4 positions cutting tool carriage 300*300 mm
9.No.of Spindle Speed   Stepless
10. Longitudinal Feed of Cutting Tool Rest mm/min 0-3000
11.Horizontal Feed of Cutting Tool Rest mm/min 0-2000
12. Longitudinal Stroke of Tool Rest mm 5000
13. Horizontal Stroke of Tool Rest mm 1500
14.Power of Main Motor KW 75
15. Spindle Diameter of Tail-stock mm 320
16. Tail-stock stroke mm 300
