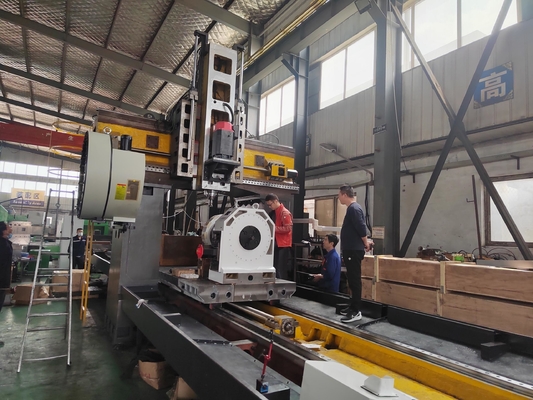

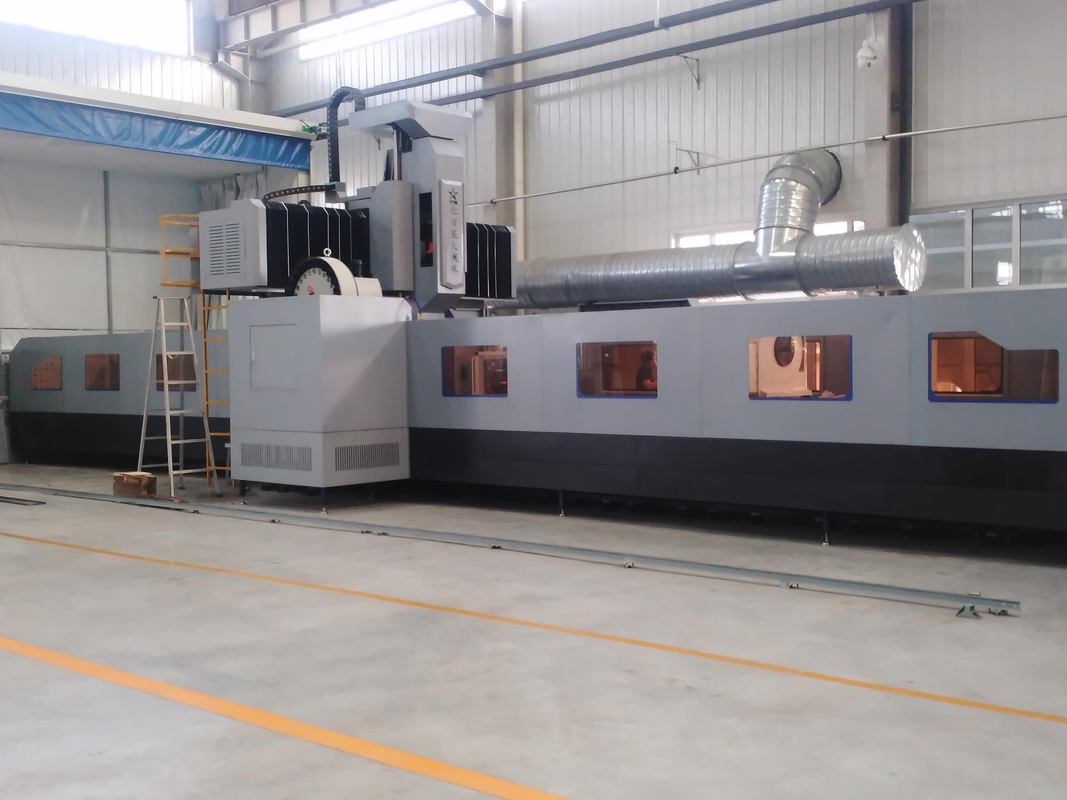

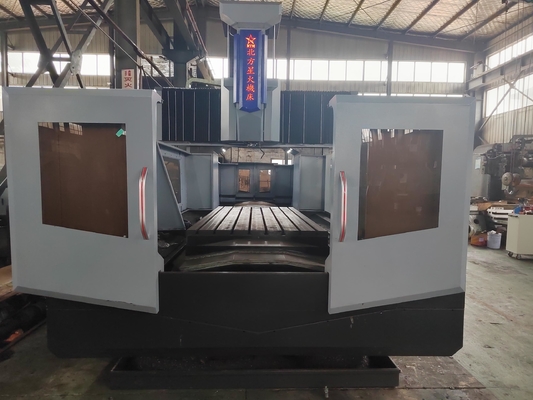

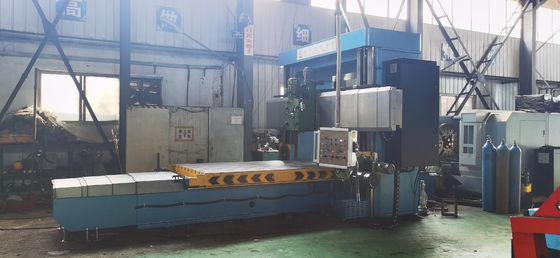

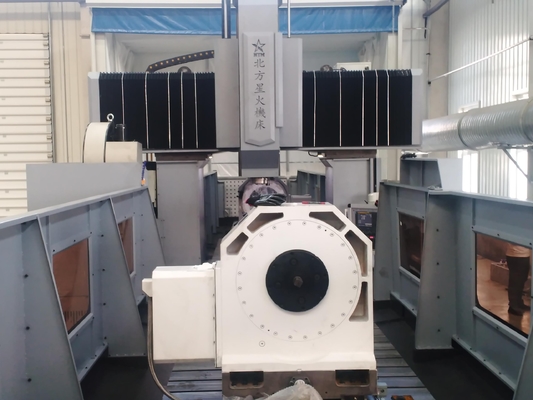

4 Axis Horizontal Gantry Milling Machine For Machining Railway Bogie

4 Axis Horizontal Gantry Milling Machine For Machining Railway Bogie
4 Axis Horizontal Gantry Milling Machine For Machining Railway Bogie

Large Image :  4 Axis Horizontal Gantry Milling Machine For Machining Railway Bogie

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized machine is also available
Certification: CE, ISO9001, BV, SGS
Model Number: CKX6232

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 150000 USD
Packaging Details: Wood Box Package
Delivery Time: 4 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per year
Detailed Product Description
Worktable Size: 2500 Mm*6000 Mm Max.Loading Capacity: 25T
Distance Between Two Column Span (mm): 3200 Mm X Axis Stroke: 6000 Mm
Y Axis Stroke: 3200 Mm Zaxis Stroke: 1250 Mm
High Light:

Horizontal Gantry Milling Machine

,

4 Axis Gantry Milling Machine

,

Railway Bogie Machining Horizontal Gantry Mill

China Professional Horizontal Gantry Milling Machine With The 4 Axises For Machining Railway Boggie

  • Machine Features





CKM 6232 CNC Gantry/Bridge Milling Machine with movable work-table adopts Japanese advanced technology of dynamic stiffness, which has high vibration absorption, more high accuracy, high precision, high rigidity and stability even under a large torque and heavy cutting.



The machine has multi-functions of milling, boring, drilling inner holes, ex-circle, flat surface, bench, cone, spherical surface, grooves etc with a high speed and accuracy. This machine is widely used for Energy, aerospace, automotive, printing, fabrication, transportation, military project, rubber, molding, food industry and so on.







Machine Overall layout



The overall layout is the movable gantry work table of symmetric structure,including working table base,working table ,left and right column, beam, slide carriage, Hydraulic system etc.



It’s a is a frame structure made from the left and right column, the beam and the working table

is equipped with high rigidity iron with adopting resin - coated sand shell casting process, after casting process, do artificial aging annealing treatment for the part, after rough machining, do the second vibrating aging treatment.



The casting has high quality without crack,stomata,shrinkage and White tissue.After two artificial aging treatment, the casting has a stable structure and ensure the chemical composition,rigidity and stability of the material.Product quality certificate provide the analysis of chemical composition of cast iron,heat treatment report and heat treatment temperature time curve.



The machine has three CNC feed axis and three axis linkage achieving high speed and high precision mold processing and also large torque and heavy cutting machine processing.



The three axis of the machine tool has strict hard and soft limit double insurance,safety protection to To ensure the safe and reliable operation of the machine tool.


The machine has a metal telescopic protective cover and the guide of the cross beam is used in the protection of the accordion.



The machine has automatic chip removal function
The machine has automatic temperature control function
All parts of the machine tools are compulsory and automatic lubrication







Working table base and working table



The working table is used to reinforce the square box To increase the density of the tendon of the junction of the base and column.Greatly improve the rigidity of the machine tool and machine tool's ability to resist distortion.


We Install vertical high density reinforcing bar below the track directly undertake the weight of the workpiece and table to avoid the entire machine in a suspended state and improve the bearing capacity and deformation capacity of the machine.


The working table uses high density square box and reinforced bar made from special selection of high strength cast iron. We increase the height of the work table to avoid the deformation of the beam .

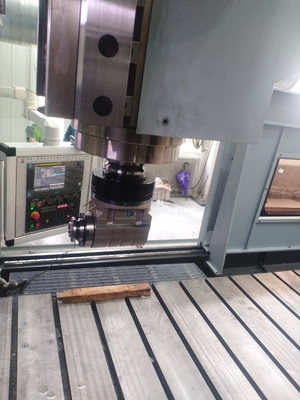

Spindle Motor

The spindle motor is a broadband speed AC servo motor, which realizes high torque output with low speed and high speed processing to finish a good roughness, so that it is particularly suitable for heavy cutting machine and mold parts machining.



The spindle uses Japanese famous brand bearing—p4 grade precision. It ensures a high accuracy, durability and stability.



Hydraulic System

This machine adopts independent hydraulic station, the main pump, valve, hydraulic parts are all made of imported products with high stability, low failure rate, low noise. The hydraulic circuit is simple and unblocked, which is equipped with automatic temperature control device to ensure the working stability and extend the using life.



Control System

The machine is equipped with FANUC CNC Control system. It has high speed, high precision and high stability features and widely used for machining complex surface of work-pieces. The machine has X,Y,Z three feed axis, which can realize three axis association.



Main Technical Parameters of Gantry Milling Machine of CKX6232



Specifications
Worktable Size mm 2500×6000
Max. Work-piece Weight T 25
Max. Width of Bridge/Gantry mm 3200
Max. Stroke of X-Axis mm 6200
Max. Stroke of Y-Axis mm 3500
Max. Stroke of Z-Axis mm 1250
Distance from the spindle end to the work-table surface mm 1500
Power of Spindle Motor Kw 45
Spindle speed rpm 20-3000 rpm
The spindle Type   BT50
Repeated positioning accuracy of X,Y,Z /per 300 mm mm ±0.01/±0.01/±0.01
X,Y,Z Positioning Accuracy /300mm mm ±0.015/±0.015/±0.015
Max. Cutting speed X/Y/Z m/min 8/8/8
Max. Rapid moving speed X/Y/Z m/min 10/8/6
Volume of The cooling water tank   400L
Cooling pump flow   60L/min
Lubrication device   Lubricate automatically per required demands
Pneumatic system   P=0.5~0.8Mpa
The hydraulic system   P=7Mpa,Q=40L/min
Machine tool control system   FANUC CNC Control System
Display   LCD 10.4″LCD
