165r/Min 4000mm 40T Cylinder Cnc Horizontal Lathe Machine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

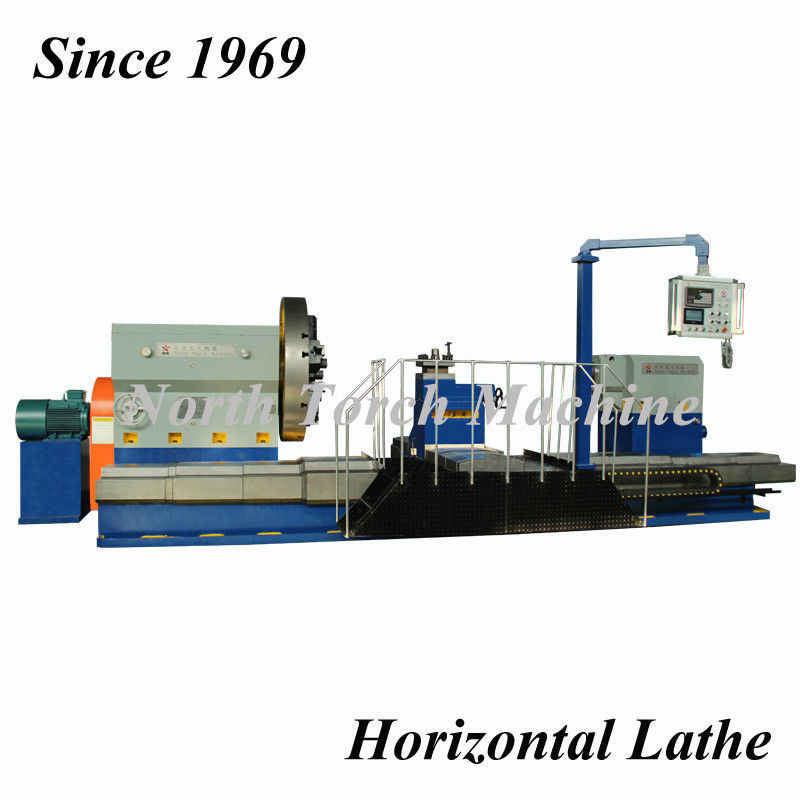

165r/Min 4000mm 40T Cylinder Cnc Horizontal Lathe Machine

165r/Min 4000mm 40T Cylinder Cnc Horizontal Lathe Machine
165r/Min 4000mm 40T Cylinder Cnc Horizontal Lathe Machine

Large Image :  165r/Min 4000mm 40T Cylinder Cnc Horizontal Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized roll lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK8480 CK84100 CK84125 CK84160

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 4 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Roll Turning Lathe Usage: Specially Turning Steel Roll,roll Bar And Other Metal Part Max.Diameter Of Steel Roll: 2000 Mm
Max.Length Of Steel Roll: 4000 Mm Weight Of Roll Bar: 40T
After-sale Service: Engineers Are Available For Roll Lathe Installation And Commissioning Certificate: ISO9001
High Light:

40T Cnc Horizontal Lathe Machine

,

4000mm Cnc Horizontal Lathe Machine

,

165r/min Heavy Duty Lathe Machine

Siemens heavy duty lathe for turning 40T cylinder



1,Description of heavy lathe:

Heavy-duty lathes enjoy a high reputation throughout the country to reduce maintenance costs. Lathes are known for precision work, accuracy and trouble-free performance.

Bed: This is a gap bed. The lathe is raised on the surface, while the bed is flat. Both surfaces are manually scraped to achieve close tolerances. The bed and slider are cast. It has been graded and has a hardness of 200 BHN (+-10%).

Spindle box: The spindle is made of special steel and is precisely ground on a cylindrical grinder. An oil storage tank is provided in which the skew helical gear of the steel billet is immersed. Provide double/single system, easy to operate. Fixing the "V"-shaped guide rail on the bed can manually scrape and slide the slider more accurately.

Tool holder: It is made of a piece of steel and can hold four different tools at a time.

Apron: The apron makes the movement a saddle for screw cutting. All gears are made of steel.

Tailstock: The tailstock is designed to provide maximum strength. It has a long bearing seat to ensure true alignment.

Gearbox: All gears of the semi-Norton gearbox are made of en-9 steel. These gears are cut and properly hardened on an imported gear forming machine. These gearboxes are very easy to operate.

Included channels: solid rest, follow rest, panel, motor pulley, dead center, sleeve, gear set. Wait

Additional access: hardened bed, electrical, machine lights, coolant pump and filler.





2. OUR ADVANTAGES & FEATURES about Heavy Duty Horizontal CNC LATHE:



We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.



We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.



For the machine easy-damaged parts, we can provide immediately to prevent customer's halt production . For each lathe machine, we have one complete 3D & 2D drawings in dgw version.



Exported Countries of CNC Roll Repair Lathe :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc



3. Technical Parameters of steel roll turning cnc lathe





CG61 series Heavy Duty horizontal Lathe
Name Unit CG61160 CG61200 CG61250 CG61315 CG61400 CG61500
Guide rail Type   Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions CM 920*265*230 920*320*360 1000*360*250 1100*400*370 1120*500*470 1150*550*515
Machine Weight T 30T 35T 45T 50T 55T 65T




165r/Min 4000mm 40T Cylinder Cnc Horizontal Lathe Machine 0









4. After-sale Service



1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.

2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.

3. The quality warranty of roll turning lathe is 12 months.

4.Machine accessories supply: we have all machine accessories and we have the ability to provide lathe machine accessories within 3 days.



For more details, please feel free to contact us.



Thank you for attention.
