PLC Control Heavy Duty Horizontal CNC Turning Lathe Machine for 40T Cylinder

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

PLC Control Heavy Duty Horizontal CNC Turning Lathe Machine for 40T Cylinder

PLC Control Heavy Duty Horizontal CNC Turning Lathe Machine for 40T Cylinder
PLC Control Heavy Duty Horizontal CNC Turning Lathe Machine for 40T Cylinder

Large Image :  PLC Control Heavy Duty Horizontal CNC Turning Lathe Machine for 40T Cylinder

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CG61100 CG61160 CG61200 CG61250 CG61300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood Box Package
Delivery Time: 3 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Metal Turning Horizontal Lathe Application: Turning Flange, Pipe, Shaft, Cylinder, PE PART,etc Machine Type: Horizontal Lathe Machine
Control System: PLC, DRO, SIEMENS, FANUC, All Are Available According To Customer Request Swing Diameter Over Machine Bed: 1000 Mm,1500 Mm,2000 Mm,3500 Mm
Max.Length Of Work-piece: 500 Mm, 1000 Mm X, Z Axis Motor: Servo Motor Drive
High Light:

Horizontal Cnc Turning Lathe Machine

,

PLC Cnc Turning Lathe Machine

,

40T Cylinder Turning Lathe Machine

China First Professional Metal Turning Horizontal Lathe Machine with 2 years quality warranty



Our company advantages:



1. We have our foundry which can control the casting parts quality very well. We have professional hardening/quenching furnace used for castings surface treatment to ensure high stability, rigidity and accuracy of horizontal lathe machine.



2. Professional machining equipment such as 12 meters long gantry CNC Grinding Machine, gantry milling machine, CNC Boring Machine, Drilling Machine, Horizontal CNC Lathe Machine for machine main parts like headstock , tailstock, guide rail ,cutting tool carriage, chuck turning



3. Professional technical team to provide both 3D & 2D drawings of horizontal Lathe Machines, roll turning lathe, Facing Lathe Machine, etc to customers after order confirmation and before production. In this designing method, we can make a perfect customized lathe machine for customers.





4. Immediate reply and actions for after-sale service , even after 15 years, we can also provide the easy damaged lathe machine parts and accessories immediately, becaue for each horizontal lathe machine and vertical lathe machines, we have one complete drawings. and we have enough spare parts for each lathe machine in stocK.



Special Chracteristics of Horizontal Lathe Machine, metal turning lathe machine:



1. 2 guide rails with one flat rail and  swallow tail (mountain) type rail. 3 guide rails, 4 guide rails , all are available according to work-piece weight and customer's request.



2. Specially designed a kind of conventional /flexible operation panel system, which obtained our national patent.

PLC Control Heavy Duty Horizontal CNC Turning Lathe Machine for 40T Cylinder 0

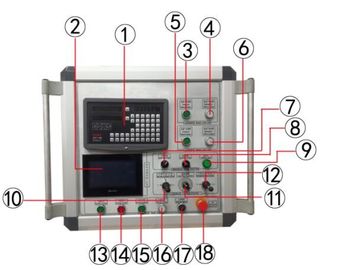

PLC & Digital Readout Instrument: This machine is installed double axis digital readout system of X& Z axis which realizes the digital display function by digital readout ruler installed on the sliding plates of both X and Z axis. The digital readout ruler mainly includes ruler and reading head. When the sliding plate moves, the reading head can realize exact readings and display through the LCD. The number displayed may be accurate to three decimal places with high display accuracy.



3. We specially designed a kind of convenient Separate Handwheel Operation Unit which installed on the side of operation panel.



PLC Control Heavy Duty Horizontal CNC Turning Lathe Machine for 40T Cylinder 1

Standard Technical Parameters of Metal Turning Lathe, Horizontal Lathe Machine





CG61 series Heavy Duty horizontal Lathe, Metal Turning Lathe Machine, PE part turning horizontal lathe machine
Name Unit CG61160 CG61200 CG61250 CG61315 CG61400 CG61500
Guide rail Type   Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Chuck jaw seat length mm 250mm Heavy chuck jaw seat 320m Heavy chuck jaw seat
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
Spindle tips   Metric 120 1:7 Metric 160 1:7
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
Cutting tool carriage type   300mm Electrical type
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Motor Parameters
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2



We are specialized in making customized lathe also, if you have special request, please let us know the request or provide the work-piece drawing, Diameter, Length and Weight. We can redesign for you.





For More Details, please feel free to contact me.



Thank you for attention.
