Product Details:
Payment & Shipping Terms:
|
Heavy Duty Horizontal Lathe: | Turning Cylinders, Shaft, Propeller, Pipe,Crankshaft Etc | Max.Diameter Of Cylinder,shaft, Pipe: | 630 Mm 1000 Mm 1250 Mm 1600 Mm 2000 Mm |
---|---|---|---|
Max.Length Of Cylinder, Shaft: | 2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm | After-sale Service Of Roll Lathe: | Engineers Are Available For Oversea Machine Installation And Commissioning |
Certificate: | CE, ISO9001, BV, SGS, EAC | ||
High Light: | cnc metal lathe,industrial metal lathe,Metal Roll Turning Lathe Machine |

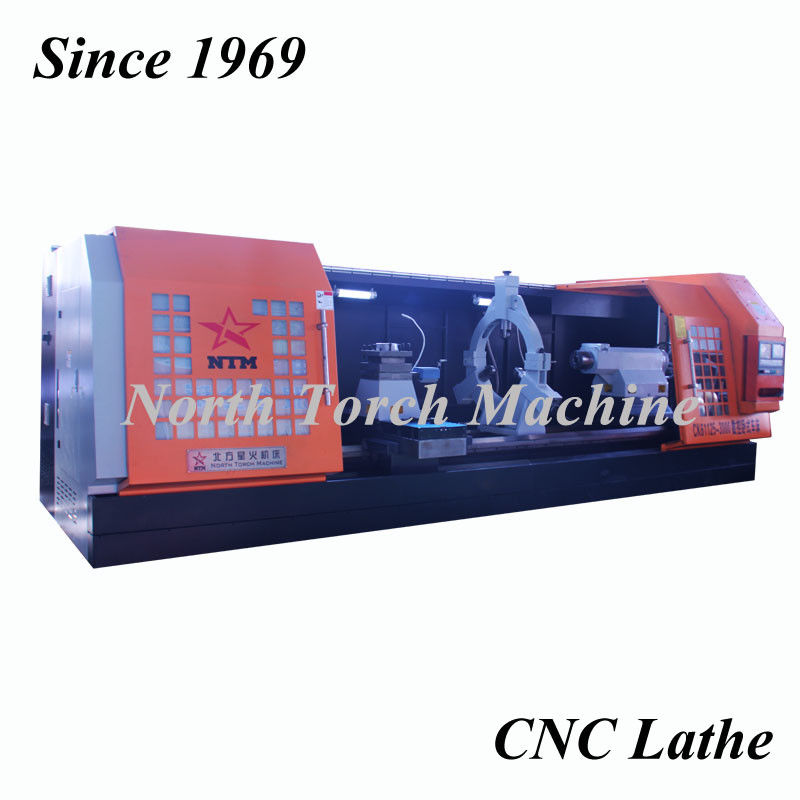

Specially designed manufacture metal lathe machine for turning propeller
There are 2 different kinds of heavy duty horizontal lathe machines in our company, one is
OUR ADVANTAGES & FEATURES about Horizontal Heavy Duty LATHE Machine:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8. Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
Product Application
The horizontal lathe machine is mainly suitable for cutting the workpiece inside and outside round cylindrical, cone and other rotating parts, machinable various commonly used metric, inch, module and diametral pitch thread, and broaching oil groove and keyway.The machine has the following features:
1. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.
2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.
3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.
4. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.
5. Has security structure in the sliding box, which can prevent damage of lathe due to overload.
3. Technical Parameters of Horizontal lathe Machine
CG61 series Heavy Duty horizontal Lathe | |||||||
Name | Unit | CG61160 | CG61200 | CG61250 | CG61315 | CG61400 | CG61500 |
Guide rail Type | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | |
Swing diameter over machine bed | mm | φ1600mm | φ2000mm | φ2500mm | φ3150mm | φ4000 | φ5000 |
Swing diameter over cutting tool carriage | mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm | φ3500mm | φ4000 |
Guide rail width of machine bed | mm | 1600mm | 1800mm | 2000mm | 2000mm | 2200mm | 2500mm |
4 jaws single action Chuck diameter | mm | φ1250mm | φ1600mm | φ2000mm | φ2700mm | φ3000mm | φ4000mm |
Max.Length of work-piece | mm | 8000mm | 10000mm | 10000mm | 10000mm | 15000mm | q20000mm |
Work-piece Weight | T | 20T | 25T | 32T | 40T | 50T | 63T |
Spindle Diameter | mm | φ260mm | φ300mm | φ300mm | φ320mm | φ360mm | φ400mm |
Spindle Speed | r/min | 5-165r/min | 2-165r/min | 1-92r/min | 1-92r/min | 1-60r/min | 0.5-80r/min |
X Axis Stroke | mm | 50-800mm | 100-1000mm` | 100-1250mm | 150-1580mm | 200-2000mm | 200-2500mm |
Z Axis Stroke | mm | 2000-8000mm | 2000-10000mm | 2500-10000mm | 2500-10000mm | 3000-15000mm | 3000-20000mm |
X axis rapid speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
Z axis rapid speed | mm/min | 3000mm/min | 3000mm/min | 3000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
F Cutting tool blade size | mm | 60*60mm | 70*70mm | 70*70mm | 80*80mm | 80*80mm | 80*80mm |
Tailstock spinlde diameter | mm | φ290mm | φ290mm | φ320mm | φ320mm | φ360mm | φ410mm |
Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Tailstock moving method | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | |
Tailstock Tip | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | |
Max.Torque of cutting tool carriage | KN | 60KN | 80KN | 80KN | 80KN | 100KN | 150KN |
Max.Torque of Chuck | KN·m | 25KN·m | 35KN·m | 43KN·m | 55KN·m | 90KN·m | 233KN·m |
Total Cutting Force | KN | 65KN | 90KN | 110KN | 120KN | 160KN | 210KN |
Total Power | KW | 45KW | 55KW | 75KW | 75KW | 90KW | 128KW |
Lubrication Motor Power | KW | 0.37KW | 0.55KW | 0.56KW | 0.57KW | 0.58KW | 0.59KW |
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughtness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Machine Dimensions | CM | 920*265*230 | 920*320*360 | 1000*360*250 | 1100*400*370 | 1120*500*470 | 1150*550*515 |
Machine Weight | T | 30T | 35T | 45T | 50T | 55T | 65T |
Remarks: The above technical parameters of Heavy Duty Horizontal turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.
For more details, please feel free to contact us.
Thank you for attention.
