High Speed Conventional Lathe Machine Metal Casting For Threading Pipe

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

High Speed Conventional Lathe Machine Metal Casting For Threading Pipe

High Speed Conventional Lathe Machine Metal Casting For Threading Pipe
High Speed Conventional Lathe Machine Metal Casting For Threading Pipe High Speed Conventional Lathe Machine Metal Casting For Threading Pipe High Speed Conventional Lathe Machine Metal Casting For Threading Pipe High Speed Conventional Lathe Machine Metal Casting For Threading Pipe

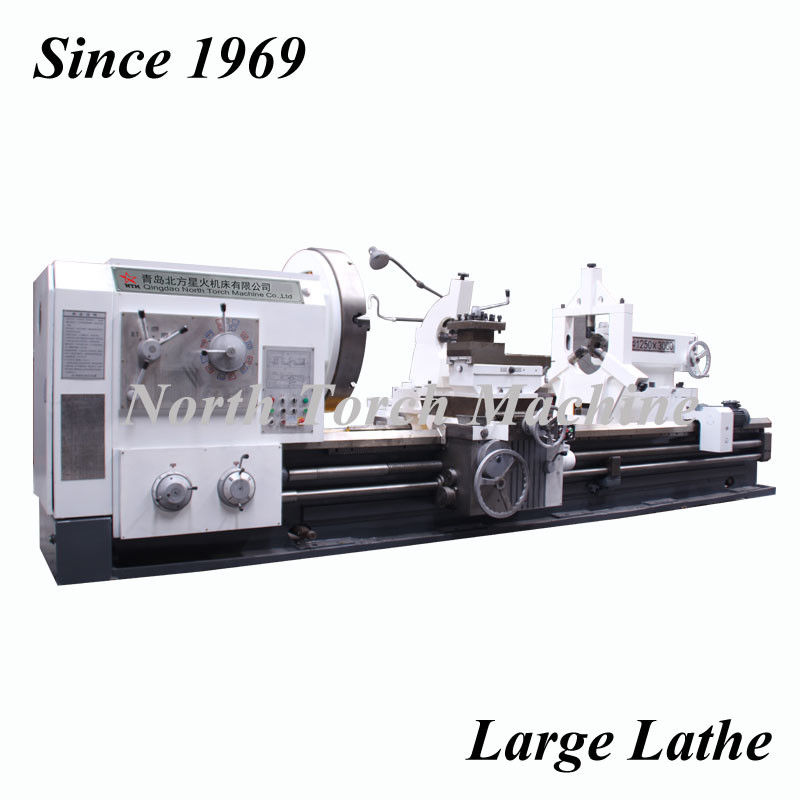

Large Image :  High Speed Conventional Lathe Machine Metal Casting For Threading Pipe

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CW61250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Lathe Machine Type: Horizontal Conventional Lathe Certificate: CE, SGS, BV, EAC
Max.Diameter Of Work-piece: 2000mm Max.length Of Lathe Machine: 12000 Mm
High Light:

conventional engine lathe

,

high precision cnc lathe

Metal Casting High Speed Conventional Lathe Machine for threading pipe





Conventional Lathe Machine Usage:



1. Horizontal Lathe Machine is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.



2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.



3. All the gears are precision grounded, with long life and low noise;



4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.



Conventional Horizontal Lathe Machine, Engine Geared lathe, manually operation metal lathe is Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of flange, valves, sealing head,cans board, motor, such as tyre moulds cover parts . This machine widely used in energy and transportation, petroleum chemical industry, mining railwayand automobile manufacturing machinery.



All castings are inspected by the professional equipment like stiffness detection system,ultrasonic fault detector and so on. To guarantee the lathe machine has a high rigidity, accuracy, high precision and stability.







2. ADVANTAGES & FEATURES about Horizontal LATHE Machine:



1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.



2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.



3. 3 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine



4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.



5. High torque capacity of headstock of lathe machine



6. Zero backlash with ball screw.



7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system



8.Tailstock is electrical control with pressure display, which obtained our national patent.



Exported Countries :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc



3. Technical Parameters of Conventional Horizontal Lathe



CW61 series horizontal Lathe-LIGHT TYPE
Name Unit CW6180 CW61125 CW61160 CW61200 CW61250 CW61300
Guide rail Type   Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails
Swing diameter over machine bed mm φ800mm φ1250mm φ1600mm φ2000mm φ2500 φ3000
Swing diameter over cutting tool carriage mm φ400mm φ800mm φ1250mm φ1600mm φ2000mm φ2500
Guide rail width of machine bed mm 600mm 755mm 1000mm 1000mm 1100mm 1100mm
4 jaws single action Chuck diameter mm φ400mm φ800mm φ1250mm φ1600mm φ2000mm φ2500mm
Max.Length of work-piece mm 1000mm 2000mm 3000mm 4000mm 5000mm 6000mm
Work-piece Weight T 2T 5T 10T 12T 15T 15T
Spindle Diameter mm φ190mm φ190mm φ220mm φ220mm φ260mm φ260mm
Spindle Speed r/min 10-300r/min 5-134r/min 5-106r/min 5-106r/min 3-87r/min 3-87r/min
X Axis Stroke mm 400mm 600mm` 800mm 1000mm 1250mm 1500mm
Z Axis Stroke mm 1000mm 2000mm 3000mm 4000mm 5000mm 6000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
F Cutting tool blade size mm 40*40mm 40*40mm 40*40mm 40*40mm 40*40mm 40*40mm
Tailstock spinlde diameter mm φ150mm φ180mm φ240mm φ240mm φ280mm φ280mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Total Power KW 11KW 15KW 18.5KW 22KW 30KW 37KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2





Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.







4. After-sale Service



1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.

2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.

3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.



For more details, please feel free to contact us.



Thank you for attention.
