|Lathe Machine Type:||Horizontal Facing CNC Lathe||CNC Lathe Application:||Used For Turning Flange, Tyre Mold, Propeller, Wheel|
|Max.Diameter Of Work-piece:||2500 Mm||Max.Length Of Work-piece:||750 Mm|
|Chip Removal System:||Full Metal Cover And Chip Chain Conveyor||Machine Color:||Customized Machine Color Is Ok|
|Quality Warranty:||1 Year Since Acceptance||Certificate Of CNC Lathe:||EAC, CE, SGS, BV, ISO9001|
Flange Facing in Lathe Machine,
2500mm Workpiece Facing in Lathe Machine,
HDPE Flange Horizontal Turning Lathe
China Professional High Quality Facing CNC Lathe, Horizontal Lathe, Lathe Machine
For turning facing HDPE falnge, Steel Flange, Tyre Mold, Aluminum Mold, Shipyard Propeller, Impeller, Automotive Wheel, Turbine, Pipe Fittings
We are China First Horizontal Facing CNC Lathe, Lathe Machine, Flange turning lathe Manufacturer with more than 50 years experience, We specially designed a kind of CNC drilling milling lathe machine with national certificate. It is professionally used for turning, drilling holes on the flange. It helps customer to save invest cost and highly improve the machining and clamping efficiency. One lathe machine can finish both turning and drilling processes.
Internationally forerunner computation technologies and optimized finite element analysis methods are adopted and the selected materials are suitable for the design so that the machine can carry loads as heavy as possible.
All castings are made of high-strength meehanite HT250. Therefore, the lathe has proved high rigidity, stability and precision maintenance, which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found.
The lathe is in one-piece structure and made of meehanite, greatly enhancing its abrasion resistance, and the internal force elimination process produces high vibration resistance and considerably enhances stability. The cross-shaped base and rectangular bearing structure ensure high structural stability and permanently stable quality.
with high geometric accuracy.
Technical Parameters of cnc lathe, facing lathe, lathe machine, horizontal lathe.

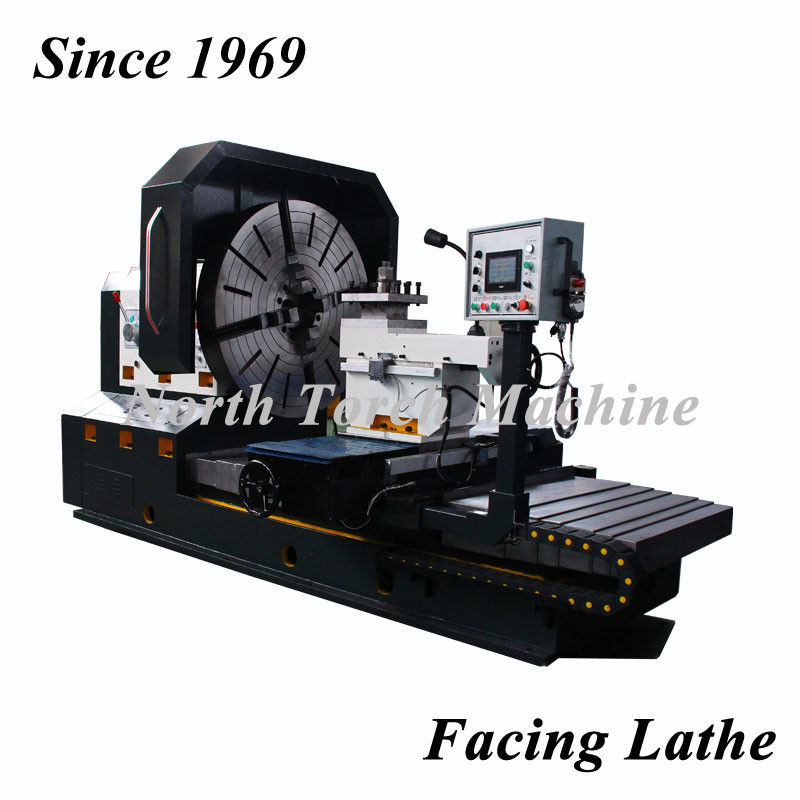

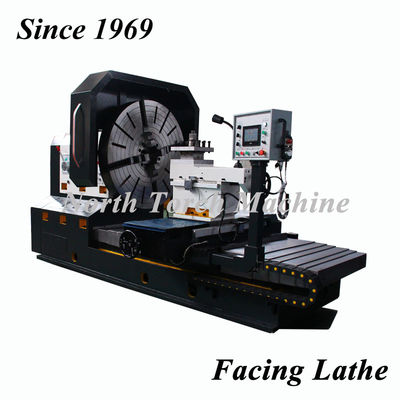

2D drawings of cnc lathe, facing lathe, horizontal lathe, lathe machine
|Swing Diameter over Machine Bed||mm||φ1000mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm||φ3000|
|Chuck-jaw seat length||mm||Embedded||Embedded||Embedded||500mm||500mm||500mm|
|Spindle Speed||r/min||10-300 r/min||10-200 r/min||4-160 r/min||4-160 r/min||3-106 r/min||3-106 r/min|
|X Axis Stroke||mm||500mm||625mm||800mm`||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||500mm||500mm||750mm||1000mm||1000mm||1000mm|
|X Axis Rapid Feed Speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min|
|Z Axis Rapid Feed Speed||mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min|
|Cutting Tool Carriage Size||240*240||240*240||280*280||300*300||300*300||300*300|
|Cutting Tool Shank Size||mm||32*32mm||32*32mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Feed Control||/||Servo motor||Servo motor||Servo motor||Servo motor||Servo motor||Servo motor|
Main Motor Power
Geometric Accuracy of cnc lathe, lathe machine. horizontal lathe, flange turning lathe
Radial Run-out of Spindle (Bottom) +/-0.025mm
Axial Run-out of Spindle +/-0.025mm
Radial Run-out of Top +/-0.025mm
Others please refer to JB/T8325.1-96.
Platness +/- 0.025/300mm
Re-positioning errors +/-0.025/300mm
Positioning Accuracy +/- 0.025/300mm
Roughness of Turning <Ra3.2um
1.SIEMENS 808D Control System
2.800 mm Chuck with 4 jaws
3. Main Motor Power: Variable Frequency Motor
4. Automatic Circular Cooling System
5. Protective Shield/cover for X,Z axis Guide rails
6. 4 positions cutting tool carriage--Electrical Control with automatic rotation
7. X & Z axis are controlled by servo motor.
8. Manual Pulse Generator installed on the operation control panel side.
9. Automatic Lubrication system
10. Automatic power intercept unit for safety.
11. Hand-wheel with separate line type
12. Electrical control box
13. Operation / maintenance manual
14. Indicating light
15.Full Metal Cover for Lathe Machine and Automatic Chip Conveyor for lathe
