Detailed Product Description
Roll Turning Lathe Usage: Specially Turning Steel Roll,roll Bar And Other Metal Part Max.Diameter Of Steel Roll: 2000 Mm
Max.Length Of Steel Roll: 4000 Mm Weight Of Roll Bar: 15T-40T
After-sale Service: Engineers Are Available For Roll Lathe Installation And Commissioning Certificate: SGS, CE, EAC, ISO9001
High Light:

cnc heavy duty lathe

,

heavy duty horizontal lathe

Special heavy duty horizontal lathe machine, cnc lathe machine, metal turnin lathe, roll turning lathe, cnc machine tool for turning steel roll, cylinder, shaft, pipe, propeller, etc



Heavy lathe Machine, Lathe Machine, CNC Lathe, Roll turning lathe, coventional lathe, flange turning lathe, facing lathe, pipe lathe
are our main lathe machines products.

Using the latest technology, we have been manufacturing heavy-duty lathes with international quality standards. We provide these heavy-duty lathes with different heights, widths and other specifications to meet the needs of industrial customers. These heavy-duty lathes undergo rigorous testing to ensure compatibility with the given operation. Our heavy duty lathes are of perfect quality and can work under extreme conditions.



 Special Designed Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe Machine 0

Customer's praise for our heavy duty lathe, roll turning lathe, lathe machine, cylinder turning cnc lathe with SIEMENS 828D , cnc milling drilling lathe machine



Discrption of Heavy Duty Horizontal CNC Lathe, Horizontal Lathe Machine, roll turning lathe, lathe, lathe machine, CNC Machine tool:



This Heavy Duty Horizontal CNC Lathe machine is mainly used in processing roller hole pattern for steel mill. Adopted modeling cutter, roll lathe can process roller for FT, semi-FT and cutting off, it can also fix for hole pattern. The roll lathe can also process in roller's Outside cylindrical surface and other axis parts.

CNC mill roll lathe machine mainly used for semi-finish turning and finish turning processing of cast iron, steel and nonferrous metal roll. Cutters made of high-speed steel. This lathe can be used for turning and processing roll excircle, end faces, various complex pass profiles and curved surfaces, or for the processing of shaft parts made of materials such as cast iron, steel and nonferrous metal.

Roll lathe is made up of lathe bed, headstock, tailstock, knife rest, center rest and other parts. Headstock and tailstock are installed between lathe beds. Tailstock can move or still along the guide rail for fulfil various length.



2. OUR ADVANTAGES & FEATURES about Heavy Duty Horizontal CNC LATHE:



We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.



We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.



For the machine easy-damaged parts, we can provide immediately to prevent customer's halt production . For each lathe machine, we have one complete 3D & 2D drawings in dgw version.



Exported Countries of CNC Roll Repair Lathe :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc

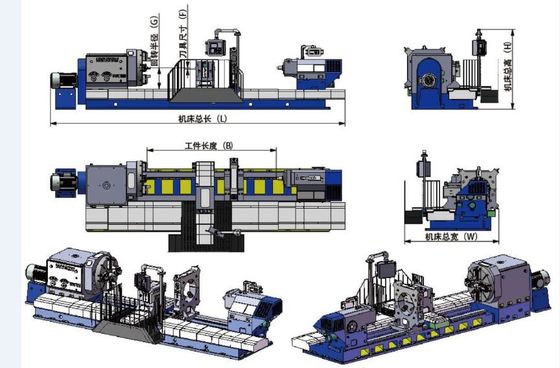

3. Technical Parameters of steel roll turning cnc lathe, Lathe Machine, Horizontal Lathe, CNC Machine tool

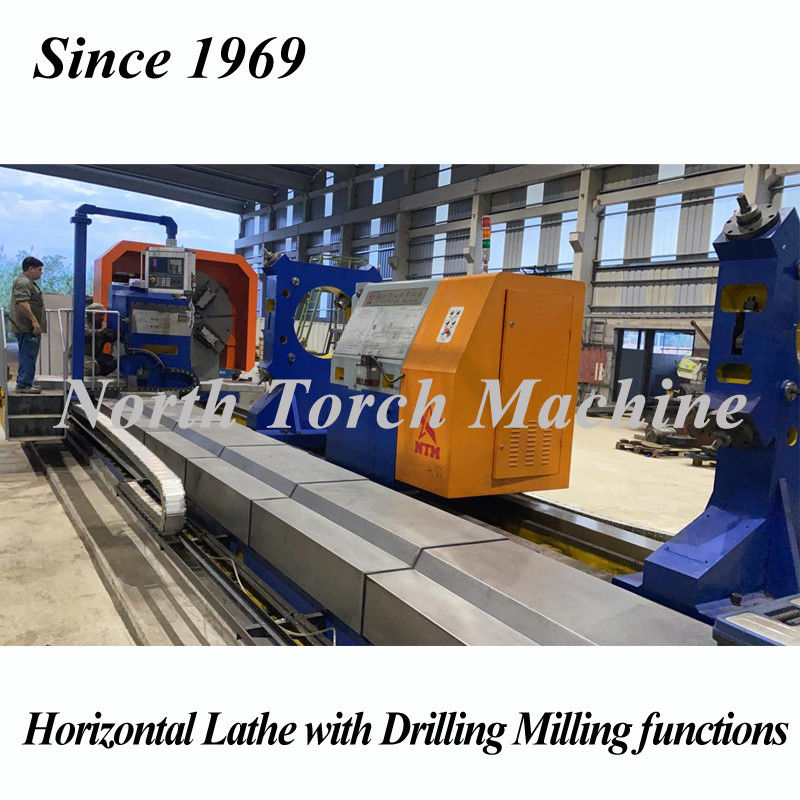

Special Designed Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe Machine 1



CG61 series Heavy Duty horizontal Lathe
Name Unit CG61160 CG61200 CG61250 CG61315 CG61400 CG61500
Guide rail Type   Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions CM 920*265*230 920*320*360 1000*360*250 1100*400*370 1120*500*470 1150*550*515
Machine Weight T 30T 35T 45T 50T 55T 65T




Special Designed Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe Machine 2









4. After-sale Service



1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.

2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.

3. The quality warranty of roll turning lathe is 12 months.

4.Machine accessories supply: we have all machine accessories and we have the ability to provide lathe machine accessories within 3 days.



For more details, please feel free to contact us.



Thank you for attention.



Special Designed Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe Machine 3

For more details of heavy duty lathe, horizontal lathe, roll turning lathe, cnc machine tool, lathe, cylinder roll turning lathe, flange turning lathe, facing lathe, pipe lathe, please feel free to contact us.



Thank you.



Tap: Heavy duty lathe, horizontal lathe machine, lathe, cnc lathe, cnc machine tool, roll lathe, pipe lathe.
