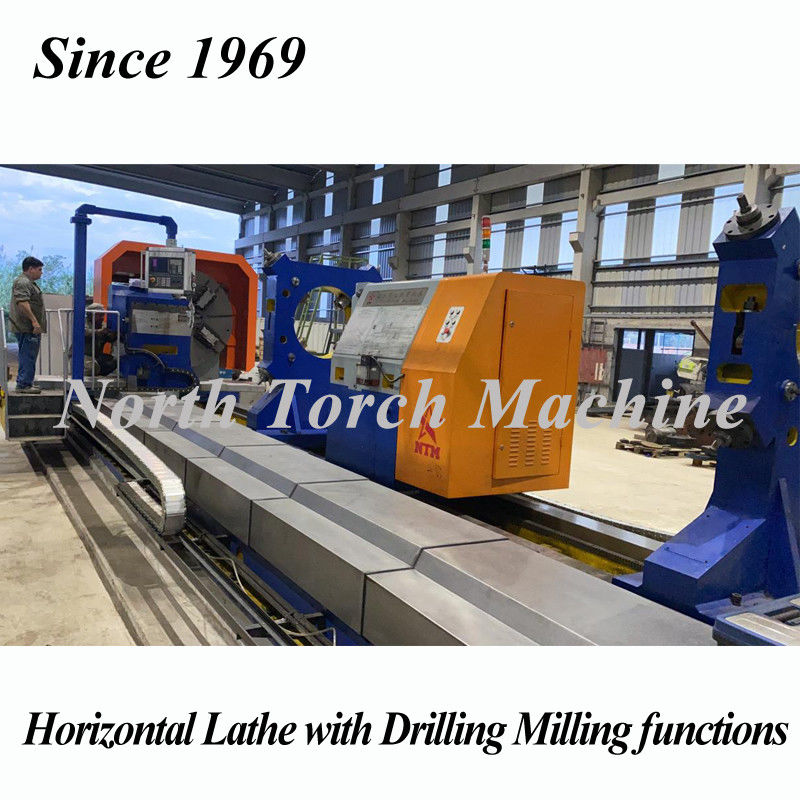

New Designed High Technical Heavy Duty Horizontal CNC Lathe Machine for turning mill cylinder, long shaft
Heavy duty horizontal CNC lathe is an electromechanical machine tool integrating electrical control, hydraulic control, modern machinery design and other disciplines, Our heavy duty horizontal lathe executes national lastest accuracy standard, which is designed and manufactured according to the international advanced technology and our many years experience. This kind of horizonta lathe has a perfect structure performance with high rigidity, longer service life, higher efficiency, safe and stable function with easy operation.
Heavy duty horizontal Lathe Series are widely used for turning not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
This kind of heavy duty horizontal lathe can be also installed double cutting tool carriages, milling & boring device, and cooling device.
Curently the Maximum Diameter over Machine Bed can be 6000 mm. Max.Length between centers can be 120000 mm. Max.Weight of steel roll, cylinder, sahft can be 60T.
We are China Professional Heavy Duty Horizontal Lathe Manufacturer with 50 years experience, we can design and amanufacture all kinds of machine tools , lathe machines according to different customers' request with high quality but cheap price, because double win is our business principle and target. that is why we can obtain a lot of orders every year.
2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Horizontal lathe Machine
|CG61 series Heavy Duty horizontal Lathe|
|Guide rail Type||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails|
|Swing diameter over machine bed||mm||φ1600mm||φ2000mm||φ2500mm||φ3150mm||φ4000||φ5000|
|Swing diameter over cutting tool carriage||mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm||φ3500mm||φ4000|
|Guide rail width of machine bed||mm||1600mm||1800mm||2000mm||2000mm||2200mm||2500mm|
|4 jaws single action Chuck diameter||mm||φ1250mm||φ1600mm||φ2000mm||φ2700mm||φ3000mm||φ4000mm|
|Max.Length of work-piece||mm||8000mm||10000mm||10000mm||10000mm||15000mm||q20000mm|
|X Axis Stroke||mm||50-800mm||100-1000mm`||100-1250mm||150-1580mm||200-2000mm||200-2500mm|
|Z Axis Stroke||mm||2000-8000mm||2000-10000mm||2500-10000mm||2500-10000mm||3000-15000mm||3000-20000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||60*60mm||70*70mm||70*70mm||80*80mm||80*80mm||80*80mm|
|Tailstock spinlde diameter||mm||φ290mm||φ290mm||φ320mm||φ320mm||φ360mm||φ410mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Max.Torque of cutting tool carriage||KN||60KN||80KN||80KN||80KN||100KN||150KN|
|Max.Torque of Chuck||KN·m||25KN·m||35KN·m||43KN·m||55KN·m||90KN·m||233KN·m|
|Total Cutting Force||KN||65KN||90KN||110KN||120KN||160KN||210KN|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
3. Machine Accessories: Roll Rest, Center Support, Heavy Chuck, Chuck jaws, Follow Cutting tool, etc.
For more details, please feel free to contact us.
Thank you for attention.
Contact Person: Anna Sun
