Special designed Horizontal CNC Milling Drilling Turning Lathe Machine

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

Special designed Horizontal CNC Milling Drilling Turning Lathe Machine

Special designed Horizontal CNC Milling Drilling Turning Lathe Machine
Special designed Horizontal CNC Milling Drilling Turning Lathe Machine Special designed Horizontal CNC Milling Drilling Turning Lathe Machine Special designed Horizontal CNC Milling Drilling Turning Lathe Machine Special designed Horizontal CNC Milling Drilling Turning Lathe Machine Special designed Horizontal CNC Milling Drilling Turning Lathe Machine

Large Image :  Special designed Horizontal CNC Milling Drilling Turning Lathe Machine

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK61100 CK61160 CK61200 CK61250 CK61300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 4 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Function Of CNC Grinding Lathe: Turning , Grinding ,Drilling, Milling Functions CNC Control System: SIEMENS, FANUC, GSK, According To Customer Request
After-sale Service Of Roll Lathe: Engineers Are Available For Oversea Machine Installation And Commissioning Horizontal Lathe Accessories: Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc
High Light:

cnc milling lathe

,

drilling lathe machine

Specially designed CNC Milling Drilling turning Lathe Machine

1. Application of Horizontal Lathe Machine with milling and drilling functions: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.

Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.

Except turning process, this Horizontal Lathe with milling and drilling functions can also realize the drilling and milling process on the surface of sugar mill cylinder, shaft, pipe,etc

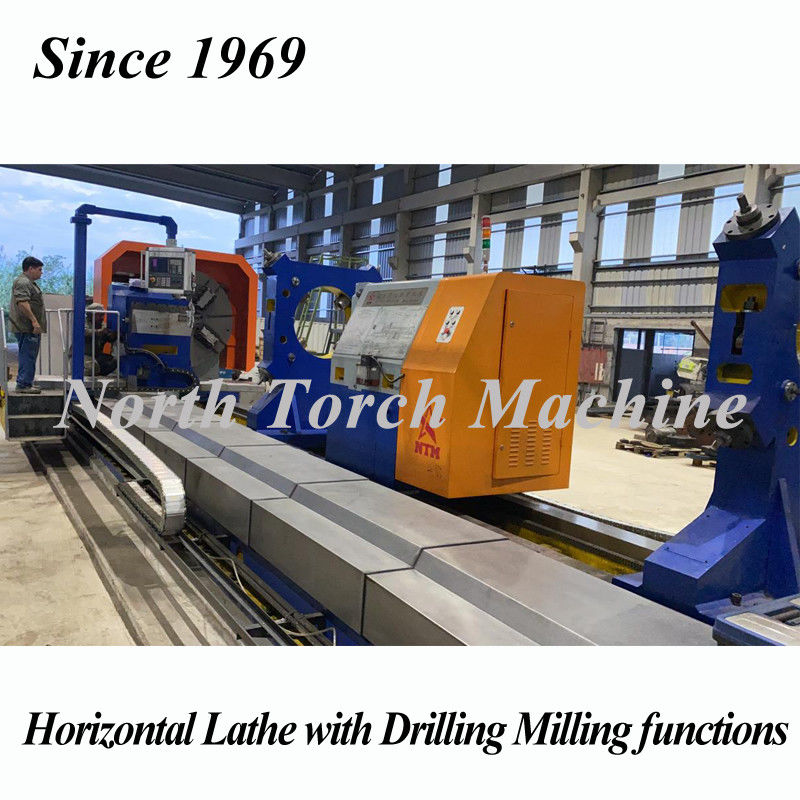

Special designed Horizontal CNC Milling Drilling Turning Lathe Machine 0

2. OUR ADVANTAGES & FEATURES about Horizontal CNC Milling Drilling Turning LATHE Machine:

More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
We have our own FOUNDRY, which can control and guarantee the castings quality very well.
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
Zero backlash with ball screw.
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Tailstock is electrical control with pressure display, which obtained our national patent.

Exported Countries :

Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc

3. Technical Parameters of Horizontal CNC lathe Machine with milling and drilling functions


                    CK61 series Heavy Duty horizontal Lathe with milling drilling function                       CNC Milling Drilling Turning Lathe
Name Unit CK61160 CK61200 CK61250 CK61315 CK61400 CK61500
Guide rail Type   Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails Rectangle 4 Guide Rails
Swing diameter over machine bed mm φ1600mm φ2000mm φ2500mm φ3150mm φ4000 φ5000
Swing diameter over cutting tool carriage mm φ1250mm φ1600mm φ2000mm φ2500mm φ3500mm φ4000
Guide rail width of machine bed mm 1600mm 1800mm 2000mm 2000mm 2200mm 2500mm
4 jaws single action Chuck diameter mm φ1250mm φ1600mm φ2000mm φ2700mm φ3000mm φ4000mm
Max.Length of work-piece mm 8000mm 10000mm 10000mm 10000mm 15000mm q20000mm
Work-piece Weight T 20T 25T 32T 40T 50T 63T
Spindle Diameter mm φ260mm φ300mm φ300mm φ320mm φ360mm φ400mm
Spindle Speed r/min 5-165r/min 2-165r/min 1-92r/min 1-92r/min 1-60r/min 0.5-80r/min
X Axis Stroke mm 50-800mm 100-1000mm` 100-1250mm 150-1580mm 200-2000mm 200-2500mm
Z Axis Stroke mm 2000-8000mm 2000-10000mm 2500-10000mm 2500-10000mm 3000-15000mm 3000-20000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
F Cutting tool blade size mm 60*60mm 70*70mm 70*70mm 80*80mm 80*80mm 80*80mm
Tailstock spinlde diameter mm φ290mm φ290mm φ320mm φ320mm φ360mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Max.Torque of cutting tool carriage KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 25KN·m 35KN·m 43KN·m 55KN·m 90KN·m 233KN·m
Total Cutting Force KN 65KN 90KN 110KN 120KN 160KN 210KN
Total Power KW 45KW 55KW 75KW 75KW 90KW 128KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions CM 920*265*230 920*320*360 1000*360*250 1100*400*370 1120*500*470 1150*550*515
Machine Weight T 30T 35T 45T 50T 55T 65T



Remarks: The above technical parameters of CNC Lathe is the standard specifications, we are also specialized in manufacutring customized lathe.



4. After-sale Service

1. Engineers are available for CNC Turning Milling Drilling lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.

For more details, please feel free to contact us.

Thank you for attention.


Special designed Horizontal CNC Milling Drilling Turning Lathe Machine 1


Tag: CNC Grinding Machine, CNC Grinding Turning Lathe, CNC Lathe with milling and drilling function, CNC LATHE
