heavy duty cnc lathe machine,
heavy duty horizontal lathe

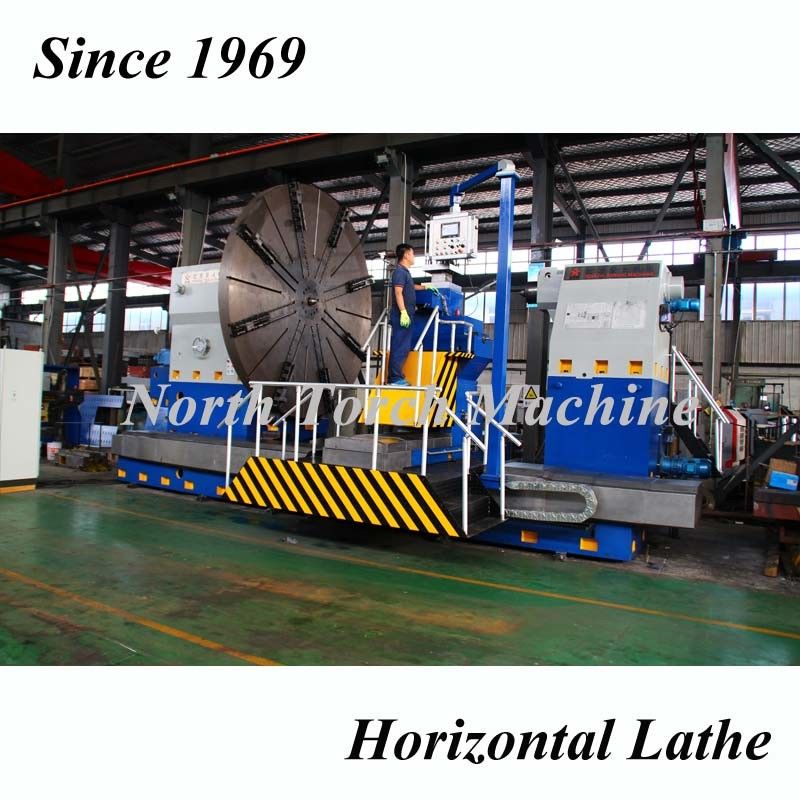

High Precision Heavy Horizontal Lathe Machine for Turning Hydroelectric Cylinder
1. Our products have been exported to Georgia, Russia, India, Iran, Panama,Colombia,Brazil, Indonesia, Australia, Mexico, America, France, Iran, Chile, Norway, Thailand, Pakistan, Argentina and etc. Due to the excellent and stable quality with bottom price and professional after-sale service make us separate from other competitors and win a good reputation from domestic and abroad customers.
With the concept of “diversity and pursuit of excellence”, we aim to offer superior products and service to our customers.
Application of Heavy Duty Lathe : This is a kind of heavy duty horizontal lathe machine, which can be also designed into steel roll turning lathe, lathe machine, CNC Milling lathe machine, CNC Drilling Lathe Machine, it is Professionally utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
We are China Professional Heavy Duty Horizontal Lathe Manufacturer with 50 years experience, we can design and amanufacture all kinds of machine tools , lathe machines according to different customers' request with high quality but cheap price, because double win is our business principle and target. that is why we can obtain a lot of orders every year.
2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:
More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
We have our own FOUNDRY, which can control and guarantee the castings quality very well.
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
Zero backlash with ball screw.
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Horizontal lathe Machine
|CG61 series Heavy Duty horizontal Lathe|
|Guide rail Type||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails|
|Swing diameter over machine bed||mm||φ1600mm||φ2000mm||φ2500mm||φ3150mm||φ4000||φ5000|
|Swing diameter over cutting tool carriage||mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm||φ3500mm||φ4000|
|Guide rail width of machine bed||mm||1600mm||1800mm||2000mm||2000mm||2200mm||2500mm|
|4 jaws single action Chuck diameter||mm||φ1250mm||φ1600mm||φ2000mm||φ2700mm||φ3000mm||φ4000mm|
|Max.Length of work-piece||mm||8000mm||10000mm||10000mm||10000mm||15000mm||q20000mm|
|X Axis Stroke||mm||50-800mm||100-1000mm`||100-1250mm||150-1580mm||200-2000mm||200-2500mm|
|Z Axis Stroke||mm||2000-8000mm||2000-10000mm||2500-10000mm||2500-10000mm||3000-15000mm||3000-20000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||60*60mm||70*70mm||70*70mm||80*80mm||80*80mm||80*80mm|
|Tailstock spinlde diameter||mm||φ290mm||φ290mm||φ320mm||φ320mm||φ360mm||φ410mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Max.Torque of cutting tool carriage||KN||60KN||80KN||80KN||80KN||100KN||150KN|
|Max.Torque of Chuck||KN·m||25KN·m||35KN·m||43KN·m||55KN·m||90KN·m||233KN·m|
|Total Cutting Force||KN||65KN||90KN||110KN||120KN||160KN||210KN|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
3. Machine Accessories: Roll Rest, Center Support, Heavy Chuck, Chuck jaws, Follow Cutting tool, etc.
For more details, please feel free to contact us.
Thank you for attention.
Tag: Heavy Duty Horizontal Lathe, Cylinder Turning Lathe, CNC Milling Drilling Lathe
Contact Person: Anna Sun
