| Pipe Threading Lathe Function: | Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc | Spindle Bore: | 100 Mm 190 Mm 220 Mm 250 Mm 300 Mm 380 Mm 360 Mm 500 Mm |
|---|---|---|---|
| Max.Length Of Cylinder, Shaft: | 12000 Mm | CNC Control System: | SIEMENS, FANUC, GSK, According To Customer Request |
| Voltage: | 380V, 440V, 415V, 220V, Etc | Weight Of Machining Part: | 6T 15T 32T 45T 55T |
| After-sale Service Of Roll Lathe: | Engineers Are Available For Oversea Machine Installation And Commissioning | Horizontal Lathe Accessories: | Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc |
| High Light: | pipe threading lathe machine,automatic turning machine |
||

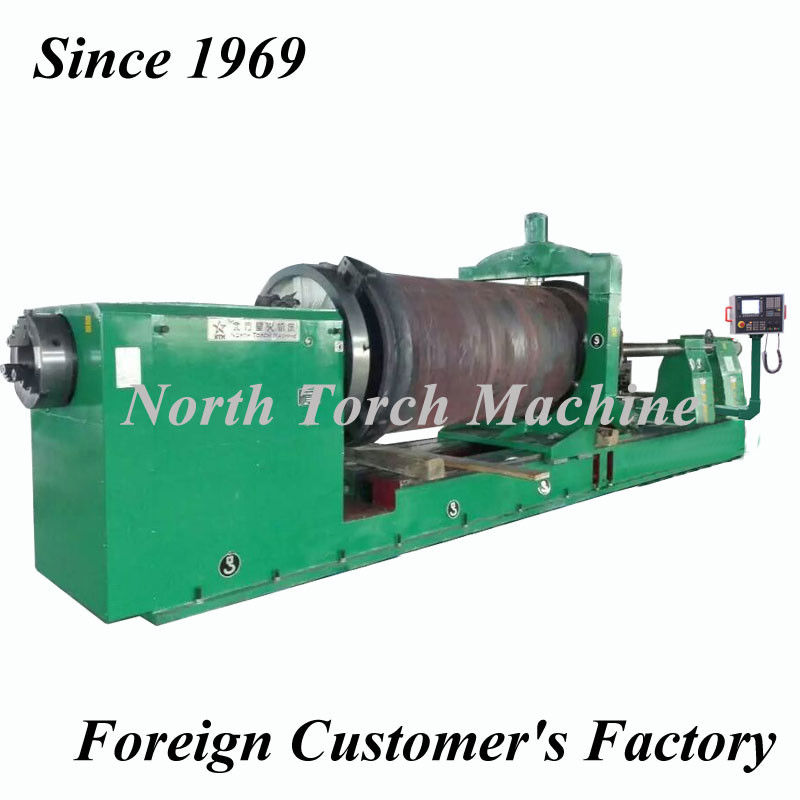

Large Szie CNC Pipe Threading Lathe with 355 mm spindle bore
1. Application of Pipe Threading Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
2. OUR ADVANTAGES & FEATURES about Pipe Threading LATHE Machine:
We have our own FOUNDRY, which can control and guarantee the castings quality very well.
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
High torque capacity of headstock of lathe machine
Zero backlash with ball screw.
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Tailstock is electrical control with pressure display, which obtained our national patent.
The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Horizontal Pipe Threading lathe Machine
| CK61 series Pipe Threading CNC Lathe | |||||||
| Name | Unit | CK6180 | CK61125 | CK61160 | CK61200 | CK61250 | CK61300 |
| Guide rail Type | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | |
| Swing diameter over machine bed | mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 | φ3000 |
| Swing diameter over cutting tool carriage | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 |
| Guide rail width of machine bed | mm | 600mm | 755mm | 1000mm | 1000mm | 1100mm | 1100mm |
| 4 jaws single action Chuck diameter | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Max.Length of work-piece | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
| Work-piece Weight | T | 2T | 5T | 10T | 12T | 15T | 15T |
| Spindle Diameter | mm | φ190mm | φ215mm | φ250mm | φ278mm | φ300mm | φ380-500mm |
| Spindle Speed | r/min | 10-300r/min | 5-134r/min | 5-106r/min | 5-106r/min | 3-87r/min | 3-87r/min |
| X Axis Stroke | mm | 400mm | 600mm` | 800mm | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
| X axis rapid speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Z axis rapid speed | mm/min | 3000mm/min | 3000mm/min | 3000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| F Cutting tool blade size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Tailstock spinlde diameter | mm | φ150mm | φ180mm | φ240mm | φ240mm | φ280mm | φ280mm |
| Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Tailstock moving method | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | |
| Tailstock Tip | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | |
| Total Power | KW | 11KW | 15KW | 18.5KW | 22KW | 30KW | 37KW |
| Lubrication Motor Power | KW | 0.37KW | 0.55KW | 0.56KW | 0.57KW | 0.58KW | 0.59KW |
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughtness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
Engineers are available for Pipe Threading lathe machine installation , commissioning and training at the user factory.
Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
The quality warranty of Pipe Turning Threading Lathe,Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
We are China Professional Manufacture for Horizontal Lathe Machine, Heavy duty lathe, Roll turning Lathe, Pipe Threading Lathe, CNC Lathe, Conventional Lathe, Large CNC Lathe with drilling milling functions, CNC Grinding Machine and Special designed lathe, etc
We have our own foundry with professional inspection devices, such as Hardening Furnace, straightness tester, stifness detection system, ultrasonic fault detctor, etc. We can contorl the castings quality very well to guarantee a high precision, rigidity and stability of lathe machine.
For more details, please feel free to contact us.
