Payment & Shipping Terms:
|Application Of CNC Lathe:||Turning Flange,Aluminum Mold, Cylinders, Shaft, Propeller, Pipe, Etc||Max.Diameter Of Cylinder,shaft, Pipe:||630 Mm 1000 Mm 1250 Mm 1600 Mm 2000 Mm|
|Max.Length Of Cylinder, Shaft:||2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm||CNC Control System:||SIEMENS, FANUC, GSK,Manual Type According To Customer Request|
|Voltage Of Lathe Machine:||380V, 440V, 415V, 220V, Etc||Weight Of Machining Part:||6T 15T 32T 45T 55T|
|After-sale Service Of Roll Lathe:||Engineers Are Available For Oversea Machine Installation And Commissioning||Horizontal Lathe Accessories:||Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc|
cnc turret lathe machine,
metal lathe milling machine

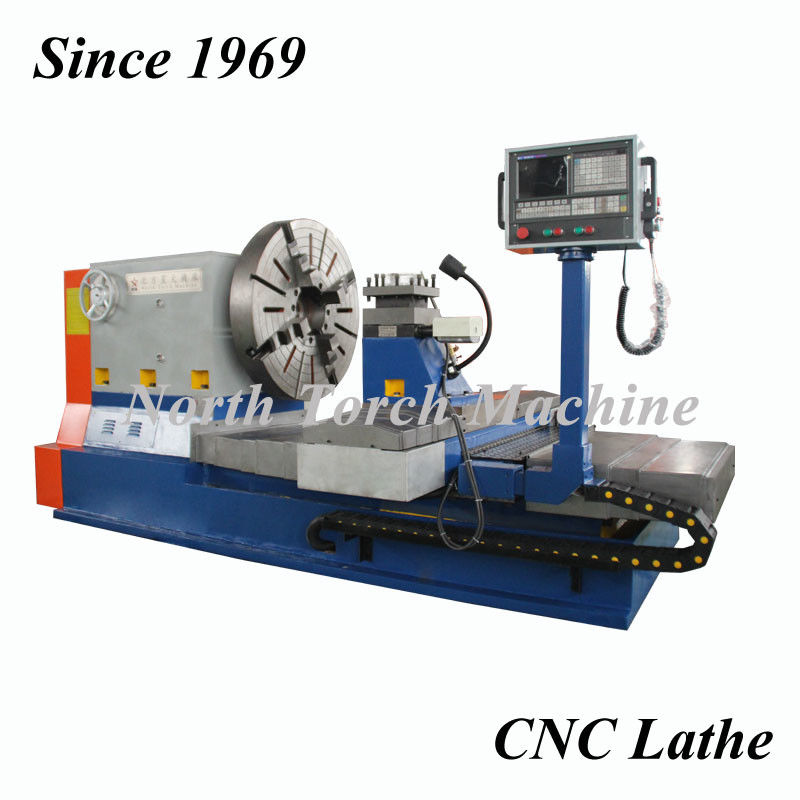

Metal Horizontal CNC Lathe for turning Facing Flange, Aluminum Mold
1. Application of Horizontal Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.
The company has passed ISO9001 international quality management system certification, CE Certificate, EAC Certificate, BV Certificate ,etc and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufactured the large floor-type lathe series.
2. OUR ADVANTAGES & FEATURES OF CNC LATHE:
More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
We have our own FOUNDRY, which can control and guarantee the castings quality very well.
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
High torque capacity of headstock of lathe machine
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of CNC Lathe
|CK61 series horizontal CNC Lathe-LIGHT TYPE|
|Guide rail Type||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails|
|Swing diameter over machine bed||mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500||φ3000|
|Swing diameter over cutting tool carriage||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500|
|Guide rail width of machine bed||mm||600mm||755mm||1000mm||1000mm||1100mm||1100mm|
|4 jaws single action Chuck diameter||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm|
|Max.Length of work-piece||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X Axis Stroke||mm||400mm||600mm`||800mm||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Tailstock spinlde diameter||mm||φ150mm||φ180mm||φ240mm||φ240mm||φ280mm||φ280mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
Contact Person: Anna Sun
