|Application Of CNC Lathe:||Turning Flange,Aluminum Mold, Cylinders, Shaft, Propeller, Pipe, Etc||Max.Diameter Of Cylinder,shaft, Pipe:||630 Mm 1000 Mm 1250 Mm 1600 Mm 2000 Mm|
|Max.Length Of Cylinder, Shaft:||2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm||CNC Control System:||SIEMENS, FANUC, GSK,Manual Type According To Customer Request|
|Voltage:||380V, 440V, 415V, 220V, Etc||Weight Of Machining Part:||6T 15T 32T 45T 55T|
|After-sale Service Of Roll Lathe:||Engineers Are Available For Oversea Machine Installation And Commissioning||Horizontal Lathe Accessories:||Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc|
cnc turret lathe machine,
high precision lathe machine

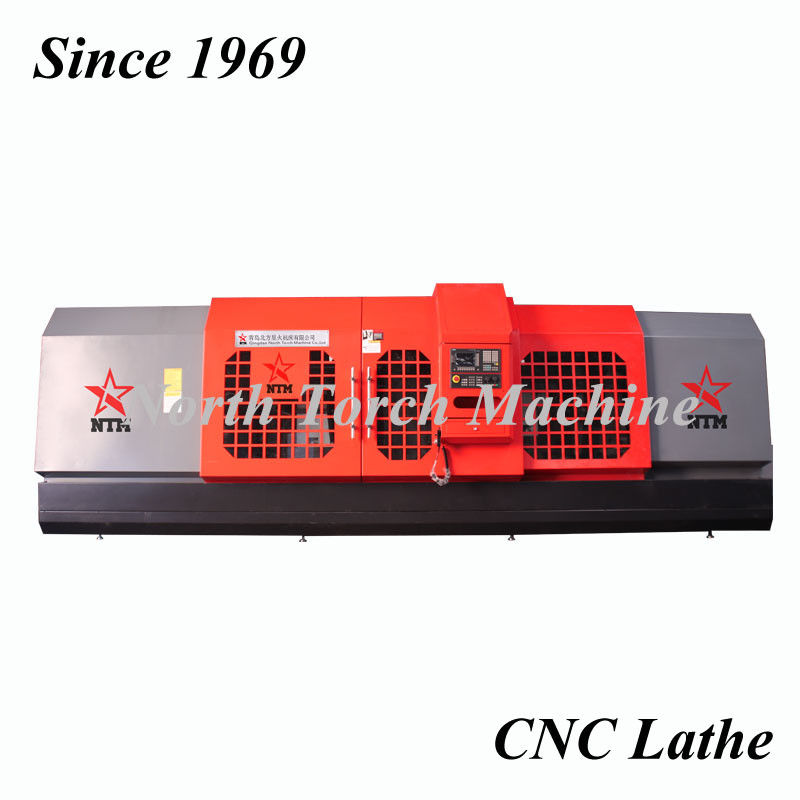

CNC Lathe for turning Flange, Aluminum Mold,sugar cylinder, shaft, pipe,propeller, etc
1. Qingdao North Torch Machine Tool Co.,Ltd was established in the 1969. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.
Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
Application of Horizontal Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of CNC Lathe
|CK61 series horizontal Lathe-LIGHT TYPE|
|Guide rail Type||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails|
|Swing diameter over machine bed||mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500||φ3000|
|Swing diameter over cutting tool carriage||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500|
|Guide rail width of machine bed||mm||600mm||755mm||1000mm||1000mm||1100mm||1100mm|
|4 jaws single action Chuck diameter||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm|
|Max.Length of work-piece||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X Axis Stroke||mm||400mm||600mm`||800mm||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Tailstock spinlde diameter||mm||φ150mm||φ180mm||φ240mm||φ240mm||φ280mm||φ280mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
Contact Person: Anna Sun
