|Application Of Horizontal Lathe:||Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc||Max.Diameter Of Cylinder,shaft, Pipe:||630 Mm 1000 Mm 1250 Mm 1600 Mm 2000 Mm|
|Max.Length Of Cylinder, Shaft:||2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm||CNC Control System:||SIEMENS, FANUC, GSK, According To Customer Request|
|Voltage:||380V, 440V, 415V, 220V, Etc||Weight Of Machining Part:||6T 15T 32T 45T 55T|
|After-sale Service Of Roll Lathe:||Engineers Are Available For Oversea Machine Installation And Commissioning||Horizontal Lathe Accessories:||Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc|
computer lathe machine,
horizontal turret lathe

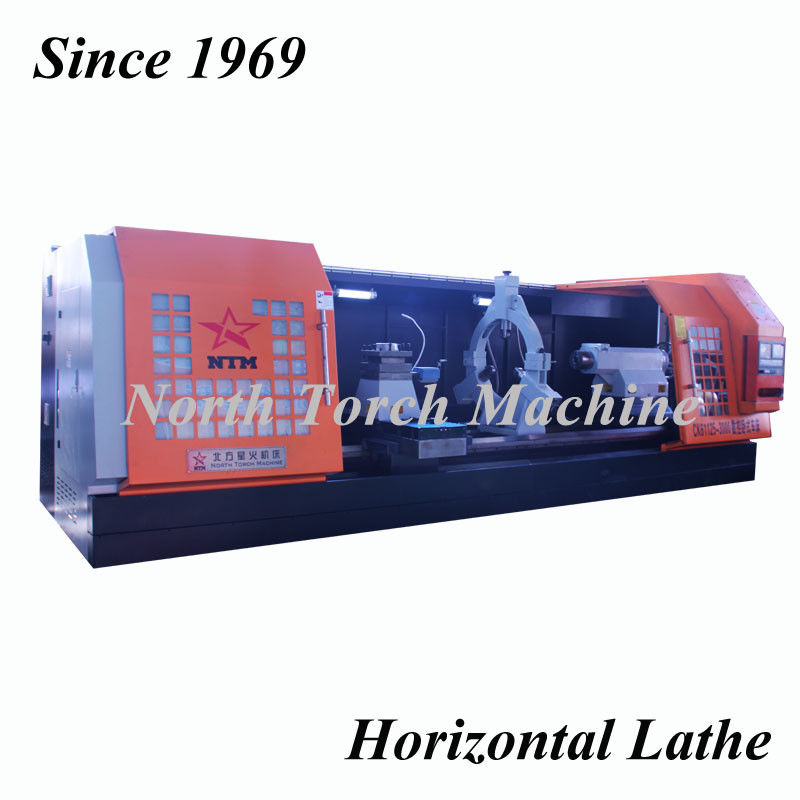

China First Horizontal Lathe for turning drilling sugar cylinder, shaft, pipe,propeller, etc
1. Application of Horizontal Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
High torque capacity of headstock of lathe machine
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Tailstock is electrical control with pressure display, which obtained our national patent.
The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Horizontal lathe Machine
|CK61 series horizontal Lathe-LIGHT TYPE|
|Guide rail Type||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails|
|Swing diameter over machine bed||mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500||φ3000|
|Swing diameter over cutting tool carriage||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500|
|Guide rail width of machine bed||mm||600mm||755mm||1000mm||1000mm||1100mm||1100mm|
|4 jaws single action Chuck diameter||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm|
|Max.Length of work-piece||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X Axis Stroke||mm||400mm||600mm`||800mm||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Tailstock spinlde diameter||mm||φ150mm||φ180mm||φ240mm||φ240mm||φ280mm||φ280mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.
We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.
For more details, please feel free to contact us.
