|Application Of Facing Lathe Machine:||Machining Flange, Tyre Mold, Propeller, Bearing,||Machining Process Of Lathe Machine:||End Facing, Surface, Tapper, Ex-circle, Threading, Inner Hole Etc|
|Accessories:||Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc||Machine Tool:||4 Positions Automatic Electrical Rotation Cutting Tool|
|Chip Removal System:||Chain Type Automatic Chip Removal System||Voltage:||Customer's Requirement,220V/380V,400V,440V|
gear head lathe machine,
steel lathe machine
Base adopts triangular guide design
High performance with low cost
We have our own foundry which can control the quality strictly.
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.
Lathe Machine For Turning Flange, Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.
Horizontal Lathe Machine Mainly used for large ground lathe cutting big, medium-sized dish ,roller kind of workpiece,such as different kind of
flange, valves, sealing head,cans board, moter, such as tyre moulds cover parts . This machine widely used in energy and transportation,
petroleum chemical industry, mining railway and automobile manufacturing machinery.

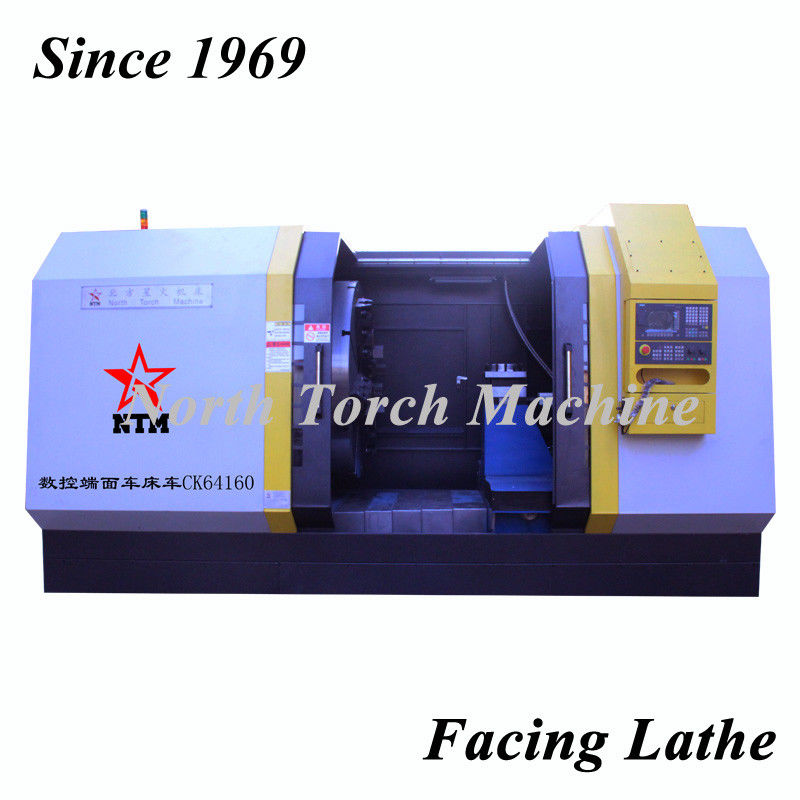

1. Horizontal Lathe Machine is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low noise;
4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.
The base guide of Facing lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parametes of Facing In Lathe
|Specifications of Facing in Lathe|
|Swing Diameter over Machine Bed||mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm||φ3000|
|Chuck-jaw seat length||mm||Embedded||Embedded||500mm||500mm||500mm|
|Spindle Speed||r/min||10-200 r/min||4-160 r/min||4-160 r/min||3-106 r/min||3-106 r/min|
|X Axis Stroke||mm||625mm||800mm`||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||500mm||750mm||1000mm||1000mm||1000mm|
|X Axis Rapid Feed Speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min|
|Z Axis Rapid Feed Speed||mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min|
|Cutting Tool Carriage Size||240*240||280*280||300*300||300*300||300*300|
|Cutting Tool Shank Size||mm||32*32mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Feed Control||Servo Motor||Servo Motor||Servo Motor||Servo Motor||Servo Motor|
|Main Motor Power||KW||15KW||18.5KW||18.5KW||22KW||37KW|
|Feed Motor of Z Axis||KW||2.3KW||2.3KW||2.3KW||2.3KW||2.3KW|
|Feed Motor of X Axis||KW||2.3KW||5.5KW||5.5KW||5.5KW||5.5KW|
|Lubrication Motor Power||KW||0.37KW||0.37KW||0.37KW||0.55KW||0.55KW|
3. After-sale Service
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
