|Max. Swing Diameter Over Machine Bed:||1250 Mm||Max.Diameter Of Work-piece:||850 Mm|
|Grinding Wheel Diameter:||800 Mm||Max.Length Of Work-piece:||1500 Mm|

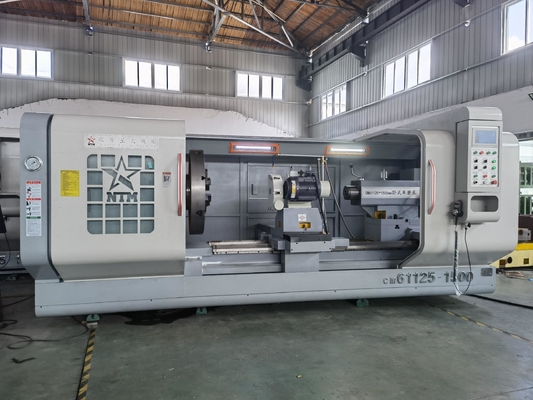

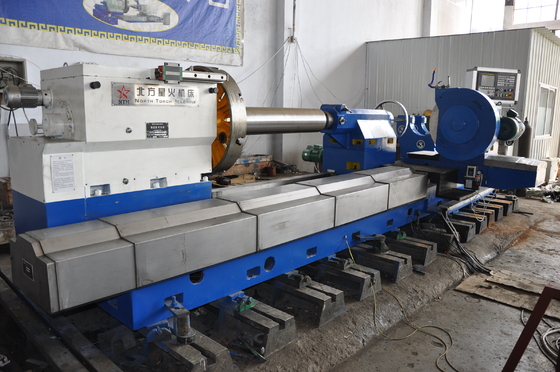

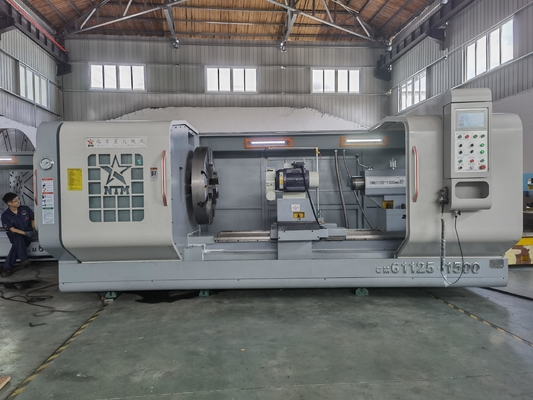

Horizontal CNC Grinding Lathe Machine,
800mm Wheel CNC Grinding Lathe Machine,
Grinding Shaft CNC Lathe Machine
For Turning and Grinding Casting Roll, Shaft, pipe, Cylinders, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbin
Our advantages in making heavy duty horizontal lathe, CNC Lathe with grinding wheel.
Our company was established in 1969 as a military enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.

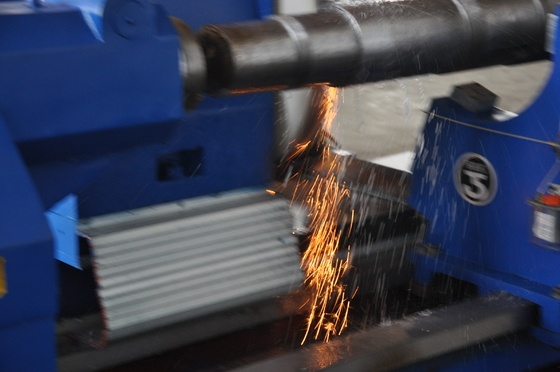

This series lathe machine has both turning and Grinding functions, it can be called CNC machining center also. It can help you save time and improve efficiency for the part which needs to be turning and Grinding like marine/vessel propeller shaft,
1). Reasonable Structure and excellent performance.
2.). High Rigidity, Stability and Precision Maintenance
3.) Permanent After-sale Service to ensure maximum customer's profitability.
4.) Engineers are available for over-sea installation,commissioning and Training the operators in customer's factory.
5.) After-sale service of heavy duty horizontal lathe : All components for machine are freely provided within 3 days by Air to prevent customer's production suspended and minimum customer 's loss.
6.) The Main machine components are strictly inspected by the advanced CMM to ensure the excellent quality and high precision.
The following picture is the main part that are inspected .
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: This series CNC horizontal lathe with grinding wheel can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and milling functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.
2. Technical Parameters of horizontal heavy duty lathe with grinding wheel
|Max. Swing Over Bed||mm||1000||1250||1600||2000||2500||3000|
|Max. Swing Over the skateboard||mm||650||800||1200||1650||1800||2800|
|Max. Weight of Work-piece||T||10||15||20||20||20||40|
|Max. Length of Work-piece||mm||3000-12000|
|Gears of Spindle Speed||/||Infinitely Variable Speed/step-less speed|
|Range of Spindle Speed||r/Min||10-300||10-200||10-160||4-80||4-80||1.6-63|
|X,Z-Axis Feed Range||mm/Min||0-3000|
|Main Driving Motor||Kw||11||22||45||75||75||75|
|Cutting Force (Carriage)||Kn||4||6||20||40||40||60|
|Sleeve Diameter of Tailstock||mm||180||180||290||290||290||480|
|Spindle Diameter of tailstock||mm||125||125||160||160||160||240|
1. The above 6 models of Heavy Duty Horizontal CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks
2. This series heavy duty horizontal CNC Lathe Machine have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. Package and Shipment of Large Horizontal Lathe Machine with grinding wheel
Anti-rust Oil /Anti-Corrosive Oil for the whole machine. Wrapping protective film.
Wooden Box package, vacumm package is also available per customer's special request.
4. After-sale Service& Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
