|Application Of Horizontal Lathe:||Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc||CNC Control System:||SIEMENS, FANUC, GSK, According To Customer Request|
|Voltage:||380V, 440V, 415V, 220V, Etc||Weight Of Machining Part:||6T 15T 32T 45T 55T|
|After-sale Service Of Roll Lathe:||Engineers Are Available For Oversea Machine Installation And Commissioning||Horizontal Lathe Accessories:||Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc|
computer lathe machine,
horizontal turret lathe

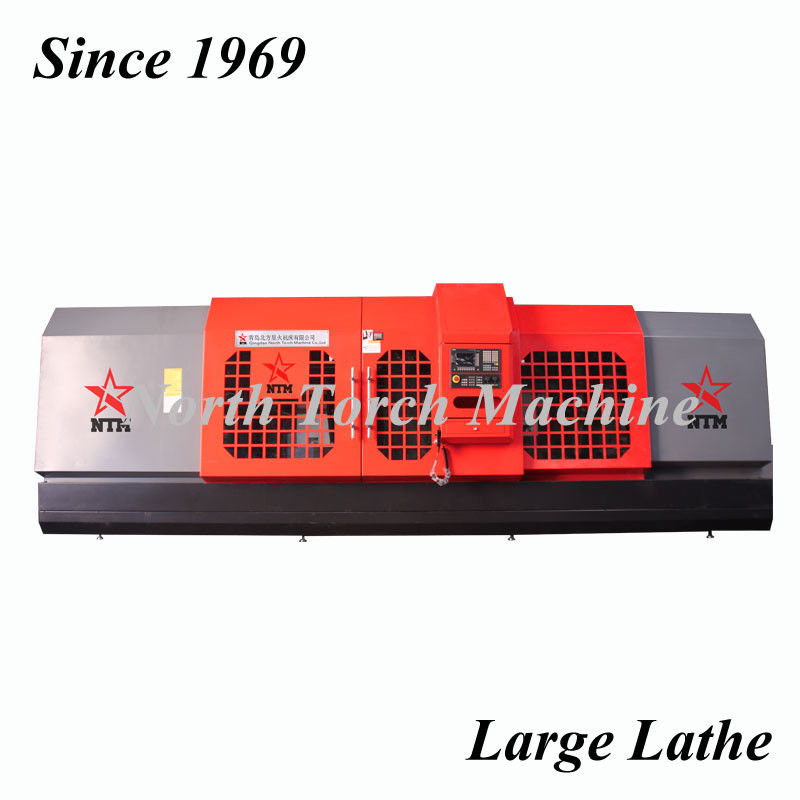

Large Heavy Duty Horizontal CNC Lathe Machine for Turning roll cylinder
1. Application of Horizontal Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Heavy Duty Horizontal lathe Machine
|CG61 series Heavy Duty horizontal Lathe|
|Guide rail Type||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails||Rectangle 4 Guide Rails|
|Swing diameter over machine bed||mm||φ1600mm||φ2000mm||φ2500mm||φ3150mm||φ4000||φ5000|
|Swing diameter over cutting tool carriage||mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm||φ3500mm||φ4000|
|Guide rail width of machine bed||mm||1600mm||1800mm||2000mm||2000mm||2200mm||2500mm|
|4 jaws single action Chuck diameter||mm||φ1250mm||φ1600mm||φ2000mm||φ2700mm||φ3000mm||φ4000mm|
|Max.Length of work-piece||mm||8000mm||10000mm||10000mm||10000mm||15000mm||q20000mm|
|X Axis Stroke||mm||50-800mm||100-1000mm`||100-1250mm||150-1580mm||200-2000mm||200-2500mm|
|Z Axis Stroke||mm||2000-8000mm||2000-10000mm||2500-10000mm||2500-10000mm||3000-15000mm||3000-20000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||60*60mm||70*70mm||70*70mm||80*80mm||80*80mm||80*80mm|
|Tailstock spinlde diameter||mm||φ290mm||φ290mm||φ320mm||φ320mm||φ360mm||φ410mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Max.Torque of cutting tool carriage||KN||60KN||80KN||80KN||80KN||100KN||150KN|
|Max.Torque of Chuck||KN·m||25KN·m||35KN·m||43KN·m||55KN·m||90KN·m||233KN·m|
|Total Cutting Force||KN||65KN||90KN||110KN||120KN||160KN||210KN|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
For more details, please feel free to contact us.
We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.
